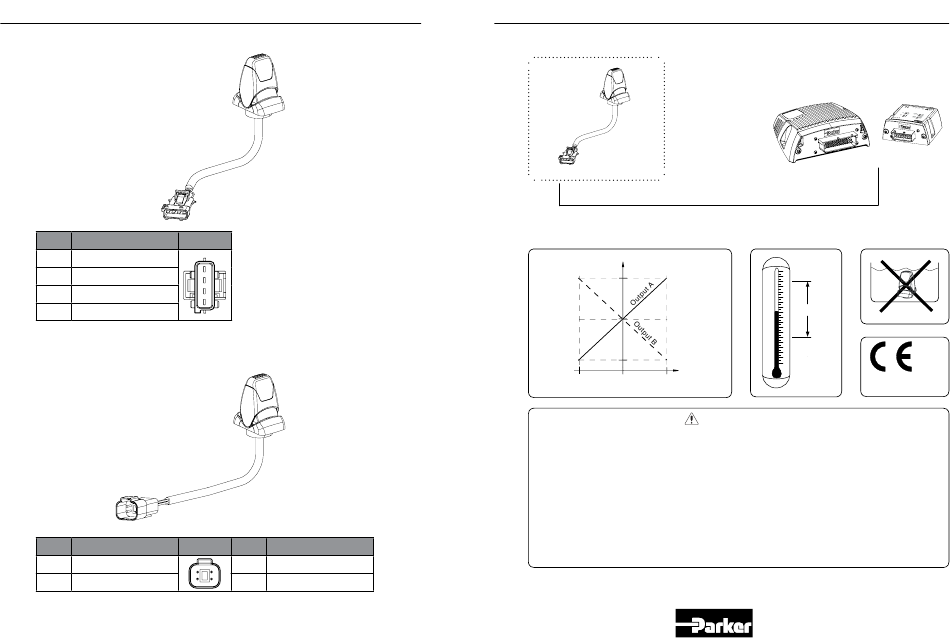

Parker IQAN-LST Installation

Wiring diagram
Pin # Signal/Function
1 GND
2 POWER (+5Vdc)
3 OUT-A (primary)
4 OUT-B (secondary)
Mating connector kit: 5031097
Pin # Signal/Function
4 OUT-B (secondary)
3 OUT-A (primary)
Mating connector kit: 5031113
-S (Saab AMP/Tyco)
C1
-D (Deutsch)
C1 Pin # Signal/Function
1 GND
2 POWER (+5Vdc)
IQAN-LST
Dual sensor output
VDC out
90% Vs
50% Vs
10% Vs
Deflection
-100% Neutral 100%
position
