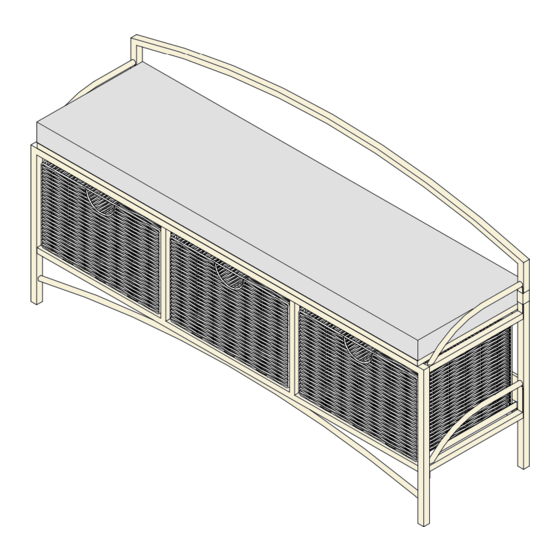

- Page 1 BC487100TX Javu Storage Bench For assistance with assembly contact: Assembly Instructions Southern Enterprises Inc. Customer Service 1-800-633-5096 service@seidal.com www.seifurniturestore.com Page 1...
-
Page 2: Parts List
Javu Storage Bench Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or a blanket. Check that you have all parts indicated. Call customer service if any hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures. - Page 3 6 of 1 Allen Wrench Wood Screw: 4.0×1/2” L For replacement parts or questions, please call SEI Care and Cleaning Instructions: Before using, wipe with a clean, dry cloth. customer service at 1-800-633-5096 Periodically apply furniture wax to renew the finish. Avoid rubbing or scratching the surface with rough or abrasive objects.
- Page 4 Javu Storage Bench Assembly Instructions Attach 4PCS Side Frame (C) to Back Frame (A): Insert 8pcs Long Bolt (1) through holes on Back Frame (A). Attach Side Frame (C) to Back Frame (A), tighten using Allen Wrench (5). Figure 1 Attach Metal Tube (D) to Back Frame (A): Insert 4pcs Short Bolt (3) through...
- Page 5 Attach 1 Metal Shelf Frame (E) to Back Frame (A): Insert 2pcs Bolt (2) through holes on Shelf Frame (E). Attach Shelf Frame (E) to Back Frame (A), tighten using Allen Wrench (5). Figure 3 Attach 2 Metal Shelf Frame (E) to Back Frame (A): Insert 2pcs Bolt (2) through holes on Shelf Frame (E).
- Page 6 Place pre-assembled unit from Figure 5 onto the Front Frame (B): Insert 4pcs Short Bolt (3) through holes on Side Frame (C). Attach Side Frame (C) to Front Frame (B), tighten using Allen Wrench (5). Figure 6 Insert 4pcs Short Bolt (3) through holes on Metal Tubes (D).
- Page 7 Insert 6pcs Bolt (2) through holes on Shelf Frame (E). Attach Shelf Frame (E) to Front Frame (B), tighten using Allen Wrench (5). Figure 8 Slowly push the Wood Shelf Panel (F) into pre-assembled unit from Figure 8 by hand. Figure 9 Page 7...
- Page 8 Insert 6pcs Wood Screw (4) through holes on both Frames (A/B) to attach Wood Shelf Panel (K), using No.2 Phillips Screwdriver (Not Included). Figure 10 Slide one side of Basket Bottom Panel (J) all the way to the bottom of Wicker Basket (G).
- Page 9 Place pre-assembled baskets onto the Metal Shelf Frame (E). Figure 13 Place Seat Cushion (G) onto the Wood Shelf Panel (F). Figure 14 Page 9...
- Page 10 Wrap tabs of Seat Cushion (G) around Back Frame (A). Figure 15 Now your Javu Storage Bench is ready to use Figure 16 Page 10...
-
Page 11: Parts Replacement Form
Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
