STYLE NO.:

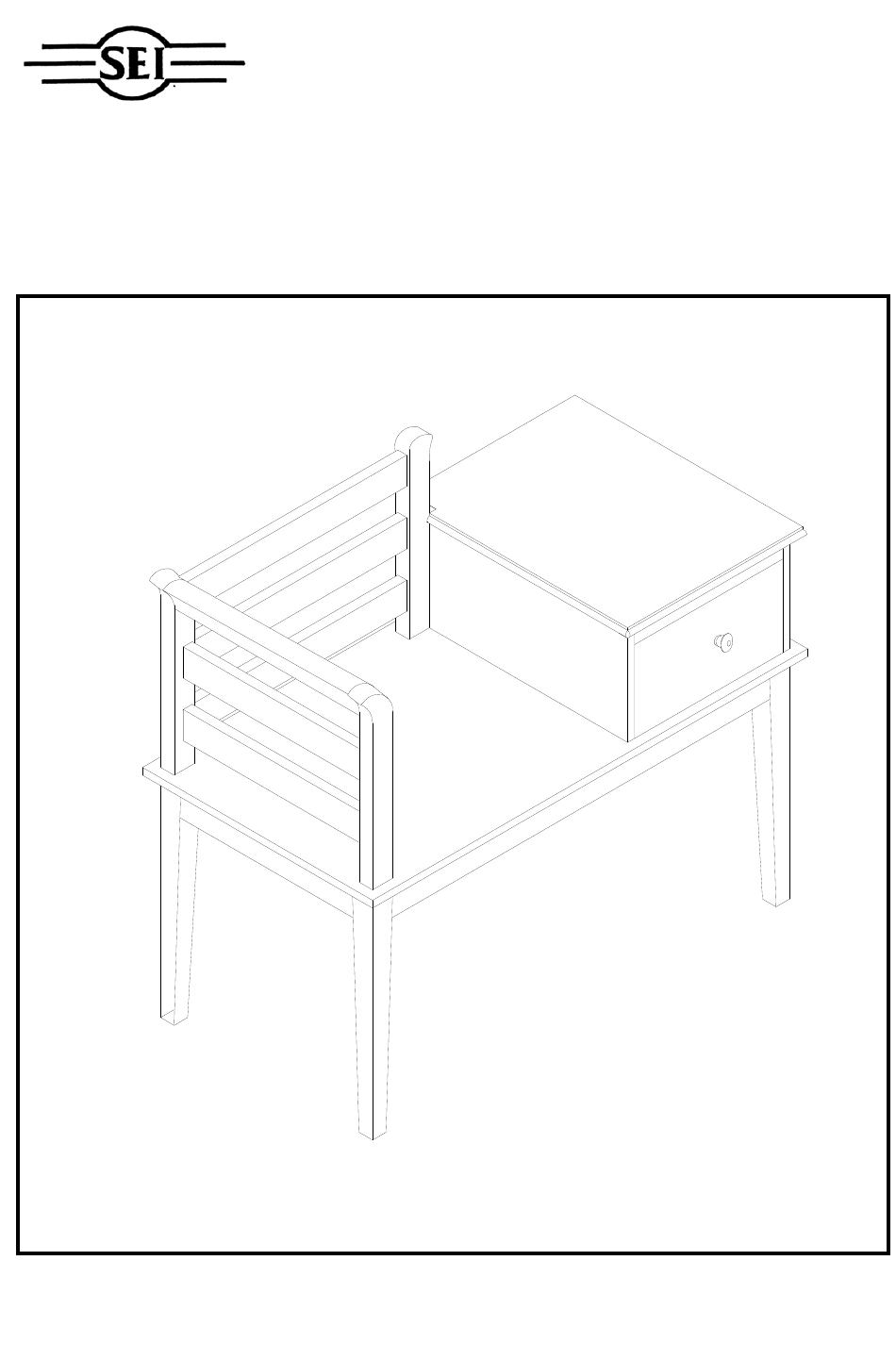

BC922200TX- White Cottage Gossip Bench w/o cushion
BC932200TX- Black Cottage Gossip Bench w/o cushion
SOUTHERN ENTERPRISES INC.
NOTE.... This product has been engineered for
easy assembly and constructed for durability.
Please take time to read and follow assembly instructions.
Assembly Instruction
Page 1 of 7
1
Advertisement
Related Manuals for SEI BC922200TX
Summary of Contents for SEI BC922200TX
- Page 1 STYLE NO.: BC922200TX- White Cottage Gossip Bench w/o cushion BC932200TX- Black Cottage Gossip Bench w/o cushion SOUTHERN ENTERPRISES INC. NOTE…. This product has been engineered for easy assembly and constructed for durability. Please take time to read and follow assembly instructions.
- Page 2 PARTS AND HARDWARE LIST Description Q'ty Sketch Description Q'ty Sketch Seat Panel Right Bottom Glide Back Frame Left Bottom Glider Side Frame Right Top Glider Left Top Glider Long Left Side Panel Blot(1/4”*1-1/2”L) Short Right Side Panel Bolt(1/4”*1-1/4”L) Front Cross Bar Washer Wood Top Panel...
- Page 3 STEP 2 Attach the well-assembled unit to the Seat Panel (A) with 3pcs Short Bolts (6) ,tighten them with Allen Wrench (15) as figure shown. STEP 3 Attach the Legs (D)to the well-assembled unit with 8pcs Washers(7) , 8pcs Long Bolts (5) ,tighten them with Allen Wrench (15) as figure shown.
- Page 4 STEP 4 Connect Cross Bar (G), Left/Right Side Panel (E/F) with 6pcs Wood Dowels (8),4pcs Cam Bolts(9) and 4pcs Cam locks (10) ,then tighten them with screwdriver (not included in hardware list) as figure shown. STEP 5 Lock up the Left Side Panel (E) and Back Frame (B) by using 2pcs Short Bolts (6) , then tighten them with Allen Wrench (11) as figure shown.
- Page 5 STEP 6 Insert the Bottom Frame (I) to the grooves that in the Left and Right Side Panels (E F), then attach Left/Right Bottom Gliders (1 2) to the Left and Right Side Panel (E F) with 6pcs Short Wood Screws (12) ,tighten them with screwdriver(not include in hardware list) as figure shown.
- Page 6 STEP 8 Assemble the drawer (J/M/N/K/L) by using 8pcs Long Wood Screws (11), tighten the screws with screwdriver (not included in hardware list) as figure shown. STEP 9 Attached the Right/Left Top Gliders(3＆4) to the assembled drawer with 6pcs Short Wood Screws (12), tighten them with screwdriver(not included in hardware list) as figure shown.
- Page 7 WE WILL SHIP PARTS IF AVAILABLE.THIS IS NOT A WARRANTY. PARTS REPLACEMENT FORM STYLE NO. BC922200TX- White Cottage Gossip Bench w/o cushion BC932200TX- Black Cottage Gossip Bench w/o cushion Customer Name PARTS...
- Page 8 Page 7 of 7...
