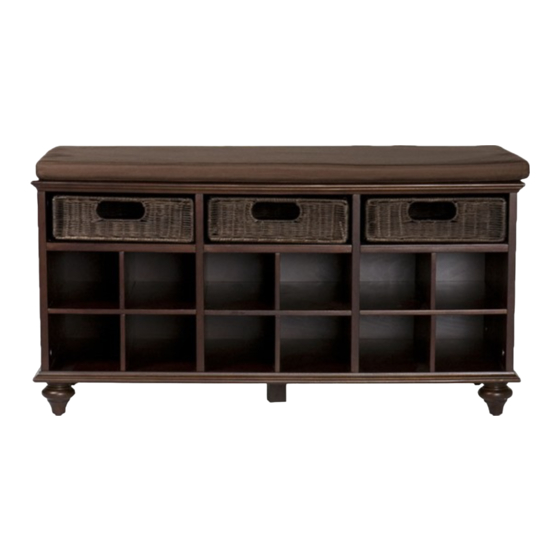

- Page 1 ITEM NO. BC4013R0TX “CHELMSFORD” SHOE BENCH ESPRESSO FINISH For assistance with assembly contact: Southern Enterprises, Inc. Assembly Instructions Customer Service 1-800-633-5096 service@seidal.com wwww.seidal.com Max seat load: 250 lb.
- Page 2 “CHELMSFORD” SHOE BENCH Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 3 “CHELMSFORD” SHOE BENCH Parts List Please review all parts and hardware before disposing of any packaging. Call Customer Service if missing hardware. Do not return to store/retailer. Using a screw that is too long will cause damage. Before beginning assembly, separate each type of screw.
- Page 4 “CHELMSFORD” SHOE BENCH Assembly Instructions Assembly Instructions: Wood may scratch easily, Be careful when assembling. Do not scratch. Step 1 Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated front page.
- Page 5 “CHELMSFORD” SHOE BENCH Assembly Instructions Connect the Bottom panel (G), with 12pcs Wood Dowels(3),4pcs Cam Bolts (1) and Cam Locks (2). Figure 4 Attach the Legs(I) and Center Support Leg (J) to the Bottom Frame (G). Figure 5 Connect the Top Panel (H) to the assembled unit with 6pcs Wood Dowels (3),4pcs Cam Bolts (1) and 4pcs Cam Locks (2).
- Page 6 “CHELMSFORD” SHOE BENCH Connect the Back Panel (N) to the Assembly Instructions assembled unit with 20pcs Wood Screws (4). Figure 7 Attach the basket bottom (L) to basket frame (K) using 4 screws (5) Figure 8 Cover cam-locks (4) with cotton mats (6) provided.
- Page 7 We'd love to hear from you! Email us photos of our products in your home at sei@seidal.com and we might feature it on our site or use it to model one of our inspirational photos. “PARTS WILL BE SENT IF AVAILABLE FROM SEI” “THIS IS NOT A WARRANTY” Parts Replacement Form Customer Information...
