SEI BC402800TX Assembly Instructions Manual

Larimore drawer/basket storage bench - black
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
BC402800TX
Larimore Drawer/Basket
Storage Bench - Black
Assembly Instructions
PO#:
Page 1

Advertisement

loading
Need help?

Need help?

Do you have a question about the BC402800TX and is the answer not in the manual?

Questions and answers

Related Manuals for SEI BC402800TX

Summary of Contents for SEI BC402800TX

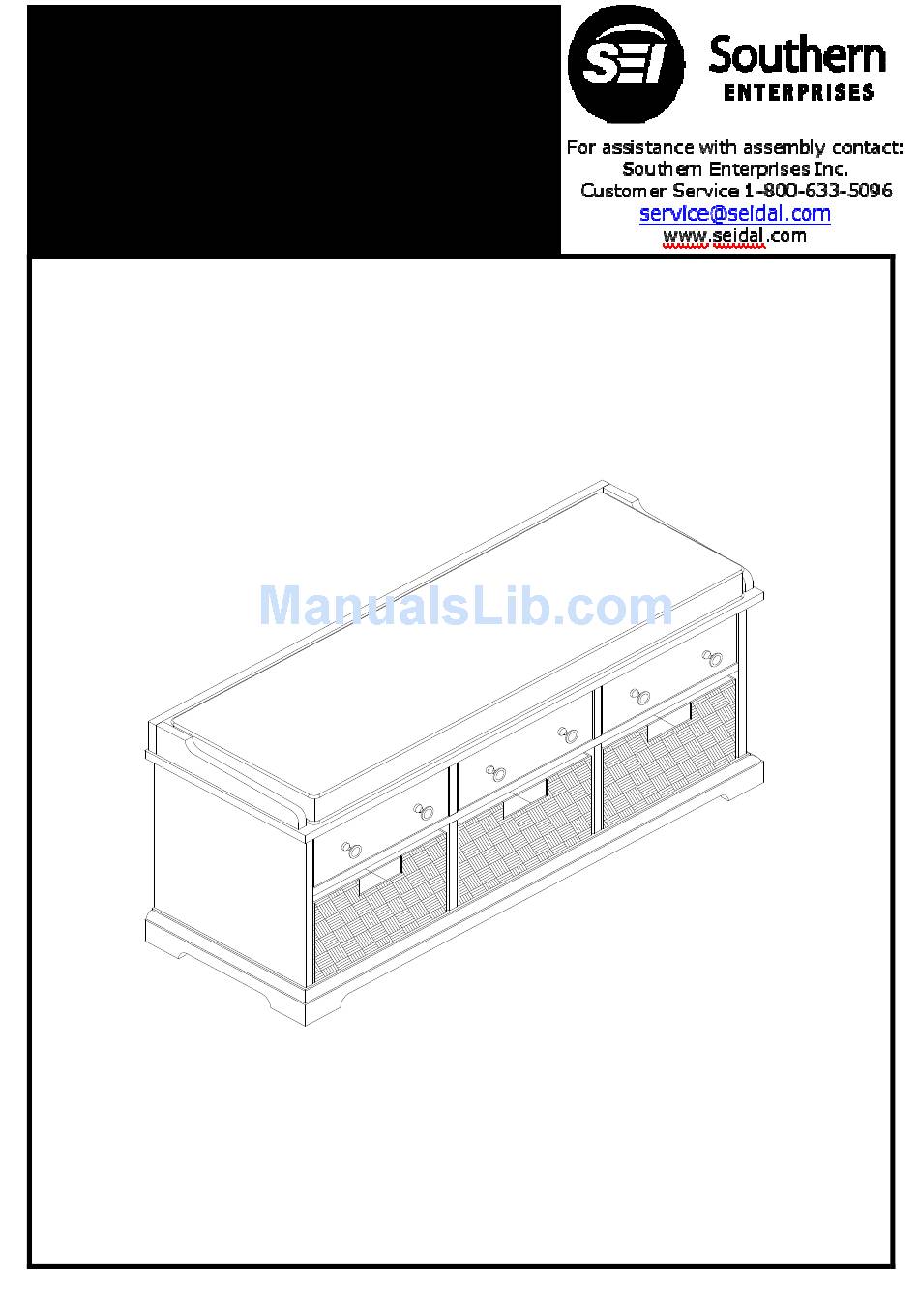

  • Page 1 BC402800TX Larimore Drawer/Basket Storage Bench - Black Assembly Instructions PO#: Page 1...
  • Page 2 Larimore Black Bench W/Drawer/Basket Storage Parts List Please check packaging for all parts and hardware before discarding. Unpack and lay parts on clean, padded surface like carpet or blanket. Check that you have all parts indicated. Call customer service if hardware is missing. Before beginning assembly, carefully study the diagrams below and sort your hardware according to the pictures.
  • Page 3 Quantity Quantity Quantity of 3 of 3 of 1 Drawer Bottom Panel Right Drawer Side Panel Cushion Quantity Quantity of 3 of 3 Basket Bottom Basket Frame Quantity Quantity Quantity of 20 of 20 of 23 Wood Dowel Cam Bolt Cam Lock Dia 8mm x 30mm Quantity...
  • Page 4 Larimore Drawer/Basket Storage Bench - Black Assembly Instructions nsert Cross Panel (6) into grooves on Middle Panel (5), as shown. Figure 1 Start turning with finger to help align Cam Bolts. Insert Cam Locks (B) into holes on Cross Panel (6). Screw Cam Bolts (A) into holes on Left Side Panel (3) and Right Side Panel (4).
  • Page 5 Start with finger to help align Cam Bolts. Insert Cam Locks (B) into holes on assembled unit on Figure 2. Screw Cam Bolts (A) into holes on the top side of Bottom Frame (2). Attach assembled unit on Figure 2 to Bottom Frame (2) by inserting Cam Bolts (A) and Wood Dowels (C) into corresponding holes until all panels meet.
  • Page 6 Start with finger to help align Cam Bolts. Insert Cam Locks (B) into holes on assembled unit on Figure 4. Screw Cam Bolts (A) into holes on Top Panel (1). Attach Top Panel (1) to assembled unit on Figure 4 by inserting Wood Dowels (C) and Cam Bolts (A) into corresponding holes until all panels meet.
  • Page 7 Start with finger to help align Screws. Attach Left Drawer Side Panels (12), Right Drawer Side Panels (14) and Drawer Back Panels (11) with Screws (F). Insert Drawer Bottom Panels (13) into grooves of Drawer Panels (11), (12), and (14). Attach Drawer Face Panels (10) to assembled drawers using Screws (F).
  • Page 8 Attach Basket Bottoms (16) into Basket Frames (17). Insert Baskets into their corresponding spaces. Place the Cushion (15) onto the top panel. Figure 9 Now your Larimore Drawer/Basket Storage Bench is ready to use. Figure 10 Page 8...

  • Page 9: Parts Replacement Form

    Parts Replacement Form Customer Information Name Address City/State/Zip Code Phone Number Please indicate where you purchased this item: Store/Website/Catalog Please indicate color/size/style number: Style No Parts Letter Parts Description Quantity Needed Please immediately examine this product carefully. Any request for missing parts or damage replacement must be received within 90 days of your receipt of the product.
