DSPM Defender Micro Elite Maintenance Manual page 38

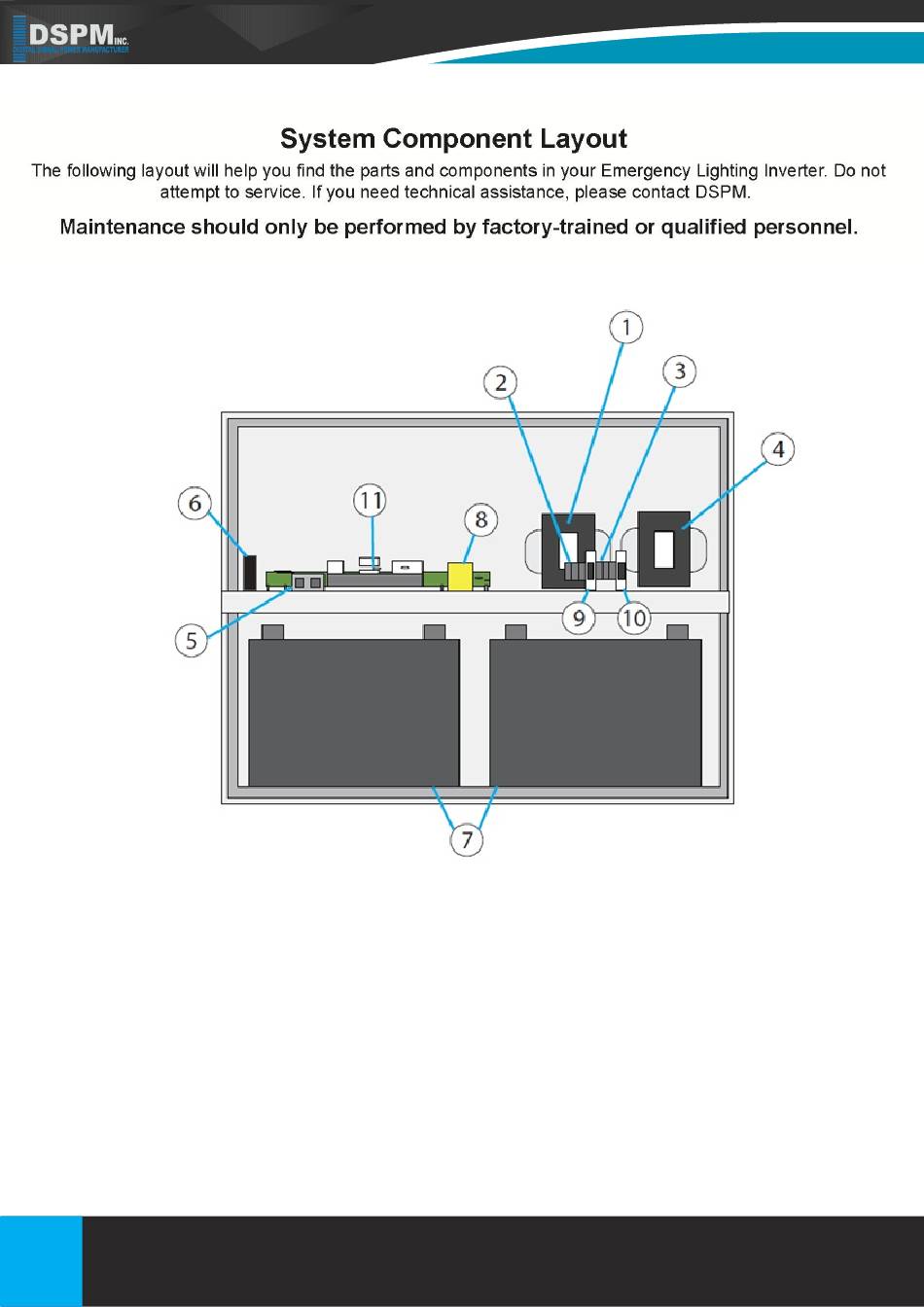

1. Input Transformer
2. Input Terminal Blocks
3. Output Terminal Blocks
4. Output Terminal Block
5. Battery Terminal Blocks
6. Fan
7. Batteries
8. Power ON/OFF Display
9. Main Input Breaker (CB1)
10. Main Output Breaker (CB3)
11. Main Power Board
