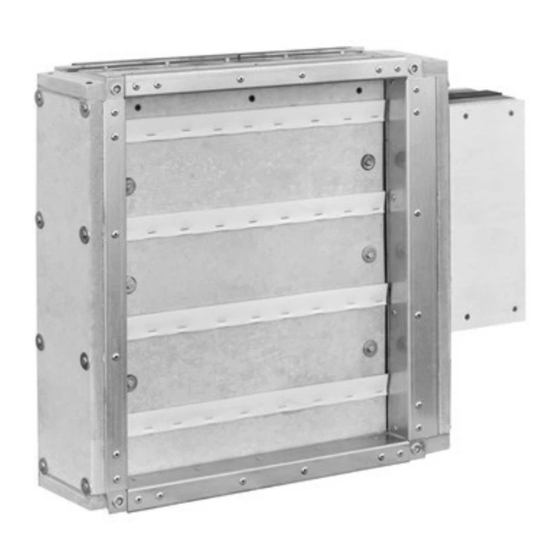

- Page 1 „MERCOR” S.A. ul. Grzegorza z Sanoka 2 80-408 Gdańsk, PL tel. (+48 58) 341 42 45 tel./fax (0-58) 341 39 85 TECHNICAL MANUAL Fire damper type mcr WIP PRO Version WIP PRO 23.02.15.19 FIRE VENTILATION SYSTEMS...
-
Page 2: Table Of Contents
All previous issues of this Technical Manual expire on the date of issue hereof. The Technical Manual does not apply to the fire dampers manufactured before its date of issue. „ MERCOR” S.A. – 2/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19... - Page 3 A thermal release for a damper equipped with KW1 or RST mechanism: 72 ºC 95 ºC Thermal fuse for temperature Tmax 40 ºC Tmax 60 ºC Temperature fuse inside the duct „ MERCOR” S.A. – 3/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
-
Page 4: Introduction
2. SUBJECT _____________________________________________________________________ This Manual concerns the entire group of multi-blade fire dampers type mcr WIP PRO. Compliance with the Manual guidelines ensures correct performance of the device in terms of fire protection of rooms as well as safety of the system users. -
Page 5: Design & Operating Principle
Limit profiles made of galvanized or stainless steel, which are restricting movement of the damper blade, placed inside of casing surface. Profiles are covered with ventilation seal. Operating principle _______________________________________________________________ The operating principle and way of working of the mcr WIP PRO multi-blade fire dampers depend on their application versions: fire dampers – mcr WIP PRO/S In the normal operating position the dampers are open. - Page 6 WIP PRO multi-blade fire damper Trigger control gears _____________________________________________________________ The following trigger control gears are available for the mcr WIP PRO fire dampers: Electric actuator: BF 230-T /V-M BE 230 /V-M BF 24-T (-ST) /V-M BE 24 (-ST) /V-M...
-
Page 7: Device Identification
The mcr WIP PRO dampers can be installed in the following building partitions (i.e. walls or ceilings): masonry concrete walls min. 120 [mm] thick in variants /S, /T, /V, /V-M masonry walls made of bricks or blocks min. -
Page 8: Pre-Assembly Inspection
The mcr WIP PRO fire dampers may also be installed in partitions with a lower class of fire resistance. In such case the damper fire resistance is equal to the partition fire resistance, if the smoke tightness factor is met. When installing the fire damper in a construction partition, the thickness of which is narrower than required minimum, increase the thickness at the installation location i.e.: by adding an extra board or other suitable construction... - Page 9 Once connected to the ventilation ducts, re-verify the fire damper performance. During the installation of the mcr WIP PRO fire damper, keep in mind, that the thermal trigger (a fusible link) must not be damaged or exposed to high temperature (from fire, and welding/soldering equipment), which might release it (it is a single use element and is not subjected to warranty replacement).
- Page 10 The manufacturer allows the use of other materials with parameters that confirm and ensure the appropriate class of fire resistance for the applied method of assembly. „ MERCOR” S.A. – 10/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 11 The manufacturer allows the use of other materials with parameters that confirm and ensure the appropriate class of fire resistance for the applied method of assembly. „ MERCOR” S.A. – 11/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 12 * 3 – A strip of fire-resistant board along the 6 – Cover grille entire length of the side BxH „ MERCOR” S.A. – 12/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 13 60 minutes. Fig. Installation of the mcr WIP PRO damper in fire ventilation systems (fire ventilation ducts - single-zone or multi-zone) „ MERCOR” S.A. – 13/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 14 „ MERCOR” S.A. – 14/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 15 The cover grille can be supplied as a modular by the damper manufacturer. The solution of system masking grates dedicated in particular to usable spaces with high architectural and functional requirements, allows covering additional damper with any other masking grid while meeting the requirements of mcr WIP PRO fire damper classification.
- Page 16 4 - Cement mortar 6 - Installation plug, M8x80 mm Fig. Example installation of the mcr WIP PRO fire damper in a floor slab, min. thickness 150 mm, min. fire resistance rating: EI120 Installation gap: 10 mm. The Z-bars are installed from below of the fire damper, Z-bars are selected accordingly to the fire damper frame width.
- Page 17 1 piece for the side H ≤ 700mm 2 pieces for side H> 700mm Fig. Mounting Z-bars, installation of the mcr WIP PRO fire damper in a concrete ceiling slab with min. thickness: 150 mm, min. fire resistance rating: R120 „...
- Page 18 3 – mcr WIP PRO/ … fire damper, BxH. Fig. Installation of the mcr WIP PRO/ … fire damper as a multiple damper set (a set of 4) 1 – e.g. a masonry wall 4 – C-profile - thickness 2mm 2 –...
-
Page 19: Electrical Connections
WIP PRO multi-blade fire damper Other configurations of the mcr WIP PRO/ … dampers modules can be made, consisting of two or more dampers, while maintaining the minimum distances between the dampers according to the drawing above. For the installation of ventilation ducts are provided the rivet nuts in the corners of the damper. In case of need for additional anchorage of the ventilation duct to the damper, it is possible to use hexagon—type self-tapping screws... - Page 20 AC 220-240V 50/60 Hz DC 24 V DC 24 V Power demand: – when putting the spring under tension 2.5 W 3,5 W „ MERCOR” S.A. – 20/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 21 ~ 62 dB (A) Connection diagram for the BF24-Tand BF230-T actuators Connection diagram for the BFL24-T, BFL230-T, BFN24-T, BFN230-T, BF24-TN and BF230-TN actuators „ MERCOR” S.A. – 21/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 22 Torque: - motor 18 Nm 18 Nm - spring 12 Nm 12 Nm Movement time: (90°) - motor 150 s 150 s „ MERCOR” S.A. – 22/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 23 Wire number: 4-5 – NC (normally closed) Wire number: 7-8 – NC (normally closed) Wire color: gray / blue Wire color: pink / yellow „ MERCOR” S.A. – 23/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
-
Page 24: Transport & Storage Conditions
230 V ±2% for electromagnetic triggers Check the device casing, especially for mechanical damage. Check for any obstructions to proper operation of the equipment. „ MERCOR” S.A. – 24/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19... -
Page 25: Warranty Terms & Conditions
Submit each warranty claim to “MERCOR” SA in 7 days from the date of discovery of a warranty eligible defect Submit warranty claims by calling at: tel. +48 58 341 42 45, by e-mail: reklamacje@mercor.com.pl or by traditional mail: “MERCOR”... - Page 26 “MERCOR” SA. Periodic technical inspection and/or maintenance is not carried out per schedule and/or is carried out by unauthorised personnel or service providers not authorised to do so by “MERCOR” SA and/or the equipment has not been properly operated. ...
- Page 27 Operation time durability: sensor activation temperature Positive result - reliability sensor Positive result Operational reliability stability: - opening / closing cycle test Positive result „ MERCOR” S.A. – 27/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
- Page 28 Operation time durability: sensor activation temperature Positive result - reliability sensor Positive result Operational reliability stability: - opening / closing cycle test Positive result „ MERCOR” S.A. – 28/28 All rights reserved to modifications without prior notice. Version: mcr WIP PRO 23.02.15.19...
