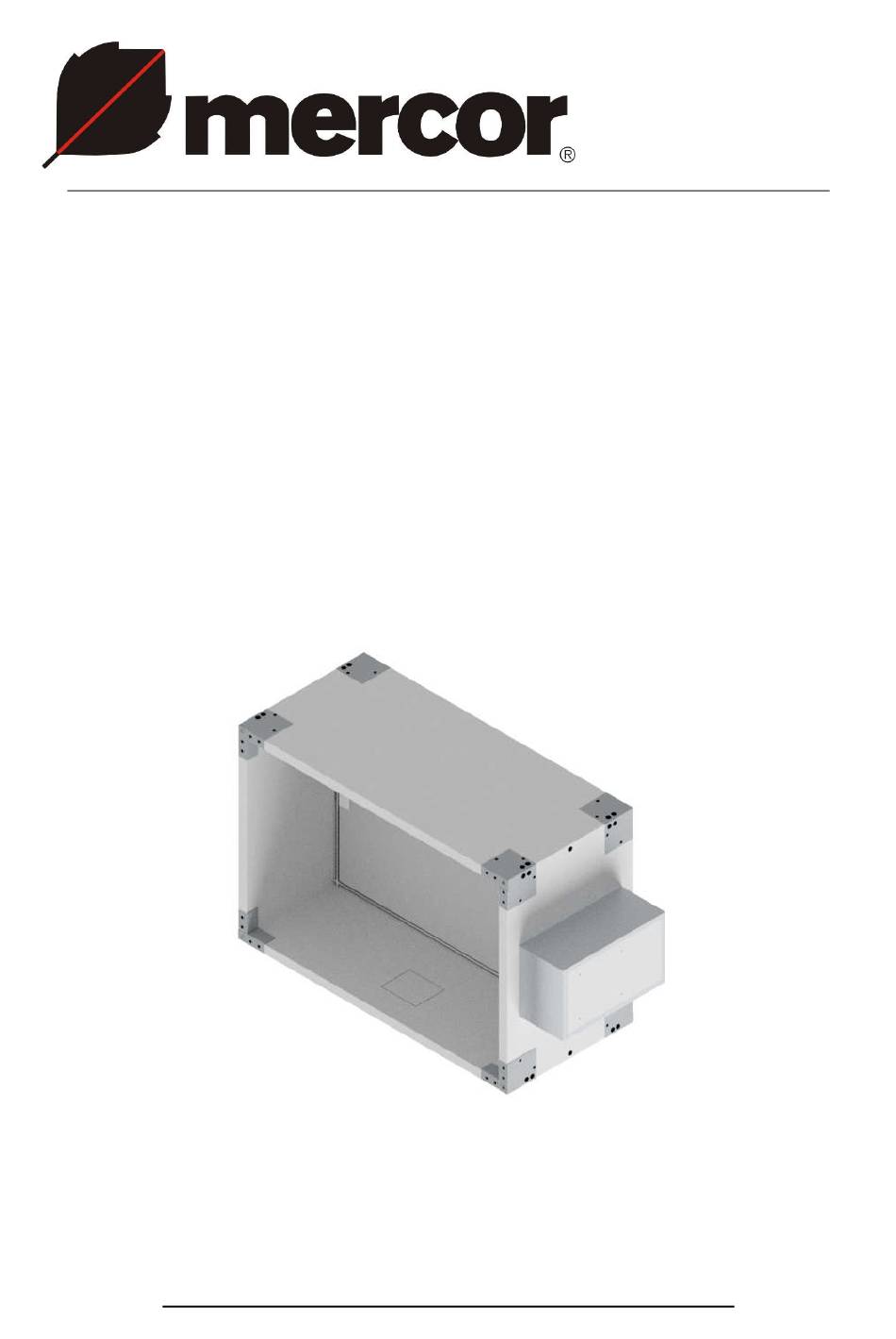

- Page 1 Ul. Grzegorza z Sanoka 2 80-408 Gdańsk tel. (0-58) 341 42 45 tel./fax +48 58 341 39 85 OPERATION AND MAINTENANCE MANUAL (OMM) Fire damper type mcr FID B Version FID B 21.07.30.2 FIRE VENTILATION SYSTEMS...
-
Page 2: Table Of Contents
FID B single-plane fire dampers TABLE OF CONTENTS: 1. INTRODUCTION ..............................3 2. SUBJECT .................................. 3 3. DEVICE INTENDED USE ............................3 4. DESIGN AND OPERATING PRINCIPLE ......................... 4 5. DEVICE IDENTIFICATION ............................8 6. INSTALLATION ................................ 8 6.1. PRE-ASSEMBLY INSPECTION ........................9 6.2. - Page 3 FID B single-plane fire dampers CAUTION The product should be stored and used in rooms where: • there is no access to dust, gases, caustic vapors and other aggressive chemical vapors that can destroy the insulating elements and structural elements;...
-
Page 4: Introduction
– mcr FID B/G Caution: Cut-off fire dampers for fire ventilation systems the mcr FID B/V and fire dampers for mixed fire ventilation systems the mcr FID B/M, have one declaration of performance in accordance with the requirements of law. -
Page 5: Design And Operating Principle
Aside from the standard dimensions, the fire dampers may also be manufactured in intermediate sizes. The damper casing can be made longer on request. Maximum surface area of type mcr FID B dampers: 0,96 m2. The minimum damper surface area is 0,04 m2. - Page 6 It is recommended that the fire damper were opened and closed when the ventilation system is turned off. Trigger control gears The following trigger control gears are available for the mcr FID B fire dampers: Electric actuator: BF 230-T /V-M...
-
Page 7: Device Identification
The mcr FID B dampers can be installed at a distance from the following building partitions: walls with a wooden structure of the thickness required for fire resistance... - Page 8 Protecting the damper against buckling The mcr FID B fire damper will work properly if the isolation partition rotation axis is horizontal. If the case of fire damper must have vertical verical axial, state this when ordering. The trigger control gear may be located on the right or on the left hand side of the damper at any direction of air flow.
- Page 9 It is crucial to keep the device embedding envelope so that the trigger control gear is outside of the wall envelope and easily accessible. 1. mcr FID B BxH damper 2. Multi-zone smoke extract duct - eg made of fire-rated boards 3.
- Page 10 5. Rigid floor 6. M10x20 screw 7. MWB system grille Installation of damper in rigid floor – below the rigid floor 1. mcr FID B BxH damper 2. Multi-zone smoke extract duct - eg made of fire-rated boards 3. A strip of fire-resistant...
- Page 11 FID B single-plane fire dampers 1. mcr FID B BxH damper 2. Multi-zone smoke extract duct - eg made of fire-rated boards 3. A strip of fire-resistant board along the entire length of the side BxH 4. System of ceiling hanger 5.
- Page 12 Inspection access The mcr FID B damper is factory-equipped with an access inspection, thanks to which the connected duct and the damper can be inspected without the need to disassemble the installation. The inspection can be opened by unscrewing the 4 extreme screws as shown in the drawing above.
-
Page 13: Electrical Connections
B+78 MWB system grille The mcr FID B damper can be delivered by the manufacturer with a system cover grille. In case of specific architectural requirements, the structure of the system masking grilles allows covering the damper and the grille with additional masking grilles. - Page 14 FID B single-plane fire dampers Electric actuators – electrical specification Actuator type Location of the damper isolation partition - Belimo BFL series - Belimo BFN series Open isolation partition – actuator indication: 90 - Belimo BF series Closed isolation partition – actuator indication: 0...
- Page 15 FID B single-plane fire dampers Sizing (apparent power) 5 VA 6 VA 6 VA 7 VA Appliance class Ingress protection rating IP 54 IP 54 IP 54 IP 54 2xSPDT 2xSPDT 2xSPDT 2xSPDT Auxiliary circuit breaker: 3A AC 250V...
- Page 16 FID B single-plane fire dampers Connection diagram for the BF24-Tand BF230-T actuators Connection diagram for the BFL24-T, BFL230-T, BFN24-T, BFN230-T, BF24-TN and BF230-TN actuators Connection diagram for the MLF 24T, MLF 230T, MF 24T, MF 230T 16/22 “MERCOR” SA...
- Page 17 FID B single-plane fire dampers Connection diagram for the BE24, BLE24, BE230 and BLE230 actuators Connection diagram for the BEE24, BEN24, BEE230 and BEN230 actuators Note: The BE, BLE, BEE and BEE actuator operating control requires a three-wire system. The actuator sense of rotation is switched by applying the supply voltage to terminal 2 or 3, depending on the desired sense.
- Page 18 FID B single-plane fire dampers Thermal trigger EX zone EEx-e rated installation box Connection diagram for the EXBF actuators Caution: For proper operation of a device equipped with electrical actuators, it is recommended that the rated voltage housed tolerance of 24V±10% or 230V±10%. Power supply devices other than listed above may cause malfunction and will not be covered by the warranty conditions.
- Page 19 FID B single-plane fire dampers Connection diagram for transformer module type MP230/24 Caution! - The location of the limit switches is shown for the fire damper in the safety position For proper operation of a device equipped with electrical actuators, it is recommended that the rated voltage housed tolerance of 24V±2% or 230V±2%.
-
Page 20: Transport & Storage Conditions
The equipment from Mercor SA requires periodic technical inspection and maintenance at least every 12 months throughout its operating life, i.e. during the warranty and post-warranty period. Inspection and maintenance may only be carried out by the manufacturer or contractors authorised by MERCOR SA to service its products. -
Page 21: Warranty Terms & Conditions
Refer all matters related to technical inspection, maintenance and servicing of this equipment to the Mercor SA Service Department, serwis@mercor.com.pl, tel. +48 58 341 42 45 ext. 170, fax: +48 58 341 39 85, from 8 AM to 4 PM (Mo-Fri). - Page 22 Operation Manual). 13. Any circumstances listed in Item 10 will relieve “MERCOR” SA from the obligation of surety. The relevant provisions of the Polish Civil Code shall apply to all matters not regulated in these Warranty Terms & Conditions.
