Operator and Parts
manual
Overseeder
Model 1500 a
Serial number:
IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE
BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATORS
MANUAL IS CAREFULLY READ BEFORE THE MACHINE IS
USED.
NOTE:
Redexim

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 1500 and is the answer not in the manual?

Questions and answers

Related Manuals for Redexim 1500

Summary of Contents for Redexim 1500

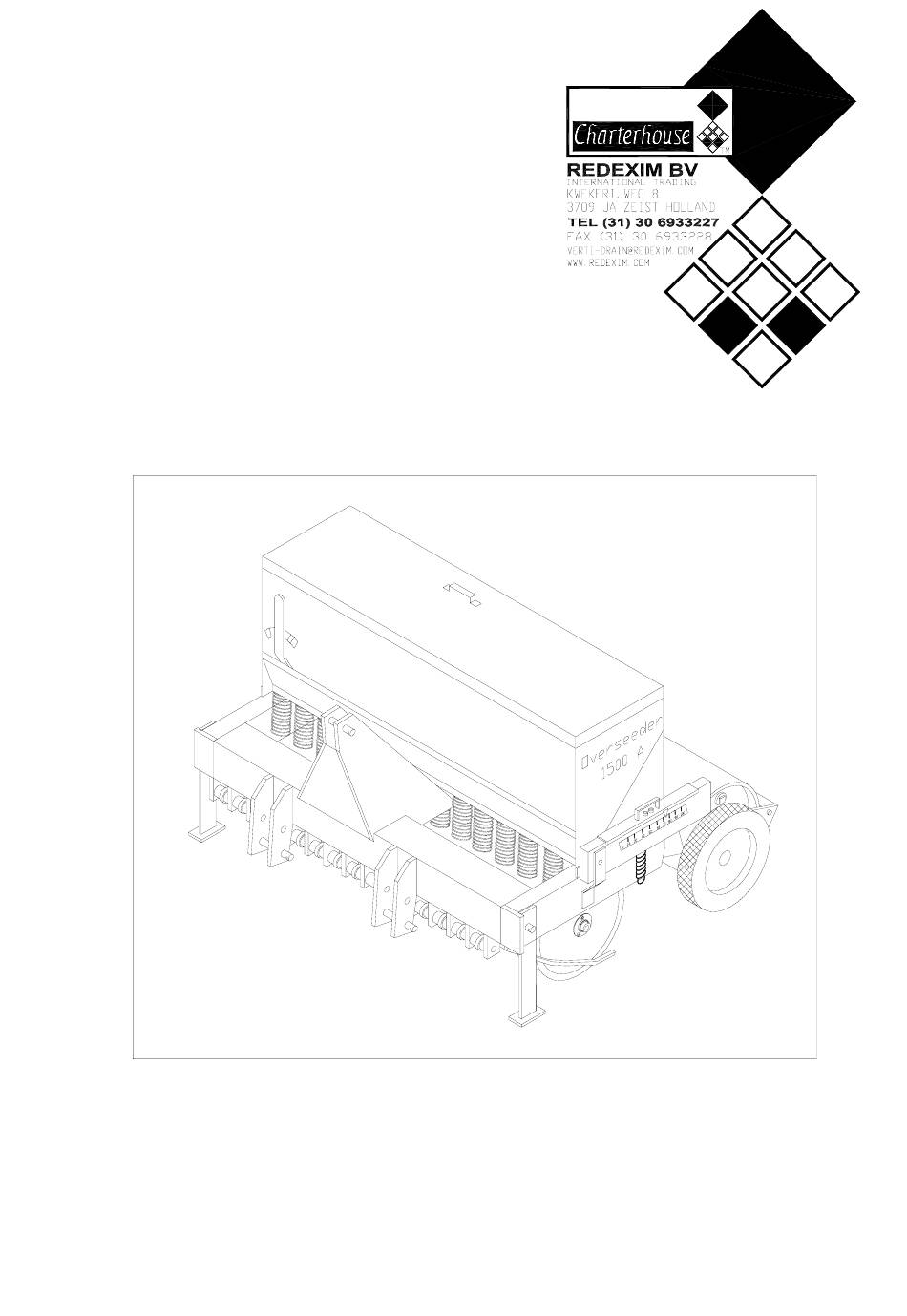

  • Page 1 Operator and Parts Redexim manual Overseeder Model 1500 a Serial number: NOTE: IN ORDER TO ENSURE THE SAFE USE AND TO ACHIEVE THE BEST PERFORMANCE, IT IS ESSENTIAL THAT THIS OPERATORS MANUAL IS CAREFULLY READ BEFORE THE MACHINE IS USED.

  • Page 2: Foreword

    FOREWORD. Congratulations on the purchase of your Redexim- Charterhouse OVERSEEDER. To ensure the safe and lasting operations of this OVERSEEDER you (and anyone using the machine) should read and understand this user’s manual. A complete knowledge of the contents of the manual is necessary in order to ensure the safe use of this machine.

  • Page 3: Safety Instruction

    SAFETY INSTRUCTIONS Always use the OVERSEEDER with the correct tractor as described in the technical information The user is responsible for a safe Tractor/OVERSEEDER combination. The combination must be tested for noise, safety, risk and easy usage. It is also necessary to draw up user instructions. The OVERSEEDER is suited exclusively to grass fields.

  • Page 4: Table Of Contents

    CONTENTS. Par. Description Page Foreword Guarantee conditions Registration card Safety instruction Technical specification First setup General controls Working depth adjustment The seed box The seed box assembly Seed distribution amounts Self-Test for the seed distribution Groundspeed General usage of the Overseeder Some common notes for the usage of the machine Transport of the Overseeder 10.0...

  • Page 5: Technical Specification

    1.0 TECHNICAL SPECIFICATIONS. OVERSEEDER 1500 A Model Working width 1500 mm (60”) Working depth 5- 20 mm (1/8”- ¾”) Weight 800 Kg (1780 lbs) Disk spacing 100 mm (4”) No. of disc assemblies Recommended minimum tractor size 40 HP with lift capacity of minimum 1000 Kg...

  • Page 6: First Setup

    2.0 FIRST SETUP The machine is delivered horizontal on a pallet. To install the machine behind a tractor, handle as follows: 1. Mount the machine to the 3-point linkage of the tractor. 2. Remove the straps that connect the machine to the pallet. 3.

  • Page 7: Working Depth Adjustment

    5.0 SEED BOX . The seed hopper used on the 1500-A is a very accurate one. It will handle very fine and very coarse type seeds. The setting is not difficult, but can be done by three different settings. It is important to understand the seed box assembly, before we can set it correctly.
  • Page 8 1. Seed hopper. 2. Agitator, driven by the gearbox 8. 3. Bent Seed Guide Plate. This plate closes the opening under the Seed Distribution Sprocket 15. The position, or better distance B is controlled by handle 18. For all grass seeds this handle 18 should be set at position 1 ( closest distance). Only when coarser seeds ( like beans) are used, the opening should be wider.

  • Page 9: Seed Distribution Amounts

    13. Funnel Beam. All the funnels funnel the seed down from hopper to disc assemblies underneath. The beam is locked by Secure Fingers 5. Can be taken out and assembled upside down for seed calibration, see next chapter. DON’T FORGET TO TURN IT BACK.

  • Page 10: Groundspeed

    Set the Speed Adjuster # 6 at 40. Rotate the wheel 36 time, weight the seed that has been distributed by taking the Funnel Beam 13 out. The weight you measure (in Kg or lbs) is the amount of seed per 100 square meter, which is about 1075 square feet.

  • Page 11: Transport Of The Overseeder

    9.0 TRANSPORT OF THE OVERSEEDER The user is responsible for the transport of the OVERSEEDER behind the tractor along the public streets. Check on the national legislations. Across open ground a maximum speed of 20 km/h (13 mph) applies. In view of the weight of the OVERSEEDER, a higher speed could be dangerous for the driver and bystanders.

  • Page 12: Maintenance

    Open lever 16 fully. Clean tubes and funnels 13.0 EU-Declaration We, Redexim Utrechtseweg 127 3702 AC Zeist Holland, hereby declare fully on our authority that the product: OVERSEEDER 1500 A , WITH SERIAL NUMBER AS INDICATED ON THE MACHINE AND IN THIS MANUAL,...
