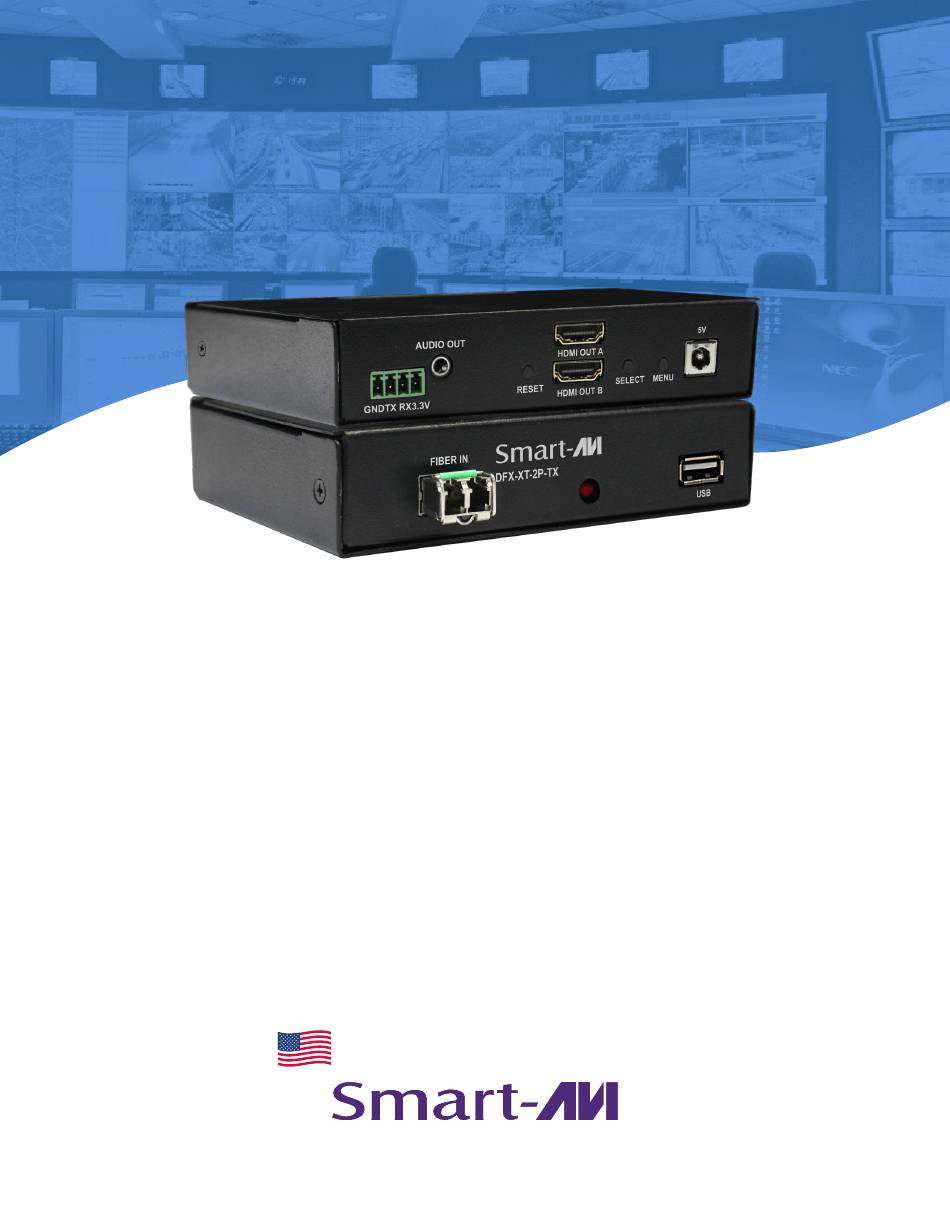

- Page 1 DFX-XT-2P Dual head 4K HDMI with audio and usb 2.0 kvm extender USER MANUAL Designed and Manufactured in the USA 1-888-994-7427 www.smartavi.com...
- Page 2 OVERVIEW TECHNICAL SPECIFICATIONS_________________________________________________________________ WHAT’S IN THE BOX?_________________________________________________________________________ FRONT AND BACK____________________________________________________________________________ INSTALLATION_______________________________________________________________________________ TROUBLESHOOTING_________________________________________________________________________ TECHNICAL SUPPORT________________________________________________________________________ LIMITED WARRANTY STATEMENT____________________________________________________________ Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender...
- Page 3 technical specifications VIDEO Format HDMI2.0 Resolution: high definition 3840 x 2160 Video Resolution Color Depth: 24-bit color depth Latency: less than 1 ms Video Bandwidth Single-link 340 MHz (10.2 Gbps) Input Interface (2) HDMI 19-pin (female) Output Interface (2) HDMI 19-pin (female) Max Output Distance Up to 20 ft Equalization...
- Page 4 Dual Head 4K HDMI with Audio and USB 2.0 KVM Receiver 5VDC3A 5V DC, 3A power adapter with center-pin positive polarity. User manual Front and back DFX-XT-2P-TX (Front) DFX-XT-2P-TX (Back) DFX-XT-2P-RX (Front) DFX-XT-2P-RX (Back) Dual Head 4K HDMI with Audio and USB 2.0 KVM Extender...
- Page 5 Audio Input port of the DFX-XT-2P-TX. 6. Connect a monitor to the HDMI Out console port of the DFX-XT-2P-RX using a HDMI cable. 7. Connect a USB keyboard and mouse and the USB devices in the four USB ports of the DFX-XT-2P-RX.
- Page 6 Troubleshooting No Power • Make sure that the power adapter is securely connected to the power connector of the unit. • Check the output voltage of the power supply and make sure that the voltage value is around 5VDC. • Replace the power supply. No Video •...
- Page 7 Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. Customer is responsible for maintaining proof of date of purchase.
- Page 8 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
