SDX-XT
Advanced XT/XT-2P/XT-4P Extender
USER MANUAL
SDX-XT
DVI-D, USB 2.0 and Audio KVM CAT5/6 Extender
SDX-XT-2P
Dual Head DVI-D, USB 2.0 and Audio KVM CAT5/6 Extender
SDX-XT-4P
Quad Head DVI-D, USB 2.0 and Audio KVM CAT5/6 Extender
1-800-284-2131
www.smartavi.com
Advanced XT/XT-2P/XT-4P Extender
series
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for SMART-AVI SDX-XT Sseries
Summary of Contents for SMART-AVI SDX-XT Sseries
- Page 1 SDX-XT series Advanced XT/XT-2P/XT-4P Extender USER MANUAL SDX-XT DVI-D, USB 2.0 and Audio KVM CAT5/6 Extender SDX-XT-2P Dual Head DVI-D, USB 2.0 and Audio KVM CAT5/6 Extender SDX-XT-4P Quad Head DVI-D, USB 2.0 and Audio KVM CAT5/6 Extender 1-800-284-2131 www.smartavi.com Advanced XT/XT-2P/XT-4P Extender...
-
Page 2: Table Of Contents
Table of content TECHNICAL SPECIFICATIONS_____________________________________________________________ 3 WHAT’S IN THE BOX?_____________________________________________________________________ 4 SM-DVN FRONT AND REAR_______________________________________________________________ 4 INSTALLATION____________________________________________________________________________ 5-8 LED’s BEHAVIOR__________________________________________________________________________ 11 SYSTEM OPERATION______________________________________________________________________ 12 TROUBLESHOOTING______________________________________________________________________ 12 TECHNICAL SUPPORT_____________________________________________________________________ 12 LIMITED WARRANTY STATEMENT________________________________________________________ 13 Advanced XT/XT-2P/XT-4P Extender... -
Page 3: Technical Specifications
Technical Specifications VIDEO Format DVI-D (HDMI-ready with adapter) Resolution: high definition 1920 x 1200; Video Resolution Color Depth: 24-bit color depth; Latency: less than 1 ms Video Bandwidth Single-link 340 MHz (10.2 Gbps) SDX-XT (1) DVI-I 29-pin Input Interface (TX) SDX-XT-2P (2) DVI-I 29-pin SDX-XT-4P... -
Page 4: What's In The Box

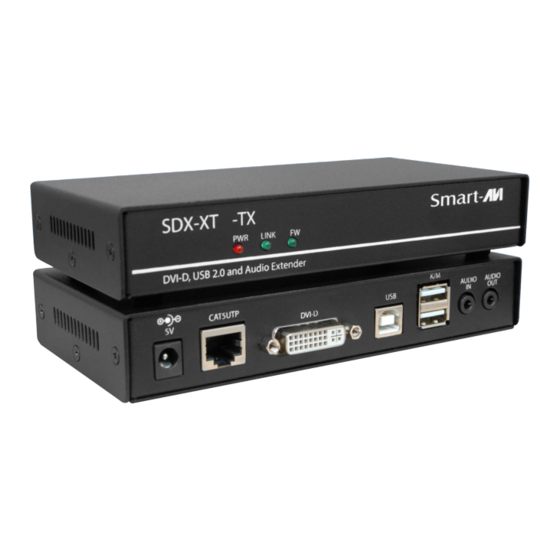

What’s in the box? SDX-XT Unit Single/Dual/Quad Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Extender. PS5VD3A-WLLMNT 5V DC, 3A (minimum) power adapter with center-pin positive polarity. User Manual SDX-xT Transmitter rear SDX-XT transmitter front SDX-XT receiver rear SDX-XT receiver front Advanced XT/XT-2P/XT-4P Extender... -
Page 5: Installation
installation 1. Ensure that power is turned off or disconnected from the unit and the computers. 2. Use a DVI cable to connect the DVI output port from each computer to the corresponding DVI-I IN ports of the unit. 3. Use a USB cable (Type-A to Type-B) to connect a USB port on each computer to the respective USB ports of the unit. - Page 6 Application diagram SDX-XT-2P The SDX-XT-2P is Dual Head DVI-D (1920x1200), USB 2.0, USB keyboard-mouse and stereo audio extender, sending signals up to 400ft (120m) away over two conventional and inexpensive CAT5/5e/6 cables. Part No. Description Dual Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Extender. SDX-XT-2P-S Includes: [SDX-XT-2P-TX-S, SDX-XT-2P-RX-S, 2x (PS5VD3A)] Dual Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Transmitter.
- Page 7 Application diagram SDX-XT-4P The SDX-XT-4P is Quad Head DVI-D (1920x1200), USB 2.0, USB keyboard-mouse and stereo audio extender, sending signals up to 400ft (120m) away over four conventional and inexpensive CAT5/5e/6 cables. Part No. Description Quad Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Extender. SDX-XT-4P-S Includes: [SDX-XT-4P-TX-S, SDX-XT-4P-RX-S, 2x (PS5VD3A)] Quad Head DVI-D, USB 2.0, Audio, CAT5/5e/6 Transmitter.
- Page 8 Led control SDX-XT Solid red LED when power is connected Link Solid green LED when cat5 is connected Blinking green LED when transferring information between unit and computer SDX-XT-2P Solid red LED when power is connected Link Solid green LED when cat5 is connected Blinking green LED when transferring information between unit and computer SDX-XT-4P Solid red LED when power is connected...
-
Page 9: Troubleshooting
Troubleshooting No Power Make sure that the power adapter is securely connected to the power connector of the unit. Check the output voltage of the power supply and make sure that the voltage value is around 12VDC. Replace the power supply. No Video ... -
Page 10: Limited Warranty Statement
Limited warranty statement A. Extent of limited warranty SmartAVI, Inc. warrants to the end-user customers that the SmartAVI product specified above will be free from defects in materials and workmanship for the duration of 1 year, which duration begins on the date of purchase by the customer. - Page 11 NOTICE The information contained in this document is subject to change without notice. SmartAVI makes no warranty of any kind with regard to this material, including but not limited to, implied warranties of merchantability and fitness for particular purpose. SmartAVI will not be liable for errors contained herein or for incidental or consequential damages in connection with the furnishing, performance or use of this material.
