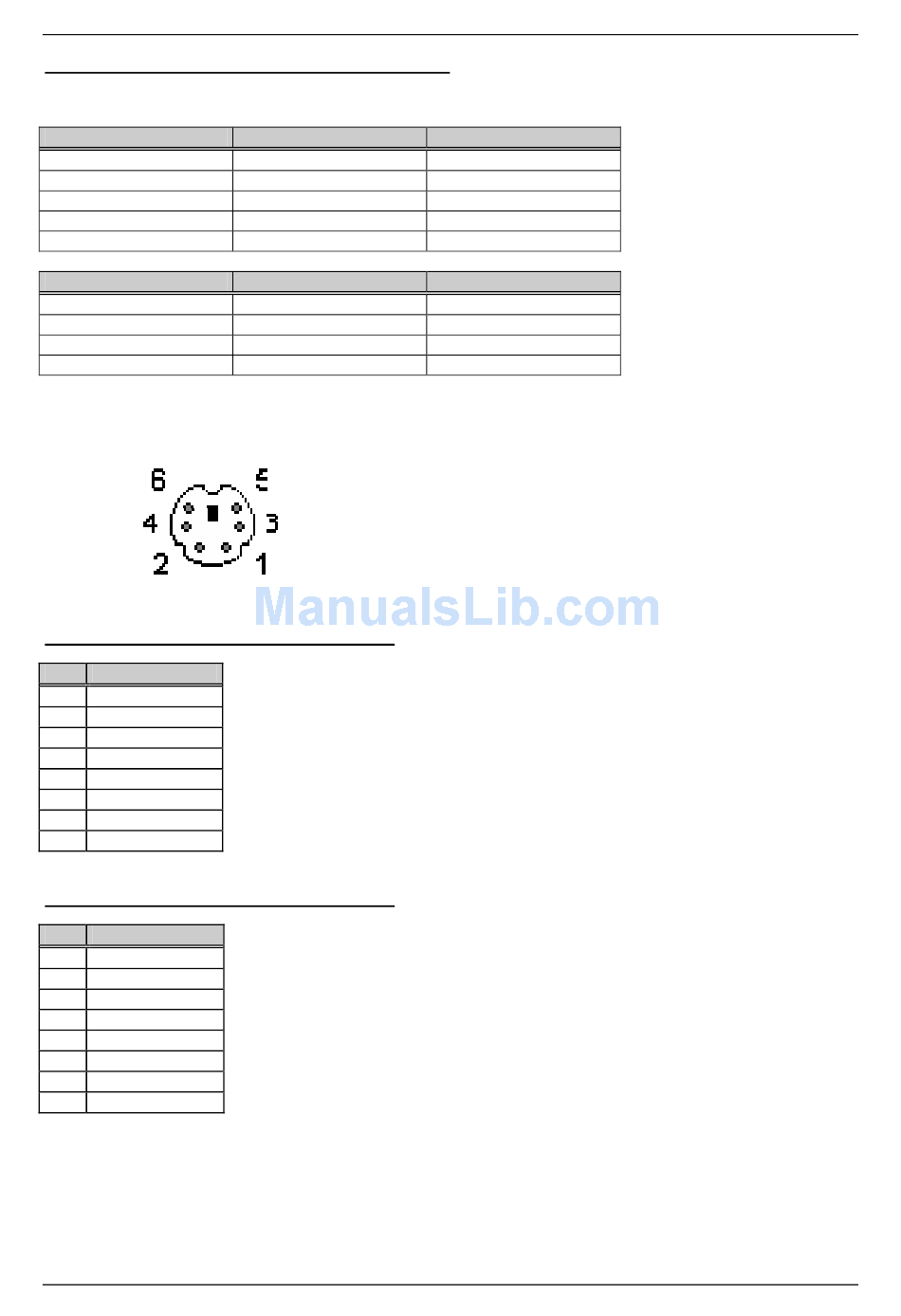

X31 Keyboard PS/2 and Mouse Utility Connector
Connector and Adapter
Shield
DATA
GND
VCC (+5V)
CLK
VCC (+5V)
DATA
GND
CLK
PS/2 Front side (female)
X33 10/100 BASE-T Interface Connector 0
Pin Signal (CAT 5)
1 TX+
2 TX-
3 RX+
4
5
6 RX-
7
8
X34 10/100 BASE-T Interface Connector 1
Pin Signal
1 TX+
2 TX-
3 RX+
4
5
6 RX-
7
8
Mini- DIN PS/2 (6 PC)
Shield
1
3
4
5
Mini- DIN PS/2 (6 PC)
4
2
3
6
