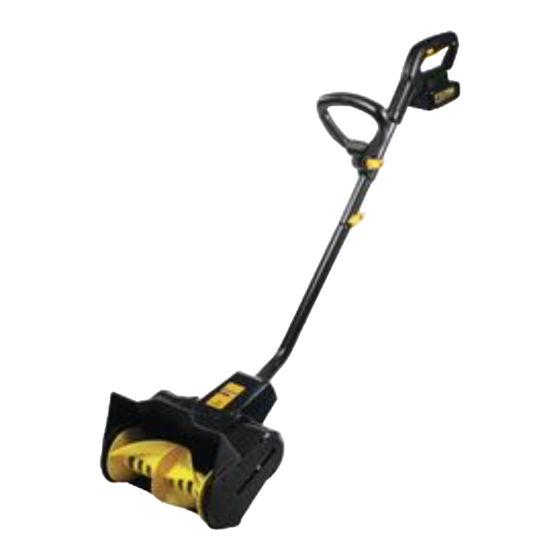

12-inch 20v lithium-ion snow thrower with (1) 20v 4.0ah lithium-ion battery

Advertisement

OWNER'S MANUAL
12-Inch 20V Lithium-ion Snow Thrower
With (1) 20V 4.0Ah Lithium-ion Battery
Copyright All Rights Reserved.
Model SN70112-1 | SKU# 267-3227
BATTERY MUST BE CHARGED
BEFORE FIRST USE. TWO TO THREE
INITIAL CHARGING/DISCHARGING
CYCLES MAY BE REQUIRED TO
ACHIEVE MAXIMUM RUN TIME/
CAPACITY.
This product has been engineered and manufactured to our high standard for dependability, ease of operation, and
operator safety. Properly cared for, it will give you years of rugged, trouble-free performance.
WARNING: To reduce the risk of injury, the user must read and understand the owner's manual before
using this product.
DO NOT RETURN THIS PRODUCT TO THE STORE. OPERATING, ASSEMBLY, PART,
SERVICE QUESTIONS? GO TO WWW.AMERICANLAWNMOWER.COM OR CALL
1-800-633-1501. BETWEEN 8 AM – 5 PM EST, MONDAY-FRIDAY FOR ASSISTANCE.
Thank you for your purchase.
SAVE THIS MANUAL FOR FUTURE REFERENCE
CA Compliant Charger
Included (Model No.
CHL82000)
801137

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SN70112-1 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Yardworks SN70112-1

  • Page 1 OWNER’S MANUAL 12-Inch 20V Lithium-ion Snow Thrower With (1) 20V 4.0Ah Lithium-ion Battery Copyright All Rights Reserved. Model SN70112-1 | SKU# 267-3227 BATTERY MUST BE CHARGED BEFORE FIRST USE. TWO TO THREE INITIAL CHARGING/DISCHARGING CYCLES MAY BE REQUIRED TO ACHIEVE MAXIMUM RUN TIME/ CAPACITY.
  • Page 2 DANGER! Risk of electric shock. Do not use in rain or electrical storms. Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your Local Authority or retailer for recycling advice. Model SN70112-1...
  • Page 3: Important Safety Warnings

    Do not operate the snow thrower Be sure switch is off when installing battery. when you are tired or under the influence of drugs, alcohol or medications. Model SN70112-1...
  • Page 4: Safety Rules For Charger

    An extension cord should not be used unless absolutely necessary. Use of improper extension cord -- Consult the dealer or an experienced radio/TV could result in a risk of fire and electric shock. technician for help. Model SN70112-1...
  • Page 5: Product Specifications

    PRODUCT SPECIFICATIONS Model: SN70112-1 Input: 20V, DC only Sweep width: 12 inches ( 305 mm) Battery: 20V, 4.0 Ah Lithium-ion Max clearing depth: 5 inches (127 mm) Charging time: 2.7 hours Throwing distance: Up to 25 feet Battery run time: 60 minutes...
  • Page 6: Parts List

    Wing nut (M6X45 Carriage Bolt) Upper Cover Motor Assembly Drive belt Left cover plate Drive pulley Fix Plate Washer Bolt M5X12 Scraper blade Auger Auger Axle Motor Housing Acom nut M8 Charger Battery Safety lock off button Trigger Switch Model SN70112-1...
  • Page 7 7. Motor housing 8. Auger Motor housing (Fig. 1B) 9. Discharge chute Connect socket (B) to the plug on the motor housing (7). Secure the upper cover to the motor housing with the supplied screws. Model SN70112-1...
  • Page 8: Battery Installation And Removal

    Note: The battery can only be installed one way.  M6x50 Hex Head Bolt To remove: • Depress release button (A) on the back of battery cartridge (B) to release the battery. • Pull the battery out of tool. Model SN70112-1...
  • Page 9 Make sure all fasteners on the snow thrower (screws, nuts, etc.) are fully tightened. Check the auger for wear and tear at regular intervals. Position the snow thrower so that snow will discharge in a safe direction away from the operator and bystanders. Model SN70112-1...
  • Page 10 To protect these parts, down until the current drops. When the current drops to a one or two inches of snow can be left behind and cleared safe level, the snow thrower will resume normal operation. Model SN70112-1...
  • Page 11: Maintenance And Storage

    Loosen the nut and take the pulley (20) and the belt (21) off of the shaft.  Install new belt (21) with the pulley onto the shaft.  Secure with the nut.  Replace the cover (18) and secure with screws. Model SN70112-1...
  • Page 12 (13) and auger axle (12). 3. Secure with the three screws.  Replace the auger with a new one. 4. Ensure the screws are properly tightened.  When reassembled ensure all screws and nuts are properly tightened. Model SN70112-1...
  • Page 13: Charging The Battery Pack

    Disconnect charger from the power supply when not in use to medical attention. prevent damage to the charger during a power surge. TO CHARGE - SEE CHARGER MANUAL FOR COMPLETE INSTRUCTIONS Charger Battery Pack Constant Red = Battery is charging Constant Green = Battery is fully charged Model SN70112-1...
  • Page 14: Troubleshooting

    RBRC in cooperation with The Great States Corporation American Lawn Mower Company has provided an environmentally friendly and easy way to recycle spent li-ion batteries. Just contact your local recycling center or call 1-800-8BATTERY for information on where to drop off the spent battery. Model SN70112-1...
  • Page 15: Parts And Service

    Snow Shovel Hardware Kit SN-SB-12 Snow Shovel Scraper Bar CALL US FIRST !! Call us first with questions about operating or maintaining your tool at 1-800-633-1501 between 8:00 a.m. – 5:00 p.m. Eastern Standard Time, or get assistance on www.americanlawnmower.com. Model SN70112-1...
  • Page 16 The Great States Corp. (GSC) warrants to the original owner that this Yardworks product and service part is free from defects in materials and workmanship and agrees to repair or replace any defective product or part for the warranty period as stated above.
