Summary of Contents for pyroscience FireSting-PRO

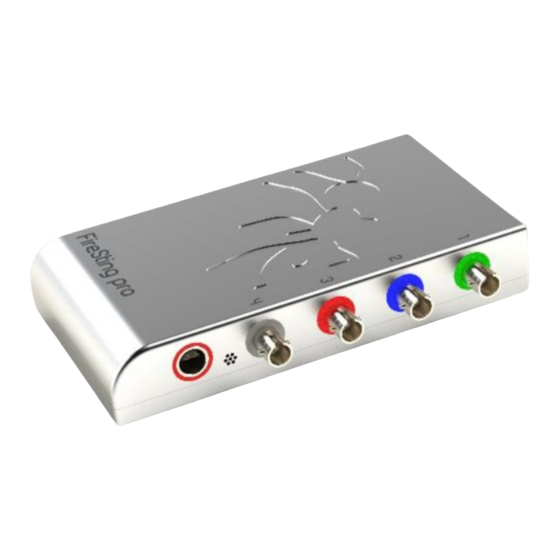

- Page 1 FireSting®-PRO Optical Multi-Analyte Meter USER MANUAL www.pyroscience.com...
- Page 2 FireSting®-PRO | User Manual FireSting®-PRO Optical Multi-Analyte Meter Document Version 1.07 The FireSting®-PRO is released by: PyroScience GmbH Hubertusstrasse 35 52064 Aachen Germany Phone +49 (0)241 5183 2210 +49 (0)241 5183 2299 Email info@pyroscience.com www.pyroscience.com Registered: Aachen HRB 17329, Germany © PyroScience GmbH...
-
Page 3: Table Of Contents
5.2 Contactless Sensors ........................9 Extension Port..........................11 6.1 Connector X1 (Power, Digital Interface, Analog In) ............11 6.2 Connector X2 (Analog Output) ....................12 Specifications ..........................14 Related Documents ........................16 Warnings & Safety Guidelines ....................17 © PyroScience GmbH... -
Page 4: Overview
Furthermore, the FireSting®-PRO offers 4 analog outputs and a broadcast-mode. The new innovative and user-friendly Pyro Workbench allows operation of several FireSting®-PRO meters in parallel as a scalable multi-channel system. © PyroScience GmbH... -
Page 5: Introduction
The micro-USB connector on the left side panel provides energy supply and data exchange with the PC. Right-hand side of it, a connector X1 for power and digital interface (7-pins) and a connector X2 for analog output (5 pins) is located. © PyroScience GmbH... -
Page 6: Quick Start
Open the Calibration Wizard and follow the calibration instructions for each sensor. Measurements with the respective sensors will start automatically after all required sensor calibrations have been performed. Step 9: Configure the Graphs according to your preferences. Step 10: Activate Data Logging. © PyroScience GmbH... -
Page 7: Connecting Sensors
• Insert the male fiber plug of the sensor cable into the ST-port (female fiber connector) of the FireSting®-PRO and turn the bayonet coupling gently clockwise until the plug is locked firmly. © PyroScience GmbH... -
Page 8: Optical Sensors
FireSting®-PRO | User Manual OPTICAL SENSORS FireSting®-PRO is compatible with a broad range of optical oxygen, pH and temperature sensors from PyroScience. For an overview of available optical sensor types, please see the PyroScience website. Fiber-optic Sensors Sensor Item Analyte Application OXROB…... -
Page 9: Contactless Sensors
TOVIAL… Temp. & PHVIAL… Temp. & PHTVIAL… water & media Temp. & PHTOVIAL… & OXFTC… OXFTCR water & gas Temp. TPFTC2 Flow-Through Cells Temp. & TOFTC2 water & media PHFTCR… different pH ranges; water=water, seawater, aqueous solutions © PyroScience GmbH... - Page 10 FireSting®-PRO | User Manual © PyroScience GmbH...
-
Page 11: Extension Port
Pin 6 (/PAUSE_BROADCAST) acts as a master switch of the broadcast mode. As long this pin is tied to pin 1 (GND), then the broadcast mode is paused. Neither periodic broadcast measurements, nor triggered broadcast measurements are performed. © PyroScience GmbH... -
Page 12: Connector X2 (Analog Output)
Connector X2 (Analog Output) The connector X2 provides 4 analog outputs with a range of 0-2.5V DC at a resolution of 14 bits (see table below). Refer to the Pyro Workbench manual how to configure the analog outputs. © PyroScience GmbH... - Page 13 AO_C Analog Output Analog Output Port C (0 – 2.5 V DC) (alternatively digital (14-bit resolution) alarm output) AO_D Analog Output Analog Output Port D (0 – 2.5 V DC) (alternatively digital (14-bit resolution) alarm output) © PyroScience GmbH...
-
Page 14: Specifications
0 to 100% rel. humidity (RH), 0.04% RH, typ. 0.2% RH Range, Resolution, Accuracy Digital interface UART with 3.3V levels (5V tolerant), 115 200 baud, 8 at extension port X1 (7 pins) data bit, 1 stop bit, no parity, no handshake © PyroScience GmbH... - Page 15 FireSting®-PRO | User Manual Connector plug port X1 Phoenix Contact, item no. 1778887 Analog output (4 channels) 0 to 2.5 VDC at extension port X2 (5 pins) 14-bit resolution Connector plug port X2 Phoenix Contact, item no. 1778861 © PyroScience GmbH...
-
Page 16: Related Documents
FireSting®-PRO | User Manual RELATED DOCUMENTS Detailed instructions for using the Pyro Workbench and application of optical oxygen, pH and temperature sensors: • manual for logger software "Pyro Workbench" (Windows) • manuals for optical sensors from PyroScience (oxygen, pH, temperature) © PyroScience GmbH... -
Page 17: Warnings & Safety Guidelines
Keep the sensors and the fiber-optic meter FireSting®-PRO out of reach of children! © PyroScience GmbH... - Page 18 FireSting®-PRO | User Manual CONTACT PyroScience GmbH Tel.: +49 (0)241 5183 2210 Hubertusstraße 35 Fax: +49 (0)241 5183 2299 52064 Aachen info@pyroscience.com Deutschland www.pyroscience.com www.pyroscience.com...
