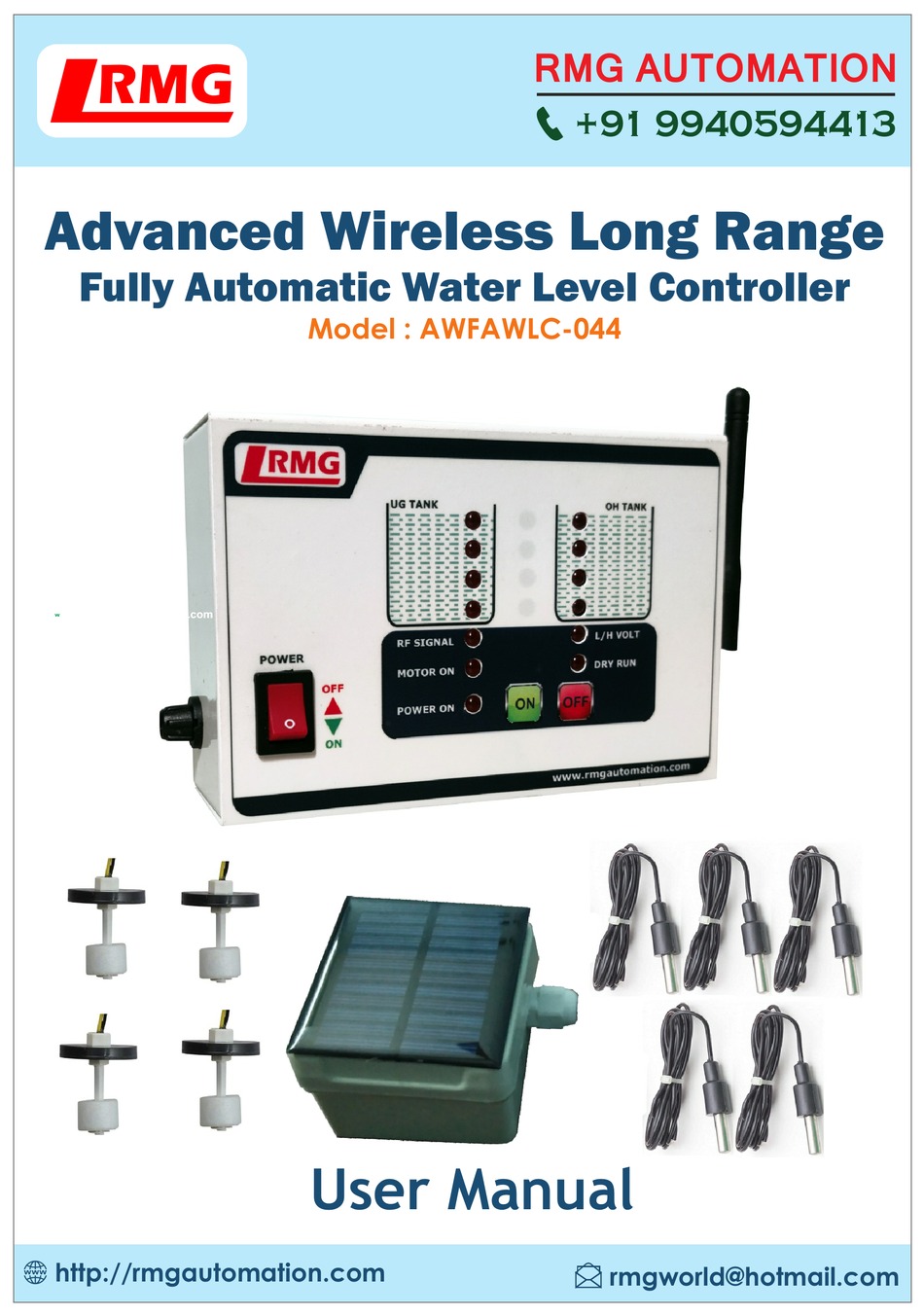

- Page 1 RMG AUTOMATION +91 9940594413 Advanced Wireless Long Range Fully Automatic Water Level Controller Model : AWFAWLC-044 www.rmgautomation.com User Manual http://rmgautomation.com rmgworld@hotmail.com...

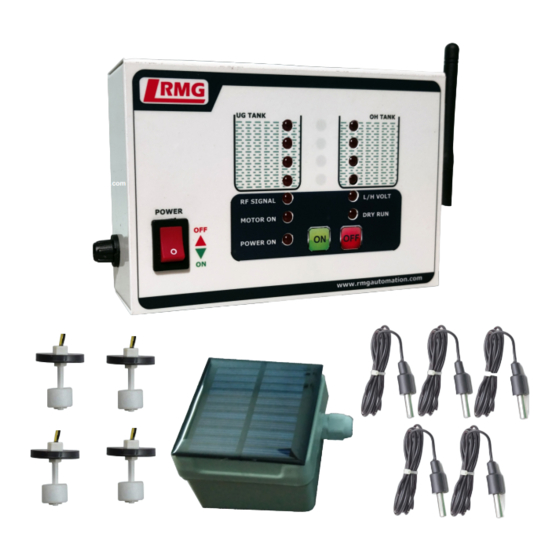

- Page 2 1. INTRODUCTION Water saving is Lifesaving. RMG Automation introduces an automated way to save water. AWFAWLC-044 is a Radio Frequency Based Wireless Water Level Controller with Indicators, in which it helps to ascertain the level of water in the over head tank & sump as well as automatically control the motor pump. The motor is switched ON automatically when the water level in the over head tank is low, making sure water is present in the under ground tank (sump).
- Page 3 4. INSTALLATION PROCEDURE Caution: Switch off the main power while doing the Power Connection. Step 1: Wall mount the Controller unit nearby motor pump switch/starter location. The location chosen should be near the window or in open space to ensure good signal strength.
- Page 4 5. OPERATING PROCEDURE Power ON the controller unit. Ÿ Depending upon the water level in tanks, the level indication LEDs are ON. Ÿ If the water level goes low, controller automatically TURNS ON the motor (only Ÿ when sump has water), during this time MOTOR ON LED glows. When the tank becomes full, controller unit automatically TURNS OFF the motor.
