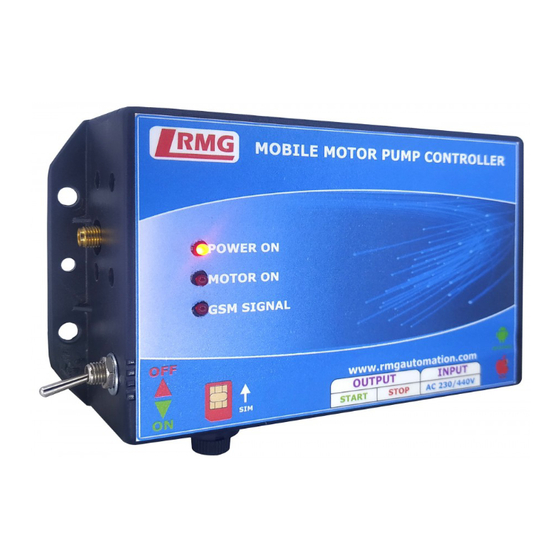

Single / three phase gsm mobile motor pump controller (or) mobile motor starter

Advertisement

RMG AUTOMATION
RMG
+91 9940594413
Single / Three Phase GSM
Mobile Motor Pump Controller
(or) Mobile Motor Starter
Model : GSM 3ST
User Manual
http://rmgautomation.com
rmgworld@hotmail.com

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GSM 3ST and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RMG GSM 3ST

  • Page 1 RMG AUTOMATION +91 9940594413 Single / Three Phase GSM Mobile Motor Pump Controller (or) Mobile Motor Starter Model : GSM 3ST User Manual http://rmgautomation.com rmgworld@hotmail.com...
  • Page 2 1. INTRODUCTION Our GSM Pump Controllers (Mobile Pump Starter) are very unique and specially designed for farmers, agriculturists and industries to operate and monitor remotely located motor pumps. They can switch ON and switch OFF the motor pumps from their homes or anywhere by using a SMS / CALL / Android Application.
  • Page 3 4. INSTALLATION PROCEDURE Caution: Switch off the main power while doing the Power Connection steps. Step 1: Insert your GSM SIM in the SIM slot given as shown in the GSM controller. The GSM SIM that is used must support 2G and have a SMS plan. Step 2: Wall mount the GSM controller by using the screws in the given slots on its sides near your motor switch/starter location.
  • Page 4 5. OPERATING PROCEDURE Switch ON the controller using on/off switch of the controller. Ÿ Power ON LED lights up. Ÿ GSM Signal LED blinks every one second trying to get connected to the Ÿ network. Further, it blinks every 3 seconds ensuring that the GSM unit has been connected to the network.
  • Page 5 6. LIST OF SMS COMMANDS EXAMPLE DESCRIPTION COMMAND It denotes the Power ON time It will switch OFF the motor pump It will switch ON the motor pump It gives the ON/OFF status of your motor pump It Disables AUTO ON operation. It will not Switch ON the motor pump when the power resumes It Enables AUTO ON operation.
  • Page 6 7. TROUBLE SHOOTING METHODS Error Solutions Power fail a. Check whether input supply is correctly given. b. Check whether the GSM power switch position is “ON” Check fuse is in good condition. If fuse is failed or burnt replace it with 300 Milliamps. Don't use more than that. Motor not Start Relay: switching...
