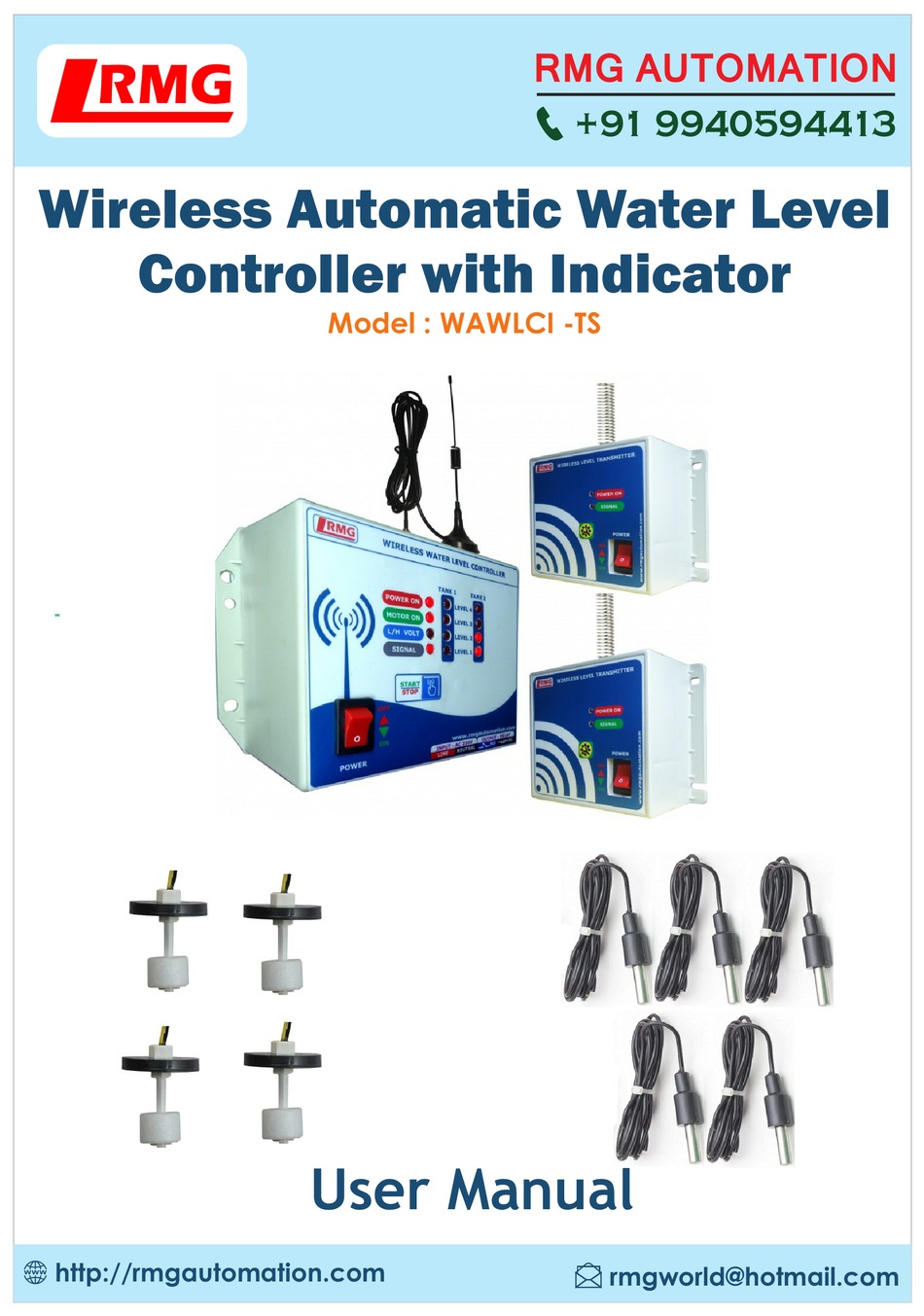

- Page 1 RMG AUTOMATION +91 9940594413 Wireless Automatic Water Level Controller with Indicator Model : WAWLCI -TS www.rmgautomation.com User Manual http://rmgautomation.com rmgworld@hotmail.com...

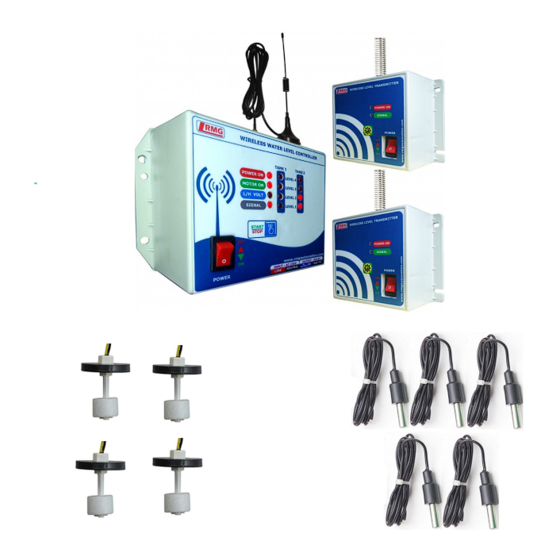

- Page 2 1. INTRODUCTION Water saving is much important in this busy world to keep our generations water sufcient. RMG Automation introduces its latest model of wireless automatic water level controller with indicator gives a way to implement controlling water level and free us from hassles of lengthy wiring. WAWLCI-TS is a Radio Frequency Based Wireless Water Level Controller with four level Indicators for each tank.
- Page 3 4. INSTALLATION PROCEDURE Caution: Switch off the main power while doing the Power Connection. Note: Before taking the transmitter to the tank areas, give Input AC Supply to controller and transmitter and join the sensors lines in each transmitter and identify the tank transmitter and sump transmitter.
- Page 4 5. OPERATING PROCEDURE Switch ON Power button of both controller and transmitter units, now POWER Ÿ ON LED will glow in the both units. SIGNAL LEDs in both units blinks in every 16 seconds conrming that proper communication is established. Depending upon the water levels in each tank, the level indication LEDs are ON.
