Automatic Water Level Controller for Tank only
These controllers do not need operator for performing start and stop operations. This
automatic water level controller will switch ON the motor when the water level in the tank
becomes low and will switch OFF the motor once the tank becomes full.
Description:
Power ON LED indication is provided.
 Below the Power ON indication is the motor ON indication.
 The motor gets switched ON automatically when the water level in the tank becomes
low.
 The tank starts filling up. When the water reaches the higher level, the TANK FULL LED
indication goes ON and the motor automatically gets switched OFF. Motor ON LED
indication goes OFF.
 Manual / Auto mode switch is provided.
Parts of Controller:
AC 230V
INPUT
RELAY 1 (Blue Pair)
Web: www.rmgautomation.com
AWLC-110-000 Switch/MCB Model- Installation Manual
Power Connection
Phase
Neutral
eMail: rmgworld@hotmail.com
Sensor Connection

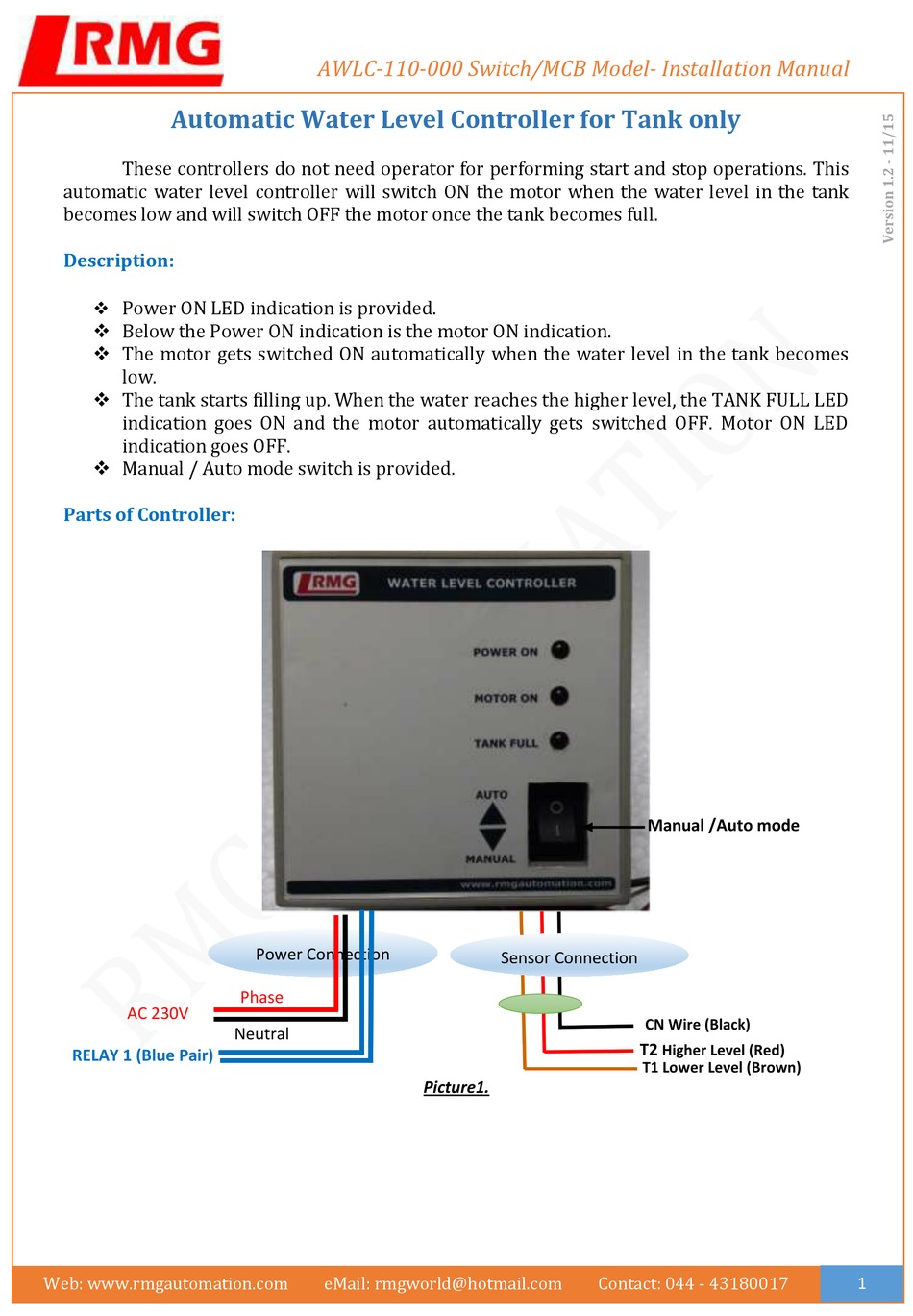

Picture1.
Manual /Auto mode
CN Wire (Black)
T2
Higher Level (Red)
T1 Lower Level (Brown)
Contact: 044 - 43180017
