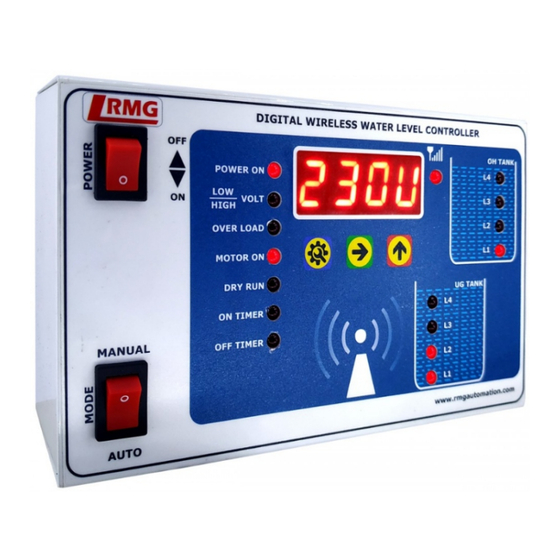

- Page 1 RMG AUTOMATION +91 9940594413 Digital Wireless Fully Automatic Water Level Controller Model : DWFAWLC - 044 User Manual http://rmgautomation.com rmgworld@hotmail.com...
- Page 2 1. INTRODUCTION RMG automation introduces a brand new product which is remarkably convenient for the users, which is Digital Wireless Water Level Controller with Indicator. This is “All in One” product. It has combined features of timer, water level controller and wireless in communication with digital display.
-
Page 3: Tools Required
CT COIL: It helps to sense the current consumption of the motor. Manual/Auto mode switch: Auto mode: In AUTO mode, motor will automatically switch ON when the water level in the tank is low and automatically switch OFF when the tank becomes full. - Page 4 AC230V COIL Remove this wire water Yellow )100% Inlet Orange )75% (Red)50% 1Φ motor (Brown)25% (Black)CN Figure3: 1Φ Starter Figure4: Contact type sensor connection T4 100% (Green& Black) water Inlet T3 75% (Yellow & Black) T2 50% (Orange & Black) T1 25% (Red &...
-
Page 5: Operating Procedure
4. OPERATING PROCEDURE Keep the Manual/Auto mode switch in Auto mode for automatic operation. Ÿ Turn on the Power On/OFF switch. Power ON LED will glow. Ÿ Depending upon the water level in tank, level indicator LEDs will be ON. Ÿ... -
Page 6: Trouble Shooting Methods
Error Solutions Device dead / a. Check the power connection wires for loose contacts. Not Powered b. If problem continues, contact RMG Automation for support Tank level a. In the controller unit, join common terminal with a indicator small wire to other terminals one by one and verify the LEDs are off tank LEDs are glowing. -
Page 7: Programming Methods
Whenever controller gets power, it starts doing the normal BLINKS POWER ON DELAY TIME operation after the POWER ON DELAY TIME is over. SET THE VALUE Display will blink RMG for the set time. MOVE TO NEXT NEXT SEGMENT NEXT...
