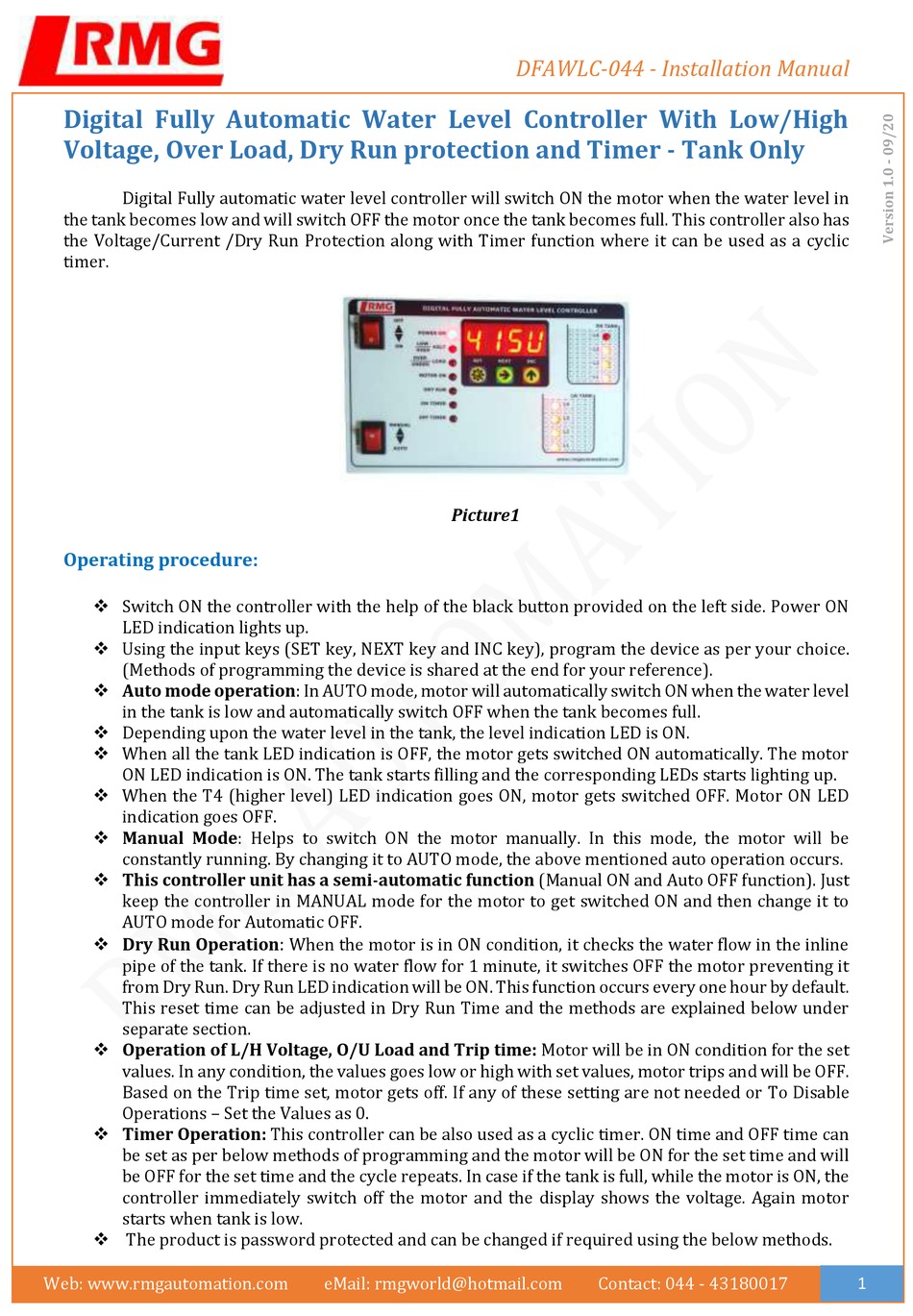

RMG DFAWLC-044 Installation Manual

Digital Fully Automatic Water Level Controller With Low/High
Voltage, Over Load, Dry Run protection and Timer - Tank Only
Digital Fully automatic water level controller will switch ON the motor when the water level in
the tank becomes low and will switch OFF the motor once the tank becomes full. This controller also has
the Voltage/Current /Dry Run Protection along with Timer function where it can be used as a cyclic
timer.
Operating procedure:
 Switch ON the controller with the help of the black button provided on the left side. Power ON
LED indication lights up.
 Using the input keys (SET key, NEXT key and INC key), program the device as per your choice.
(Methods of programming the device is shared at the end for your reference).
 Auto mode operation: In AUTO mode, motor will automatically switch ON when the water level
in the tank is low and automatically switch OFF when the tank becomes full.
 Depending upon the water level in the tank, the level indication LED is ON.
 When all the tank LED indication is OFF, the motor gets switched ON automatically. The motor
ON LED indication is ON. The tank starts filling and the corresponding LEDs starts lighting up.
 When the T4 (higher level) LED indication goes ON, motor gets switched OFF. Motor ON LED
indication goes OFF.
 Manual Mode: Helps to switch ON the motor manually. In this mode, the motor will be
constantly running. By changing it to AUTO mode, the above mentioned auto operation occurs.
 This controller unit has a semi-automatic function (Manual ON and Auto OFF function). Just
keep the controller in MANUAL mode for the motor to get switched ON and then change it to
AUTO mode for Automatic OFF.
 Dry Run Operation
pipe of the tank. If there is no water flow for 1 minute, it switches OFF the motor preventing it
from Dry Run. Dry Run LED indication will be ON. This function occurs every one hour by default.
This reset time can be adjusted in Dry Run Time and the methods are explained below under
separate section.
 Operation of L/H Voltage, O/U Load and Trip time: Motor will be in ON condition for the set
values. In any condition, the values goes low or high with set values, motor trips and will be OFF.
Based on the Trip time set, motor gets off. If any of these setting are not needed or To Disable
Operations – Set the Values as 0.
 Timer Operation: This controller can be also used as a cyclic timer. ON time and OFF time can
be set as per below methods of programming and the motor will be ON for the set time and will
be OFF for the set time and the cycle repeats. In case if the tank is full, while the motor is ON, the
controller immediately switch off the motor and the display shows the voltage. Again motor
starts when tank is low.
 The product is password protected and can be changed if required using the below methods.
Web: www.rmgautomation.com
:
When the motor is in ON condition, it checks the water flow in the inline
eMail: rmgworld@hotmail.com
DFAWLC-044 - Installation Manual
Contact: 044 - 43180017
1
