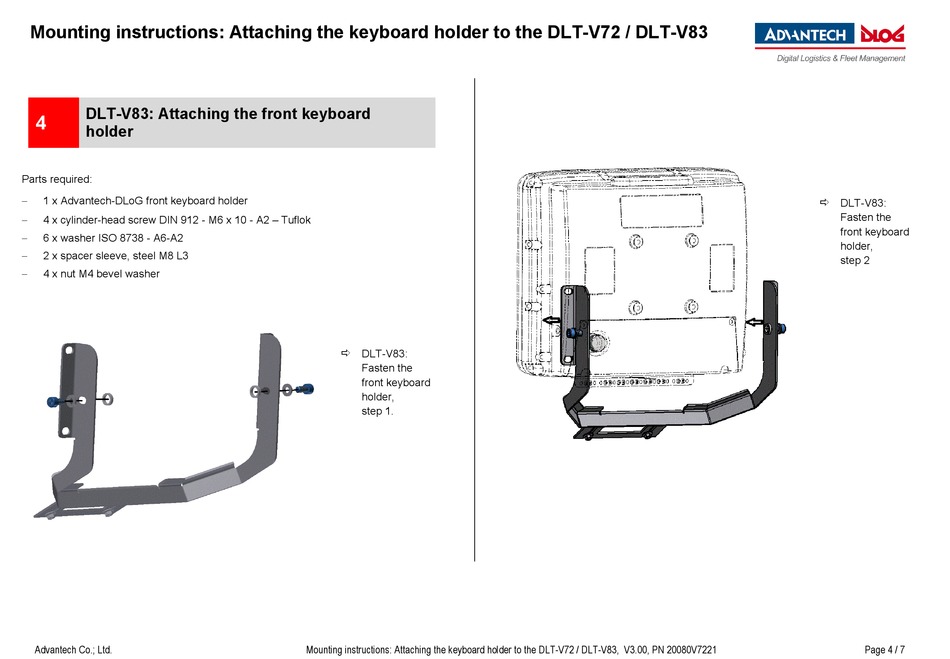

Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
DLT-V83: Attaching the front keyboard
4
holder
Parts required:
− 1 x Advantech-DLoG front keyboard holder
− 4 x cylinder-head screw DIN 912 - M6 x 10 - A2 – Tuflok
− 6 x washer ISO 8738 - A6-A2
− 2 x spacer sleeve, steel M8 L3
− 4 x nut M4 bevel washer
Advantech Co.; Ltd.
DLT-V83:

Fasten the
front keyboard
holder,
step 1.
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221
 DLT-V83:
Fasten the
front keyboard
holder,
step 2
