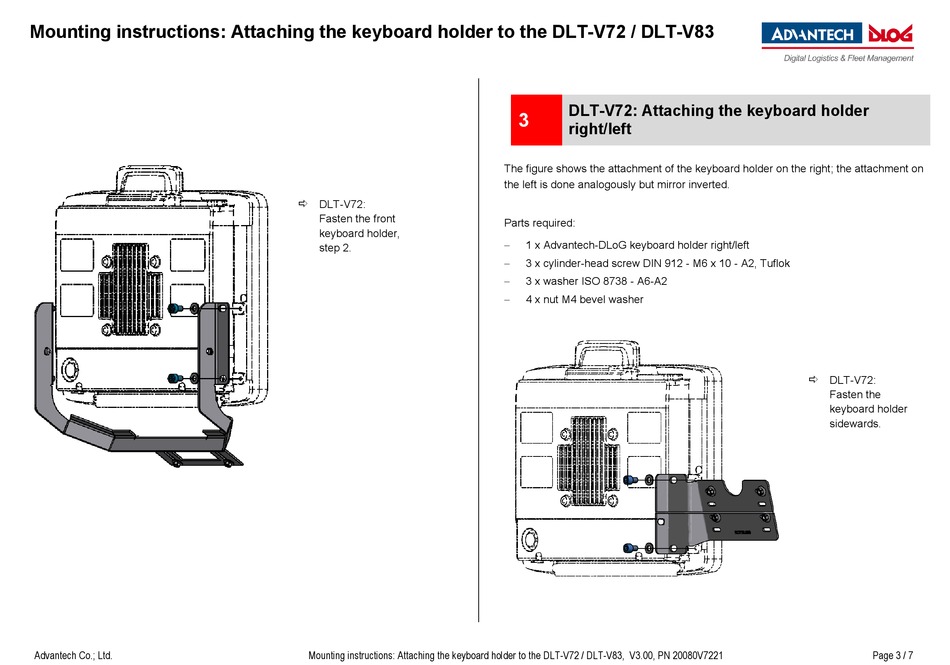

Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
Advantech Co.; Ltd.
 DLT-V72:
Fasten the front
keyboard holder,
step 2.
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221
DLT-V72: Attaching the keyboard holder
3
right/left
The figure shows the attachment of the keyboard holder on the right; the attachment on
the left is done analogously but mirror inverted.
Parts required:
1 x Advantech-DLoG keyboard holder right/left
−
3 x cylinder-head screw DIN 912 - M6 x 10 - A2, Tuflok
−
3 x washer ISO 8738 - A6-A2
−
4 x nut M4 bevel washer
−
 DLT-V72:
Fasten the
keyboard holder
sidewards.
