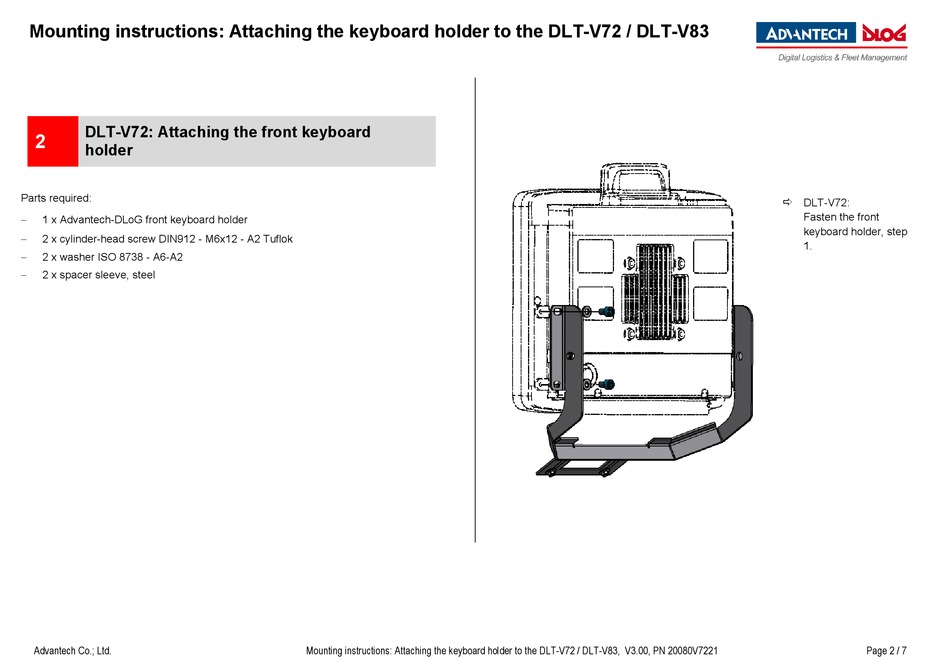

Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83
DLT-V72: Attaching the front keyboard
2
holder
Parts required:
−
1 x Advantech-DLoG front keyboard holder
2 x cylinder-head screw DIN912 - M6x12 - A2 Tuflok
−
2 x washer ISO 8738 - A6-A2
−
2 x spacer sleeve, steel
−
Advantech Co.; Ltd.
Mounting instructions: Attaching the keyboard holder to the DLT-V72 / DLT-V83, V3.00, PN 20080V7221
DLT-V72:
Fasten the front
keyboard holder, step
1.
Page 2 / 7
