Connecting the Probe

The steps below explain how to safely connect the probe to the
HDV700. Always turn the HDV700 power off before replacing the
probe.

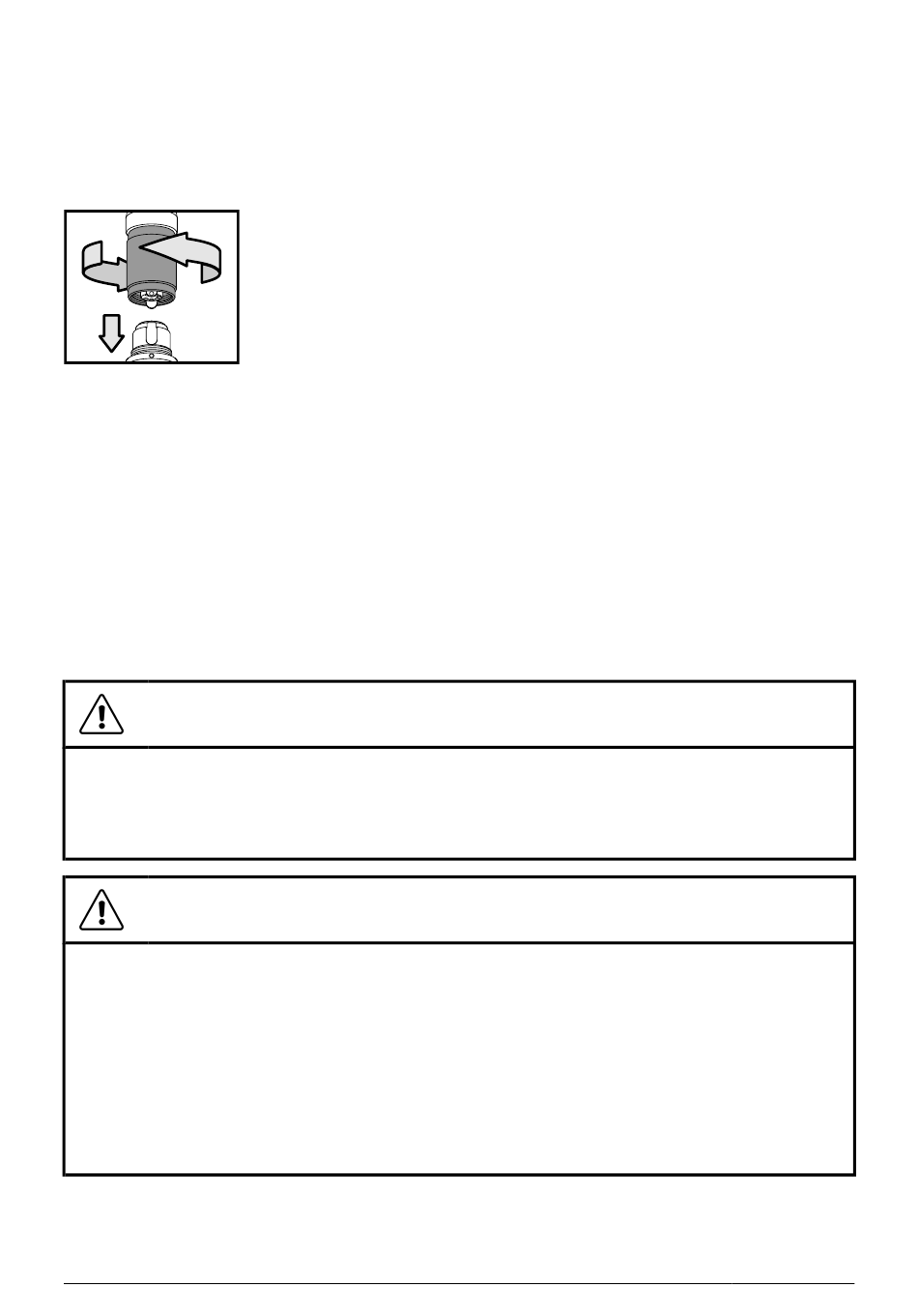

1. Align the white dot on the probe connector with the white dot on
the monitor connector.
2. Plug the probe into the monitor unit, ensuring proper alignment
and full insertion.
3. Tighten the collar nut to secure the connection. Do not
overtighten.
Safety
Please read and understand all safety cautions before use.
CAUTION
Do not insert the probe into flammable liquid or gas.
This product is designed for industrial use only. It is not intended for use in hu-
man or other biological inspection.
CAUTION
To clean the probe, wipe with a soft cloth dampened with a mild detergent and
clean water. Do not use abrasives, corrosives (alcohol), or solvents to clean
the probe. Use a high quality lens cleaning fluid and a lint-free swab to clean
the camera and worklight lenses.
Do not disassemble the product, damage to the product and electrical shock
may occur.
Avoid direct sun exposure. Store in a cool, dry, and well-ventilated area.
