Introduction
This probe is designed for use with the HDV700 High Definition Vid-
eoScope. The probe is controlled by its three physical buttons and
the touch-screen icons on the HDV700. The HDV700 user manual
and additional translations of this probe manual are available from
the support site (see the Support section).
Please update the HDV700 firmware before use, as explained in
the HDV700 manual. This will ensure optimal functionality and com-
patibility with your camera probe.
The HDV700 offers many useful and convenient features including
capturing still images and video, changing camera views, and con-
trolling worklights. Please refer to the HDV700 user manual for
complete information.

Probe Description

The camera probe head is 0.2 inches (5.5 mm) in diameter and its
probe length is 9.8 ft (3 m). The camera resolution is 640 x 480
pixels.
#NAS100124; r. AB/87921/87926; en-US

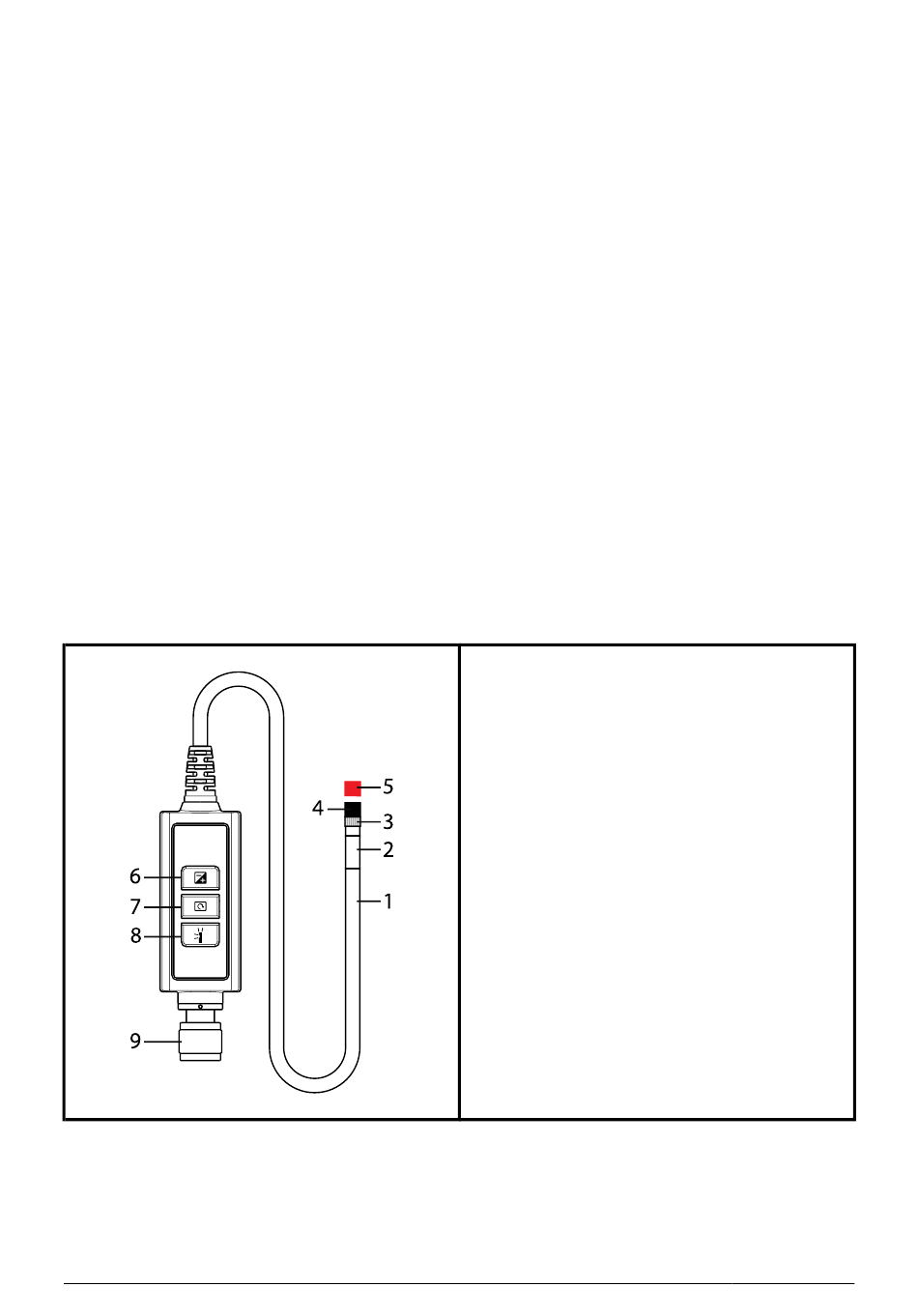

1. Probe body
2. Camera head
3. Accessory attachment ring (un-
used in this model)
4. Protective threaded ring
5. Camera lens cap
6. BOOST button
7. ROTATE button
8. PARTICLE FILTER button
9. Connect to HDV700
1
