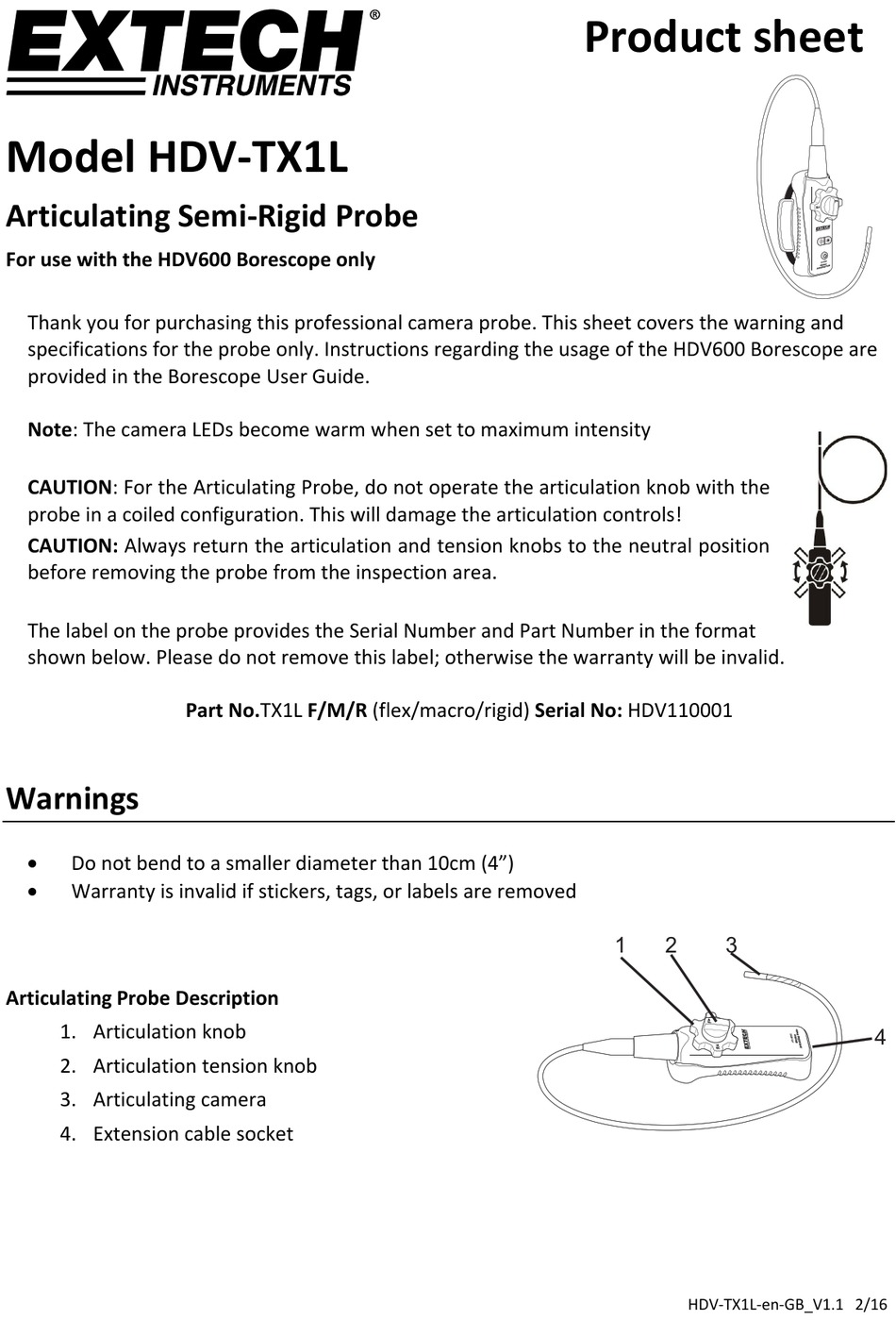

Model HDV‐TX1L
Articulating Semi‐Rigid Probe
For use with the HDV600 Borescope only
Thank you for purchasing this professional camera probe. This sheet covers the warning and
specifications for the probe only. Instructions regarding the usage of the HDV600 Borescope are
provided in the Borescope User Guide.
Note: The camera LEDs become warm when set to maximum intensity
CAUTION: For the Articulating Probe, do not operate the articulation knob with the
probe in a coiled configuration. This will damage the articulation controls!
CAUTION: Always return the articulation and tension knobs to the neutral position
before removing the probe from the inspection area.
The label on the probe provides the Serial Number and Part Number in the format
shown below. Please do not remove this label; otherwise the warranty will be invalid.
Warnings
Do not bend to a smaller diameter than 10cm (4")
Warranty is invalid if stickers, tags, or labels are removed

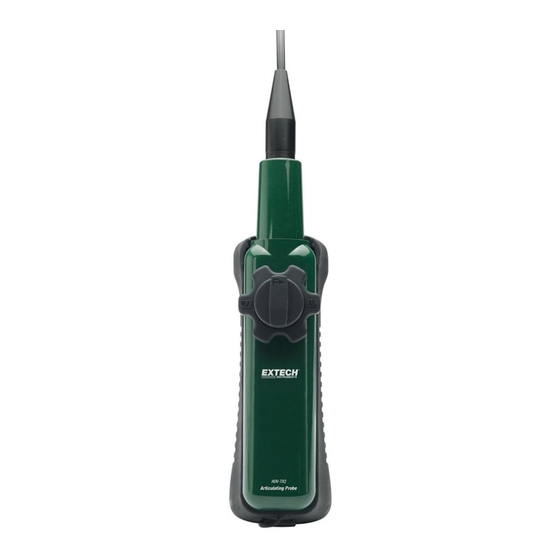

Articulating Probe Description
1. Articulation knob
2. Articulation tension knob
3. Articulating camera
4. Extension cable socket
Part No.TX1L F/M/R (flex/macro/rigid) Serial No: HDV110001
Product sheet
1
2
3
HDV‐TX1L‐en‐GB_V1.1 2/16
4
Advertisement
Table of Contents
Related Manuals for Extech Instruments HDV-TX1L
Summary of Contents for Extech Instruments HDV-TX1L
- Page 1 Product sheet Model HDV‐TX1L Articulating Semi‐Rigid Probe For use with the HDV600 Borescope only Thank you for purchasing this professional camera probe. This sheet covers the warning and specifications for the probe only. Instructions regarding the usage of the HDV600 Borescope are provided in the Borescope User Guide. Note: The camera LEDs become warm when set to maximum intensity CAUTION: For the Articulating Probe, do not operate the articulation knob with the probe in a coiled configuration. This will damage the articulation controls! CAUTION: Always return the articulation and tension knobs to the neutral position before removing the probe from the inspection area. The label on the probe provides the Serial Number and Part Number in the format shown below. Please do not remove this label; otherwise the warranty will be invalid. Part No.TX1L F/M/R (flex/macro/rigid) Serial No: HDV110001 Warnings Do not bend to a smaller diameter than 10cm (4”) Warranty is invalid if stickers, tags, or labels are removed Articulating Probe Description 1. Articulation knob 2. Articulation tension knob 3. Articulating camera 4. Extension cable socket ...
- Page 2 Articulation Setup and Orientation The articulation direction and orientation may change if the probe is twisted and coiled during use or when stored. To re‐orient the probe: Place the extended probe on a flat surface Set the tension “F” knob to the left or released position. Set the articulation knob to the center position with the R Δ and Δ L labels in the horizontal position. Manually adjust the probe and camera to the zero degree position. Rotate the articulation knob clockwise for a 120° bend. If necessary, manually adjust the probe so that the camera lays flat on RΔ ΔL the surface with a 120° articulation Rotate the articulation knob counter‐clockwise and confirm proper orientation. Specifications Resolution 640 x 480 pixels Length 1m (3.3’) Outer diameter (O.D.) 6mm (0.24”) ∞ ∞ Focus distance (depth of field) 6cm to (2.36” to ) Housing Stainless Steel Field of View (FOV) 60º Number of LEDs 4 Lamp Output 3500 Lux at 20mm (0.8”) Operating Temperature ...
