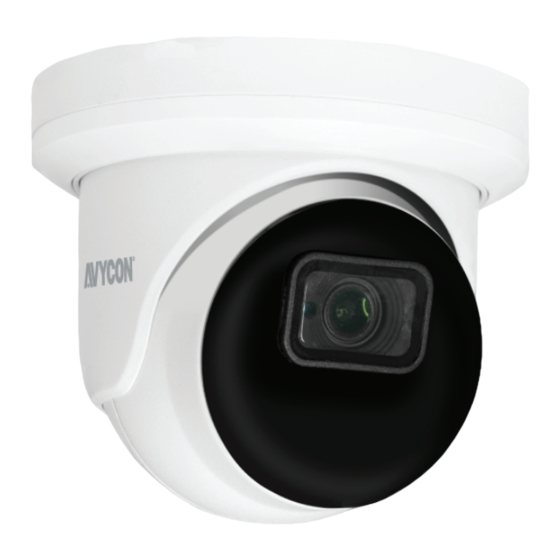

AVYCON AVC-TE81F28 Quick Start Manual

FIXED TURRET DOME CAMERA
QUICK START GUIDE
HD Analog 2MP/5MP/8MP Cameras
HD-TVI / CVI / AHD / CVBS
CONTENTS
2
Introduction
3
Safety Instructions
4
Installation
5
Setup Diagram
6
Package Contents
7 Resources
INTRODUCTION
Thank you for purchasing our product. We make every effort to
update and ensure accuracy of the information contained in this
manual, which may be subject to change from time to time
without prior notice. For any questions or needs, please feel free
to contact us at any time.
SAFETY INSTRUCTIONS
1) Please comply with the power supply specifications as required
for this equipment and select the correct power supply.
2)
In the case that equipment fails to operate properly, immediately
contact the manufacturer or the nearest service center. Please
do not attempt to disassemble the product or attempt to modify
the product in any manner, which may void warranty.
3) For cleaning of the lens, be sure to use compressed air or a
dedicated lens cleaner. For cleaning of the plastic shield, use a
soft and dry microfiber cloth to wipe it. Do not use any detergents
containing alcohol or benzene.
4) Do not drop any object onto the device or knock heavy objects
onto the equipment.
5) Do not put the camera toward any strong light source (including
lighting lamp or sun), which may cause over-exposure or light
leakage (not due to defect of the product) and impair useful life
of the camera.
6) Avoid use of the equipment in any environment other than as
suggested in this manual.
7) Prevent water or any other liquid from flowing into the equipment.
8) For replacement of any parts, contact the distributor. Changing
any parts in the device without authorization is not permitted and
may void warranty.
OPERATING ENVIRONMENT
1
Power Supply
Temperature
Humidity
Altitude
Atmosphere
INSTALLATION
2
1. Place mounting template sticker in area where you will be
mounting camera to surface that can sustain weight of camera.
3
Sticker
2. Remove the ring off the camera by rotating it down to separate
from magnets.
FIXED TURRET DOME CAMERA
DC12V±10%
-30°C~60°C
10%~95%
-60m~3000m
86kpa~106kpa
4
Ring
