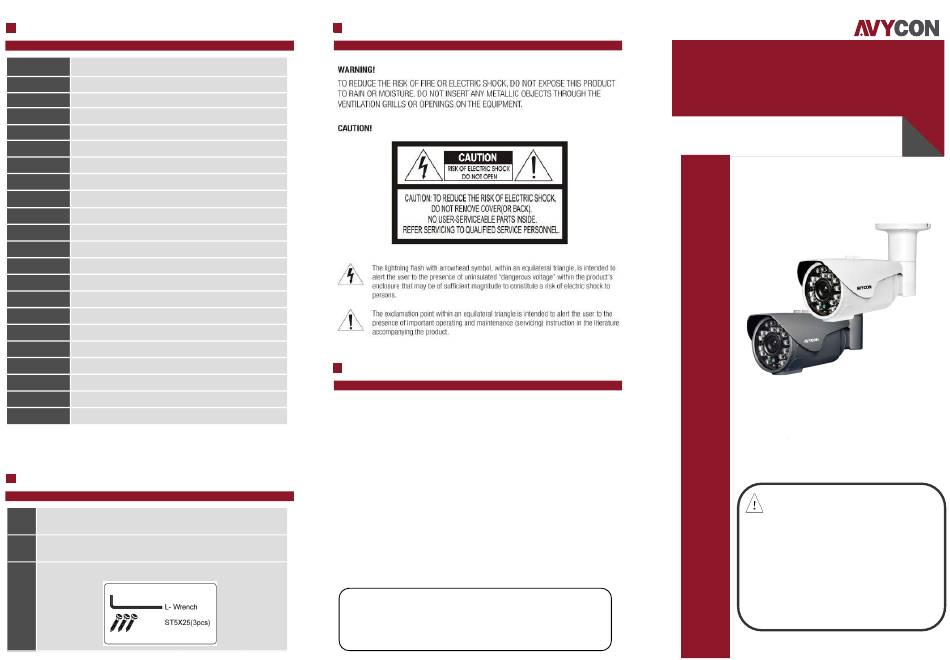

AVYCON AAVC-BH71F Manual

Specification
Model AVC-BH71F / AVC-BH71F-W
Image Sensor 1/3" SONY 1.4 Megapixel CMOS Sensor
Horizontal
1000 TV Lines (720P)
Resolution
Effective
[NTSC] 1305(H) x 1094(V)
Pixels
Day/Night
YES
Functionality
Lens Type 3.6mm Fixed Lens
￠5 x 24
# of IR LED's
IR LED's
Up to 60 ft
Distance
CDS Auto Control
IR Power On
2:1 Interlace
Scanning System
Sync System Internal
Electronic Shutter
1/60 ~ 1/100,000(N)
(sec.)
1.0 Vp- p Composite, 75 Ω
Main Video Output
S/N Ratio More than 52dB (AGC Off)
Gamma
0.45
Correction
Internal
ESC
Gain Control AGC (Auto)
Weight (g) 800 g
Storage
22°F ~ 140°F ( - 30°C ~ 60°C) Max. 95% RH
Temperature
Operating
23°F ~ 113°F ( 5°C ~ 45°C) Max. 95% RH
Temperature
Power Consumption 12VDC (+/-10%) / 500mA
Input Voltage 12VDC
*Design and specifications are subject to change without prior notice.
Composition
1.
AVC-BH71F / AVC-BH71F-W
2.
Installation Manual
3.
Assembly & Mounting Accessories
Warning
Regulatory Notice
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1)This device may not cause harmful interfer-
ence, and (2)this device must accept any interference received, including
interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a Class
A digital device, pursuant to Part 15 of the FCC Rules. These limits are de-
signed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy, and if not installed and use in accordance with the instruc-
tions, may cause harmful interference to radio communications. Operation of
this equipment in a residential area is likely to cause interference, in which
case the user will be required to correct the interference at their own expense.
WARNING: Changes or modifications not expressly approved by the manufac-
turer could void the user's authority to operate the equipment.
CAUTION: When this camera is installed near equipment, like a wireless
communication device that emits a strong electromagnetic field, some irregu-
larity such as noise on the monitor screen may happen.

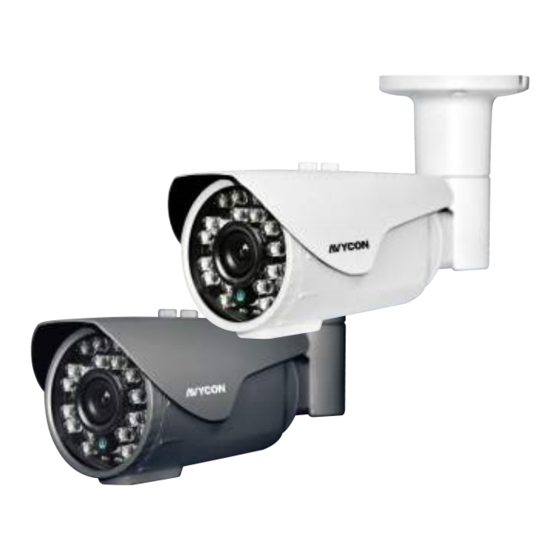

IR BULLET CAMERA
Color Weatherproof 1000TVL IR Bullet Camera
AAVC-BH71F / AVC-BH71F-W
IMPORTANT INFORMATION:
● Must use specified and regulated 12VDC
power supply.
● Must use correct DC type plug for power lead. If
cables coming out of the camera are spliced,
Warranty will be voided.
● Do not face the camera directly to a strong light
as it will damage the CCD and cause malfunction-
ing of the camera.
