2.1 Board Topology

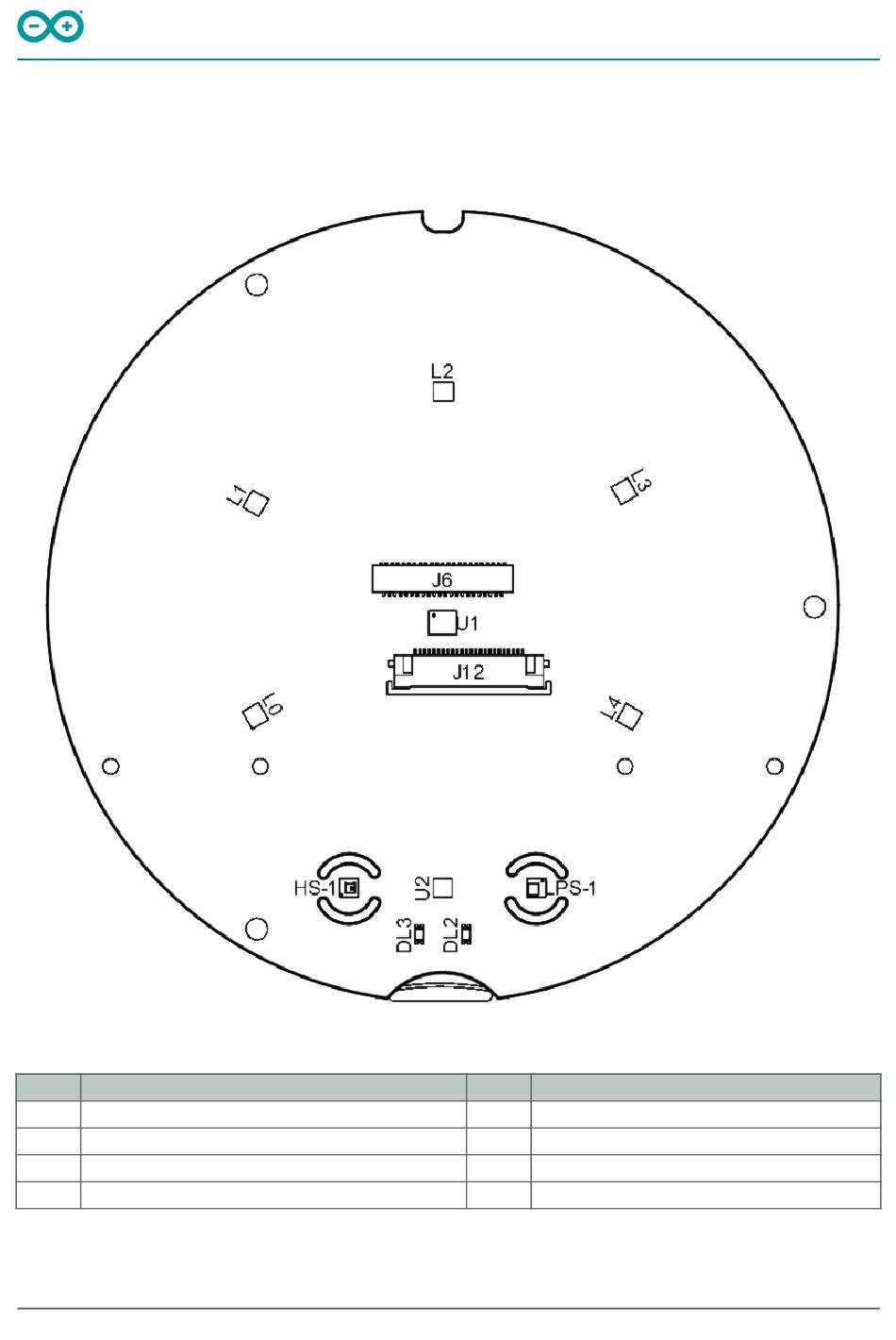

2.1.1 Front View

Ref. Description
U1 LSM6DS3 6-axis IMU IC
U2 APDS-9660 RGB and Gesture Sensor IC
LPS-1 LPS22HBTR Pressure Sensor IC
J6 FH26W-45S-0.3SHW(60) Display Connector
7 / 18
Arduino® MKR IoT Carrier
Front view
Ref.
U3
HS-1
L0-L4
J12
Arduino® MKR IoT Carrier
Description
LV52204MTTBG LED Boost Driver IC
HTS221 Humidity Sensor IC
APA1022020-2018 RGB LED IC
SFV24R-1STBE1HLF Display Connector
