Absco Space Saver Shed
Assembly Instructions
Model: J30152S
ASSEMBLY INSTRUCTION - MODEL: J30152S 25/02/14

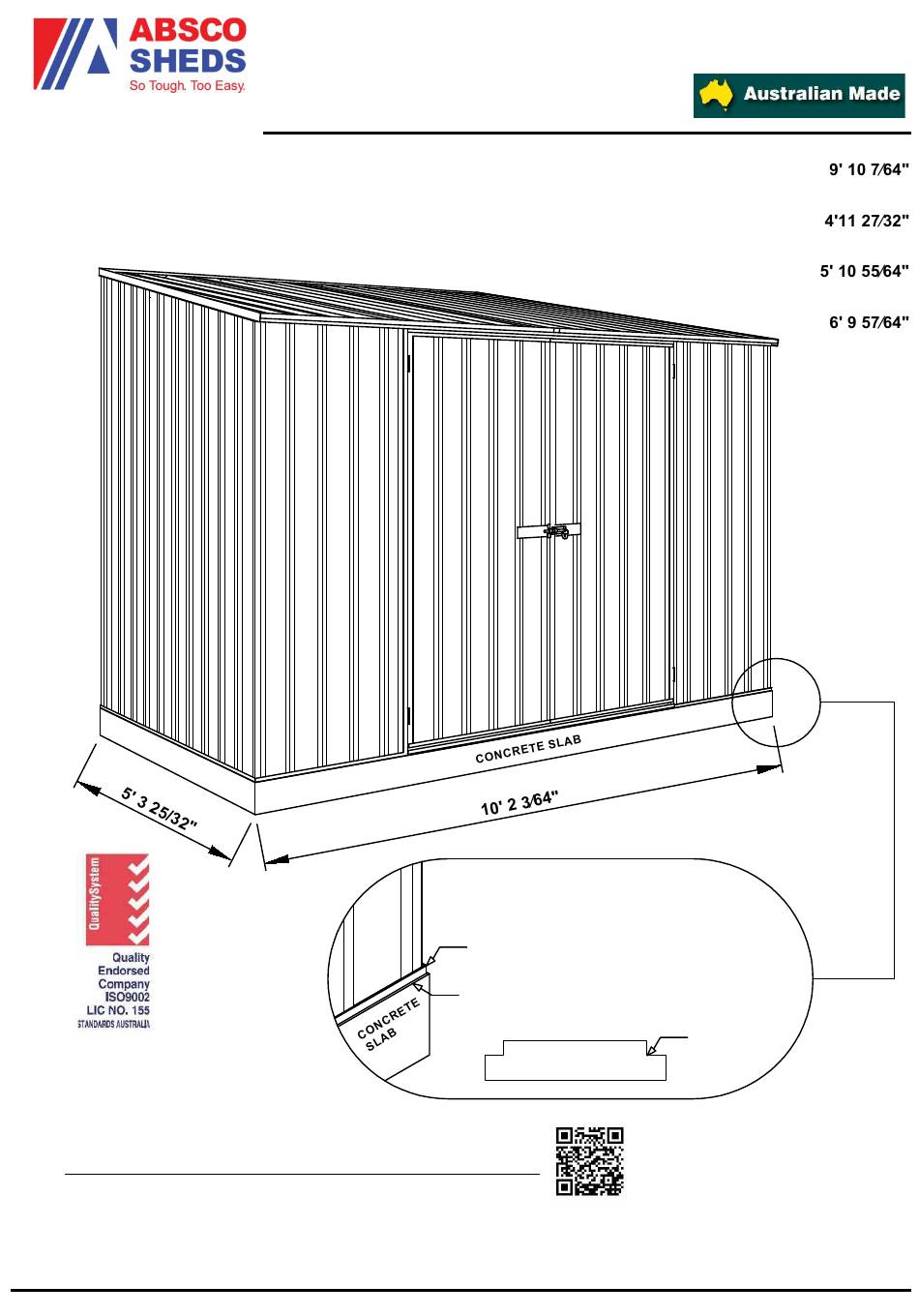

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 1" DEEP AROUND THE PERIMETER
CHANNEL
THIS WILL HELP
WATER EGRESS FROM
REBATED EDGE
THE BASE OF THE SHED
CONCRETE SLAB
FRONT BASE LENGTH:
SIDE BASE LENGTH:
FRONT WALL HEIGHT:
REAR WALL HEIGHT:
3" WIDE
REBATE
PAGE 1
