Absco Industries
Assembly Instruction Manual

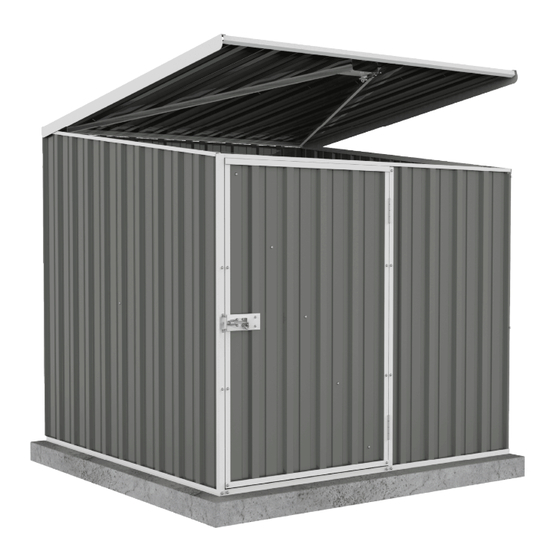

ABSCO POOL PUMP COVER
MODEL: PPCK
1.52mW x 1.52mD x 1.49mH
admin@absco.com.au
www.abscosheds.com.au
Model: PPCK
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
27/4/23
1.0
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS PPCK
Summary of Contents for ABSCO SHEDS PPCK
- Page 1 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH AU: 1800 029 701 admin@absco.com.au N Z: 0800 466 444 www.abscosheds.com.au DOWNLOAD PLEASE LEAVE A REVIEW OUR APP FOR ASSEMBLY Tell us about your experience! VIDEOS Visit www.abscosheds.com.au/review Absco Industries...
- Page 2 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
-
Page 3: Components List
ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH COMPONENTS LIST DESCRIPTION PART # DESCRIPTION PART # STEEL SHEET STEEL SHEET 1265 mm TO MIDPOINT 1460 x 773 mm x 773 mm STEEL SHEET STEEL SHEET 1395 mm TO MIDPOINT... - Page 4 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH FITTINGS PACK DESCRIPTION CHK QTY DESCRIPTION 64 mm PADBOLT FAST BUTT HINGE SUPPORT 012A 6 HOLE PLATE DOOR 8G x 3/4” SELF FAST PLATE TAPPING SCREW FAST SBS43E POP 3/16”...
-
Page 5: Component Overview
ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH COMPONENT OVERVIEW Most holes are prepunched. A 3mm drill bit is supplied for drilling holes where prepunching was not possible. Absco Industries Assembly Instruction Manual Model: PPCK 27/4/23... - Page 6 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
-
Page 7: Rear Panel Assembly
ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH REAR PANEL ASSEMBLY 1. Layout and overlap two PPB 1 required sheets by one rib as shown. You’ll need to turn one 180 degrees. Align them so the two rib holes overlap and the edge holes are to the outsides. - Page 8 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH LID PANEL ASSEMBLY 1. Overlap specified sheets as shown. Make sure ends are flush. Where possible, keep sheets in the same orientation from the box. 2. Fasten with self tapping screws through prepunched sheet-to-sheet holes on overlap.
- Page 9 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH LID PANEL ASSEMBLY CONTINUED Let’s assemble the lid bracing 5. Join all components at 20mm EDGE ON TOP prepunched locations as shown 15mm EDGE 6. Position the lid bracing on the AT THE BASE underside of lid as shown.
- Page 10 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH RIGHT PANEL ASSEMBLY 1. Layout and overlap the two sheets by one rib as shown. orientate them so the two rib holes overlap and angled end of the sheets are both to the top.
- Page 11 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH LEFT PANEL ASSEMBLY 1. Layout and overlap the two sheets by one rib as shown. orientate them so the two rib holes overlap and angled end of the sheets are both to the top.
-
Page 12: Front Panel Assembly
ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH FRONT PANEL ASSEMBLY 1. Take the PPF sheet and orientate with the ‘narrow pan’ to the left Place the 94A jamb with the wider face on top of the sheet. -
Page 13: Door Panel Assembly
ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH DOOR PANEL ASSEMBLY 1. Orientate the PPC sheet as shown. Sheet holes are exaggerated for 2. Attach the top and bottom illustrative purposes channels using the SNAP-TiTE method. Make sure you have the shorter,... - Page 14 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH DOOR PANEL ASSEMBLY CONTINUED Do these Take the 12A door plate and two first place it midway up the door panel. With the 3 mm drill bit make holes in the sheet using the door...
- Page 15 ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH DOOR PANEL ASSEMBLY CONTINUED 8. Now we’ll fit the door brace 91A to the inside of the door. Orientate it so the face with the holes is to the sheet.
-
Page 16: Wall Panel Assembly
ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH WALL PANEL ASSEMBLY 1. Attach the front panel to the right side panel. Open the door to make the front panel stand up on its own. Fasten with four 10mm self... -
Page 17: Final Assembly
ABSCO POOL PUMP COVER MODEL: PPCK 1.52mW x 1.52mD x 1.49mH FINAL ASSEMBLY 5. Move the lid into position Drill 4.5mm holes through the channel and sheet then secure with countersunk screws and nuts or pop rivets. Internal view of lid padbolt and closed door. - Page 18 Lifetime Warranty Statement This warranty against defects is given by: Absco Industries (ABN: 77 869 708 678) Address: PO Box 119 Acacia Ridge QLD 4110 Ph: 1800 029 701 Fax: 07 3344 1191 Email: admin@absco.com.au Date of issue: 18 November 2022 Details of Manufacturer’s Warranty This product comes with a Lifetime structural warranty from the date of purchase.
- Page 19 IMPORTANT 1. Manufacturer’s Disclosure This warranty against defects shall not apply in the following situations: A) Where the product is not assembled in accordance with the instructions provided in the product kit; B) Where the product is used to store corrosive materials such as fertilizer, chlorine etc; C) The warranty does NOT cover damage caused by storms, wind, rain, snow or poor foundations;...
