Absco Industries

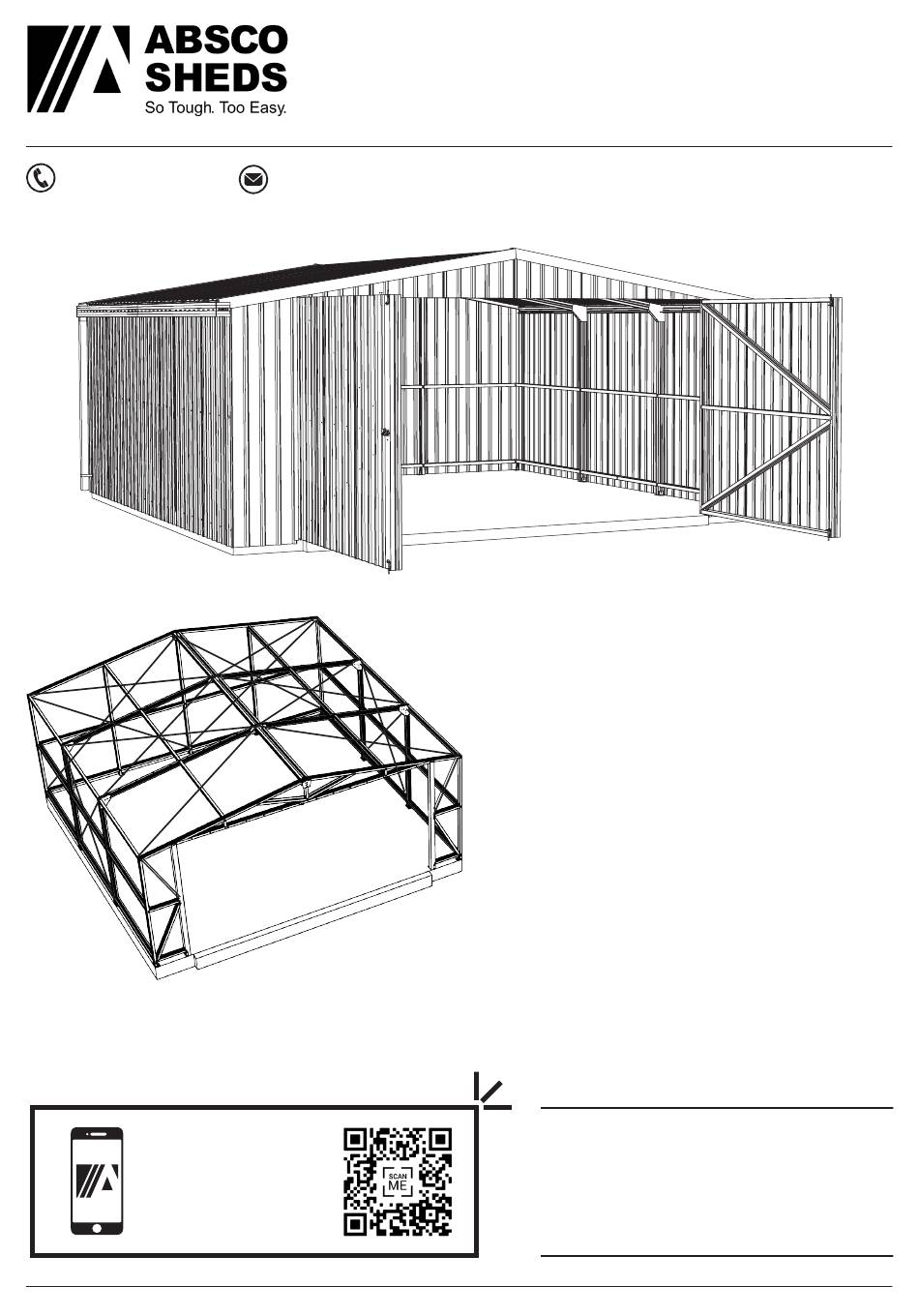

Assembly Instruction Manual
ABSCO COMPACT GARAGE
MODEL: CG56552N2
5.64m W x 5.49m D x 2.64m H
admin@absco.com.au
www.abscosheds.com.au
Model: CG56552N2
5.64 x 5.49 m x 2.64
Opening width: 4400mm
Opening height: 2210mm
Internal wall height: 2170mm
*You will need to contact a suitably qualified
professional to specify concrete slab or footings
for your site.
Brackets for securing the frame to either a
concrete slab or footings are included in this kit.
Anchors are not supplied.
Local authority approval must be obtained prior
to construction. Once you have selected your
site, draw a site plan and lodge your application
together with a copy of the engineering plans
located at the back of these instructions.
PLEASE LEAVE A REVIEW
Tell us about your experience!
Visit www.abscosheds.com.au/review
16/06/25
1
Advertisement
Table of Contents
Related Manuals for ABSCO SHEDS CG56552N2
Summary of Contents for ABSCO SHEDS CG56552N2
- Page 1 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H AU: 1800 029 70 1 admin@absco.com.au NZ: 0800 466 444 www.abscosheds.com.au 5.64 x 5.49 m x 2.64 Opening width: 4400mm Opening height: 2210mm Internal wall height: 2170mm...
-
Page 2: Tools Required
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Tools Required Tools Recommended BUILDERS’ STRING Safety Notes • Some parts and assemblies have sharp edges and/ or sharp corners. • The use of gloves and safety shoes is highly recommended. -
Page 3: Table Of Contents
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Steps To Construct Your Garage Identification of parts ..............Concrete slab/ footing details ............Rear frame assembly ..............Center frame assembly ..............Front frame assembly ..............Frame layout ................... -
Page 4: Identification Of Parts
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H 4. Missing parts To prevent damage in transit, some items are packed inside others. eg. some flashings may be inside channel sections, other items may be packed inside gutters, some roof sheets packed on top, some on the bottom etc. - Page 5 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Part Details (Sheet 2 of 6) 80mm x 40mm Galvanized Channel Framing Sections TWO SECTIONS SINGLE SECTION BOXED TOGETHER 8 8 0 0 One leg of the channel section is 2mm shorter than the other leg to allow two channel sections to be boxed together.
- Page 6 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H GUTTER 'L' ANGLE RIDGE FLASHING CAPPING BARN DOOR BARGE FLASHING CAPPING SHEET PACK COMPONENT COMPONENT PART No. CHK QTY PART No. CHK DESCRIPTION DESCRIPTION STEEL SHEET STEEL SHEET...
- Page 7 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Part Details (Sheet 5 of 6) EXTERNAL TRIM TYPE LENGTH CHECK RIDGE CAPPING TR08 3030 BARGE CAPPING TR34 3050 GUTTERS TR22 3030 BARN DOOR FLASHING TR21 3030...
- Page 8 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Part Details (Sheet 6 of 6) BRACKETS, PLATES AND ACCESSORIES (CONT.) DESCRIPTION CHECK DESCRIPTION CHECK GUTTER STOP ENDS MPB MULTI-PURPOSE - TR25 BRACKETS - BKT17 HEX HEAD TEK WITH...
-
Page 9: Concrete Slab/ Footing Details
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H CONCRETE SLAB AND FRAME LAYOUT DETAILS 5608 ATTENTION 1352 1352 1352 1352 This slab detail is used for illustrative purposes and may not be suitable for your specific site. - Page 10 (EG. Pozi drive) increases the risk of stripping the head of these screws. Some holes are pre-punched in Absco sheds’ frame sections, however the wide range of positions that most fasteners are required for means that the...
-
Page 11: Rear Frame Assembly
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Rear Frame Parts required: 80 x 40 Frame section. 2x M2833 Top chord 2x ZACO200 Purlin connection plate 2x C2150 Corner upright 2x C2633 Centre stud - to box... - Page 12 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H **2150 **1150 **140 Absco Industries Assembly Instruction Manual Model: CG56552N2 16/06/25...
-
Page 13: Internal Frame
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Internal Frame (2x required) Part No. Length Pre-Assembly Galvanised Channel C2069 2069 = 4x Box sections SINGLE SECTION C2832 2832 = 4x Box sections 4x Apex plates... - Page 14 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Internal Frame (continued) (2x required) Secure apex plates and knee plates to each side of the frame as shown. Use self drilling screws at every pre-punched location in both knee and apex plates.
-
Page 15: Front Frame Assembly
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Front Frame Parts required: 80 x 40 Channel 80x80 Channel 2x M2833 Top chords 2x Type 'H' Channel 2233mm for Door Mullions 2x C2150 Corner uprights 2x Purlin connection plates... - Page 16 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Front Frame (continued) others, including some pieces with different notching patterns. Apply ZACO222 to both sides, see engineering plans for further detail Same both sides Absco Industries...
-
Page 17: Frame Configuration
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Frame Configuration Fasten the MPB Brackets to the frames as shown below, while the frames are still laying on the ground Secure brackets to frame uprights with six self-drilling screws each. -
Page 18: Frame Construction
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Frame Construction 1. Rear Frame To secure each frame to the slab, move the frame to its marked position. Whilst one other person holds the frame in position. Mark the hole position of each upright, move the frame away enough to drill the slab for each anchor, move the frame back and secure in position. - Page 19 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Frame Construction Secure Front Frame Secure the front frame and side wall girts. 4 OFF: K1780. Fit the sidewall girts in the same manner as the rear frame, bending the inner tab 90 degrees.
-
Page 20: Fit Roof Purlins
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Secure Roof Purlins PURLIN REAR REAR FRAME PURLIN FRAME PURLIN CENTRE FRAME Fit the roof purlins between each frame as shown, so the top Secure each roof purlin with two tek screws through each... -
Page 21: Fit Sheeting
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H 2. Fit Strapping Check the diagonal roof measurements to ensure the frame is exactly square. Fit the strapping diagonally over the top of the frame, (refer to engineering plans), pulling and secure to each frame with wafer teks. - Page 22 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Corner Sheets The four corner sheets of the garage are to be folded as Fold ONE pan sections as shown shown below. below. See the following page to understand where the sheets are There are two of each sheet.
- Page 23 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Fit Wall Sheets Corner Sheets Secure the four corner sheets in place as shown. CRA-2 CLA-2 CLA-2 CRA-2 • Position each sheet flush with the top of the frame, with the bottom end overlapping the concrete slab by 30mm to form a weather tight seal.
-
Page 24: Assemble & Fit Barn Doors
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Roof Sheets Fitting Overlap last sheet by three pans 8 sheets per side. Turn pans up Length of hardwood with Roof sheets to 25mm deep saw cut, used with front and rear wall to bend pans of sheets. - Page 25 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Fit Gutter And Downpipe Join lengths of gutter to match the length of the garage by notching the rolled edge of one to allow the other to slide into it. Put silicone in the joint then use rivets to fasten the sections together.
- Page 26 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Fitting Trim / Flashing Ridge Capping 2x Ridge Capping (TR08) - 3030mm Long. Working from the garage towards the center, lay the ridge capping on the ridge of the roof sheets, overlapping sections to suit the length.
- Page 27 ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Barn Door Assembly Parts required per door: Accessories (Both doors) 4x C2177 80 x 40 Channel 2x Six hole door strap 3x K2142 80 x 40 Channel...
-
Page 28: Fit Gutters & Trim
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Barn Door Assembly (continued) 2) 2175 x 773 Sheets 2) 2175 x 695 Sheet Trimmed edge this end Secure ‘L’ Flashing Use rivets (FAST009) to fix the inside face of the L flashing to the framing. -
Page 29: Barn Door Installation
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Barn Door Installation View from inside looking out 'L' FLASHING Before hanging doors, fit one 'L' flashing to each door mullion and wall sheet with rivets to neatly trim these edges. Secure hinges to door mullions with screws as shown. -
Page 30: Engineering Drawings
ABSCO COMPACT GARAGE MODEL: CG56552N2 5.64m W x 5.49m D x 2.64m H Barn Door Installation (continued) Front View The top padbolt for the LH door should be placed along the top edge of the door so that when it is fully extended upwards the bolt does not hit on the rib of the gable sheeting above it. - Page 33 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
- Page 34 Lifetime Warranty Statement 1. DEFINITIONS 3. WARRANTY CLAIM PROCEDURE In this document, capitalised terms have the following meaning: 3.1. If, during the Lifetime Warranty Period, You believe the Product has a “ABSCO” means John Scholtes Investments (No. 1) Pty Ltd trading Defect, You must comply with the procedure set out in this clause 3.
- Page 35 4. WARRANTY LIMITATIONS / EXCLUSIONS 4.1. To the extent permitted by law, this warranty will not apply where: the Product has been installed or used for a purpose that is not an Authorised Purpose; the Product has not been installed, assembled, maintained and/or special, indirect or consequential loss or damage of any nature operated in complete compliance with ABSCO’s Product Guide;...
