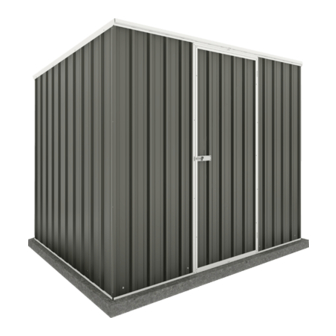

ABSCO SHEDS 23151RSK Manual

Reverse skillion shed
Hide thumbs

Advertisement

Quick Links

Download this manual
AU: 1800 029 701
NZ: 0800 466 444
For construction in non-cyclonic areas
Wind rating: N2 as per AS4055-2021.
If you require a higher wind rating please contact
us: admin@absco.com.au or 1800 029 701
NOTE: This shed can be upgraded to wind
rating: C1 as per AS4055-2021 with the additional
purchase of a Cyclone Kit.
DOWNLOAD
OUR APP FOR
ASSEMBLY
VIDEOS
Absco Industries
Assembly Instruction Manual
ABSCO REVERSE SKILLION SHED
MODEL: 23151RSK
2.26mW x 1.52mD x 1.80mH, 1.53mH
admin@absco.com.au
www.abscosheds.com.au

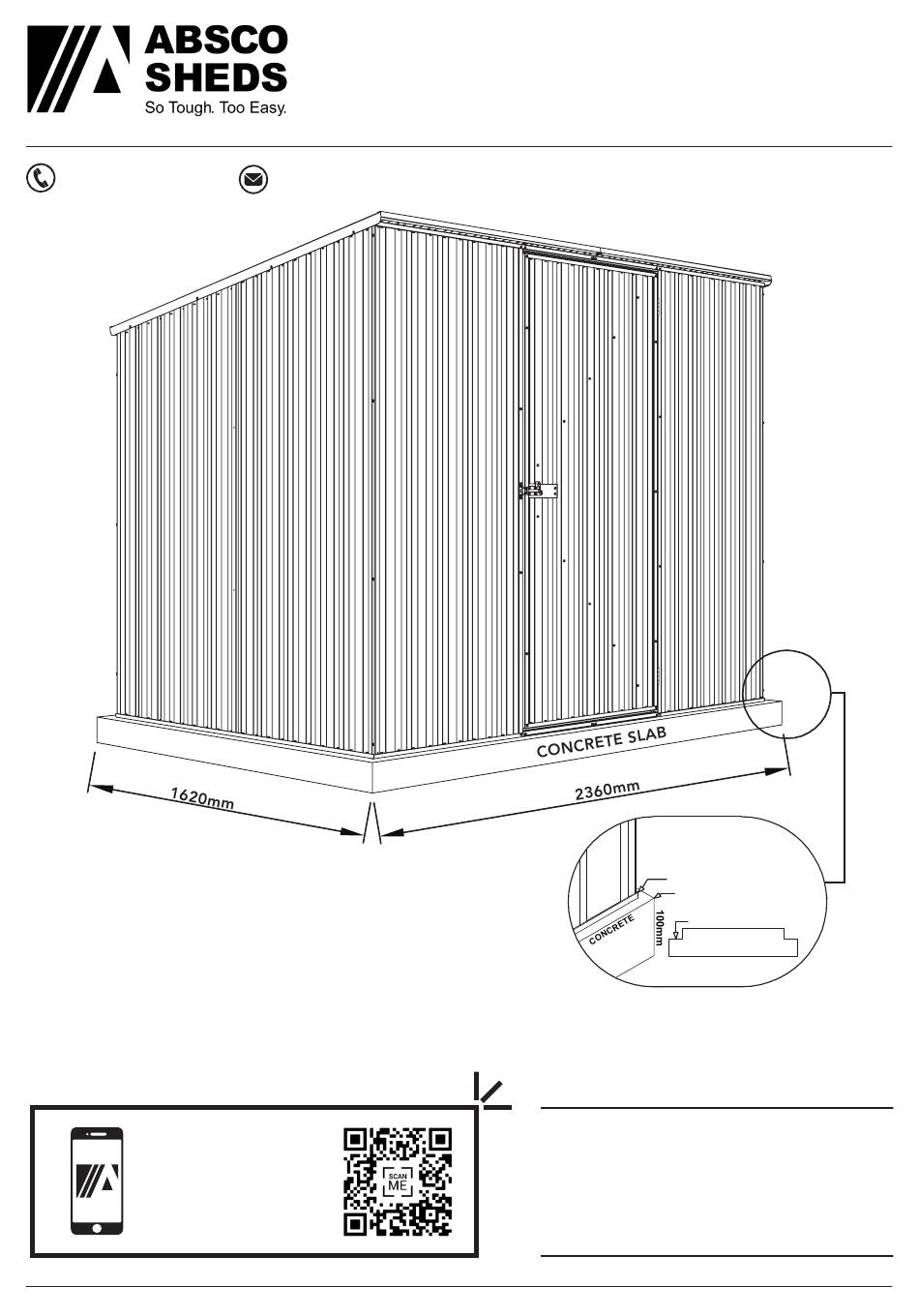

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
shed. For further assistance please visit our detailed
instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
Premier Shed Model: 23151GK
When laying concrete slab, ensure there
is a rebated edge 25mm deep around
the perimeter. This will help water egress
from the base of the shed.
PLEASE LEAVE A REVIEW
SHED MODEL: 23151GK
Tell us about your experience!
Visit www.abscosheds.com.au/review
Model: 23151RSK
24/10/2024
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
1.3
PAGE 01
1
