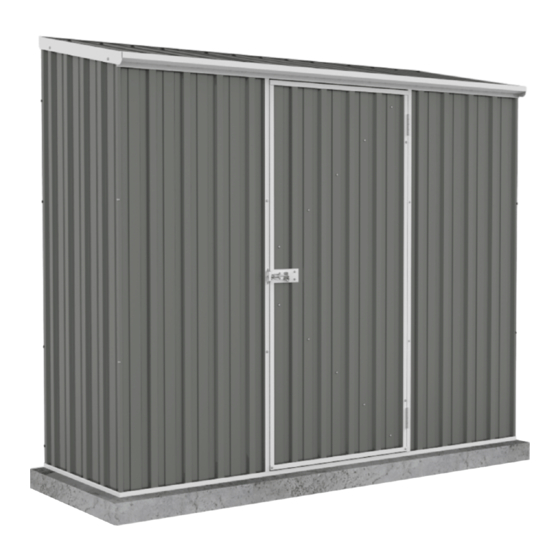

ABSCO SHEDS 23081SK Manual

Absco space saver shed 2.26mw x 0.78md x 1.80mh, 1.95mh
Hide thumbs Also See for 23081SK:

Advertisement

Quick Links

Download this manual
AU: 1800 029 70 1
NZ: 0800 466 444
When laying concrete slab, ensure there
is a rebated edge 25mm deep around the
perimeter. This will help water egress from
the base of the shed.
shed. For further assistance please visit our detailed
MANUFACTURED
IN AUSTRALIA
At ABSCO Industries we are always looking to be
number ONE, so please let us know what you think
SNAPTiTE
Assembly
ABSCO INDUSTRIES
Absco Industries
Assembly Instruction Manual
ABSCO SPACE SAVER SHED
MODEL: 23081SK
2.26mW x 0.78mD x 1.80mH, 1.95mH
admin@absco.com.au
www.abscosheds.com.au

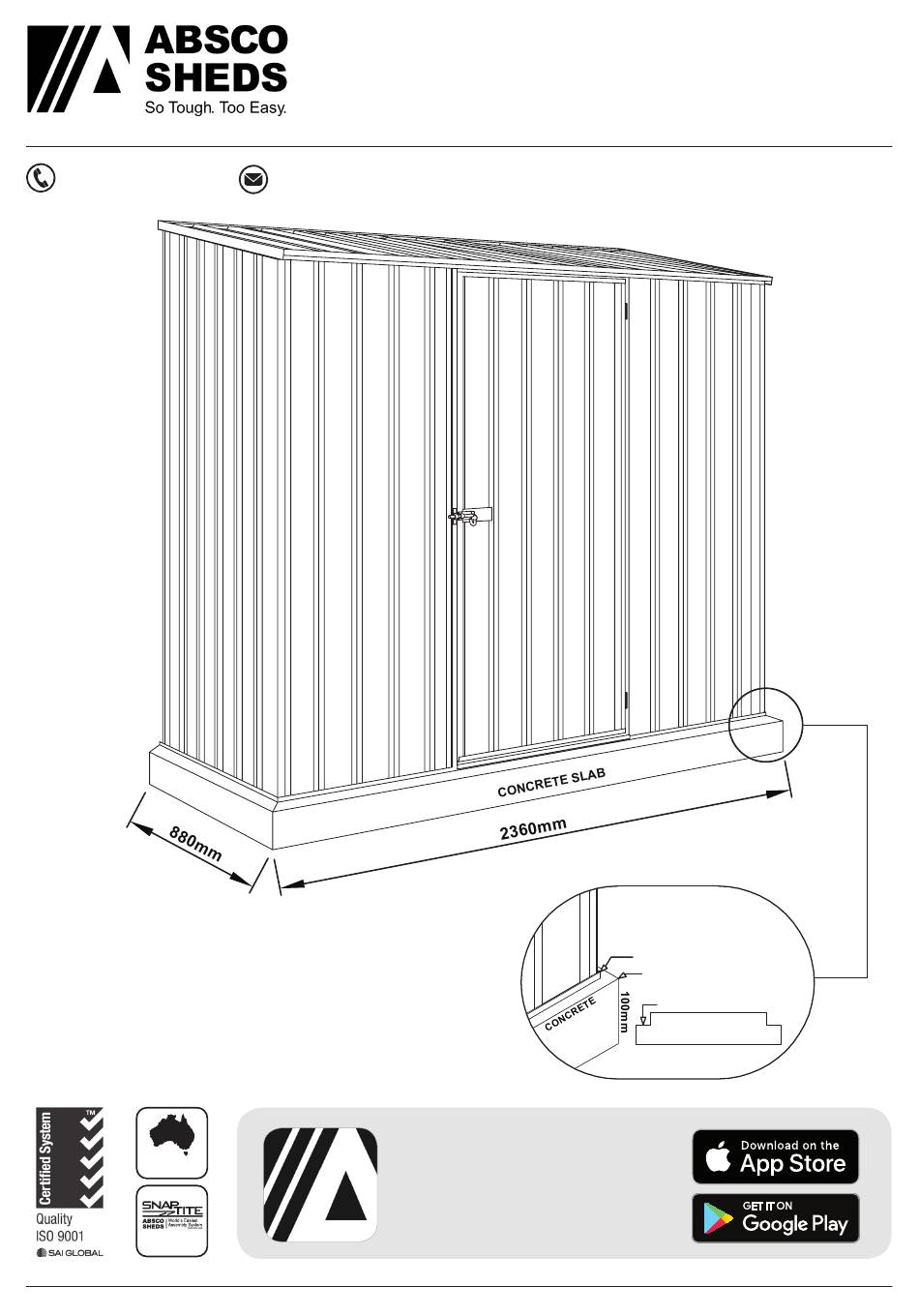

WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A
REBATED EDGE 25mm DEEP
AROUND THE PERIMETER
THIS WILL HELP WATER EGRESS
FROM THE BASE OF THE SHED
We thank you for choosing an Australian made
instructional video library at
Http://www.abscosheds.com.au/watch-videos
of our instructions. Feedback makes us better.
feedback@absco.com.au
ASSEMBLY INSTRUCTION MANUAL
Absco Industries
Premier Shed Model: 23151GK
Download the Absco
Sheds Assembly App
for instructional videos
SHED MODEL: 23151GK
Model: 23081SK
FRONT: 2.26m
SIDE:
1.52m
HEIGHT: 1.95m
BOTTOM CHANNEL
REBATED EDGE
75mm WIDE REBATE
CONCRETE SLAB
21-11-2017
11/11/19
1.1
PAGE 01
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the 23081SK and is the answer not in the manual?

Questions and answers

Related Manuals for ABSCO SHEDS 23081SK

Summary of Contents for ABSCO SHEDS 23081SK

  • Page 1 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH AU: 1800 029 70 1 admin@absco.com.au NZ: 0800 466 444 www.abscosheds.com.au Absco Industries Premier Shed Model: 23151GK FRONT: 2.26m SIDE: 1.52m HEIGHT: 1.95m WHEN LAYING YOUR CONCRETE SLAB, ENSURE THERE IS A...
  • Page 2 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH GENERAL INSTRUCTIONS • Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details. • Unpack the carton and carefully identify and check off all the parts against the parts described and illustrated on "COMPONENTS PACKING LIST"...
  • Page 3 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH COMPONENT PACKING LIST Check off all components. COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET CHANNEL 1915 X 773mm L = 773mm STEEL SHEET 1915 X 773mm...
  • Page 4 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH COMPONENT PACKING LIST Check off all components. COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION 54AL 54AR CHANNEL CHANNEL L = 1126.5mm L = 1126.5mm 54CL 54CR CHANNEL CHANNEL L = 1126.5mm...

  • Page 5: Side Panel Assembly

    ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH SIDE PANEL ASSEMBLY Check off all components. PART COMPONENT PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION LIP TRIM L= 865mm JAMB L= 1120mm CONTENTS OF FITTINGS PACKET DOOR ASSEMBLY...
  • Page 6 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH SNAPTiTE ASSEMBLY GUIDE The Snaptite Assembly System locks end channels to all roof and wall sheets without the need for tools and fasteners. To assemble each panel, the perimeter channels are secured to the top and bottom of each panel.
  • Page 7 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH Guide on Joining Spliced Channels The text marked on all parts must be shown on the same side as each other JOIN>> JOIN>> <<JOIN JOIN>> Step 1. Step 2.
  • Page 8 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH SIDE PANEL ASSEMBLY Check off all components. Note: Join together 12x Channel sections using 6x channel joiners (CSJ) NOTE: SOME CHANNELS HAVE 2 x 81C HOLES IN THEM - YOU WILL NEED...
  • Page 9 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH ROOF COMPONENT OVERVIEW Absco Industries Assembly Instruction Manual Model: 23081SK 11/11/19...
  • Page 10 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH WALL COMPONENT OVERVIEW Absco Industries Assembly Instruction Manual Model: 23081SK 11/11/19...

  • Page 11: Rear Panel Assembly

    ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH REAR PANEL ASSEMBLY 1x required Absco Industries Assembly Instruction Manual Model: 23081SK 11/11/19...
  • Page 12 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH SIDE PANEL ASSEMBLY 2x required. Absco Industries Assembly Instruction Manual Model: 23081SK 11/11/19...
  • Page 13 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH ROOF PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 23081SK 11/11/19...

  • Page 14: Front Panel Assembly

    ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH FRONT PANEL ASSEMBLY Absco Industries Assembly Instruction Manual Model: 23081SK 11/11/19...
  • Page 15 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH DOOR PANEL ASSEMBLY SINGLE DOOR Vertical door channels are installed in the opposite orientation compared to the horizontal door channels. Long Short fl ange fl ange of of channel...
  • Page 16 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH DOOR PANEL ASSEMBLY (continued) NOTE: NUTS AND BOLTS (SUPPLIED) MAY BE USED INSTEAD OF POP RIVETS (SUPPLIED) BY SIMPLY ENLARGING THE HINGE HOLE SETS IN THE JAMB USING A 4MM DRILL BIT NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment.
  • Page 17 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH PANEL CONSTRUCTION NOTE: Take care to ensure that all wall panels are not upside down. The top channels of each panel are pre-punched for attaching roof sheeting. The base channels are not pre-punched.
  • Page 18 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH FINAL CONSTRUCTION ANCHORING OF SHED Location of 8 concrete anchors Bolt and Nut* M10 4.6/S Wall Sheet Steel Angle* 35 x 35 x 3 Each anchor consists of one nut, bolt, M10 dynabolt and steel angle.
  • Page 19 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH Absco Skillion Roof Shed Notes General • 1.G This instruction manual shall be read in conjunction with other consultants drawings, specifi cations and written instructions provided by Absco and/or their representatives.
  • Page 20 ABSCO SPACE SAVER SHED MODEL: 23081SK 2.26mW x 0.78mD x 1.80mH, 1.95mH Absco Skillion Roof Shed Notes Steelwork • 1.S All structural steelwork shall have a corrosion protection system applied consistent with AS/NZS 2312- 2002. • 2.S All structural steelwork detailed within this installation manual shall be minimum Grade 550 for roll formed sections (including roof and wall sheeting) and Grade 250 for angle sections.
  • Page 21 Absco Sheds Storage Guidelines • Absco Sheds are designed to be weatherproof for normal weather conditions. In the event of extreme weather conditions such as heavy rain, combined with high wind gusts, the ridge capping, sheeting joins, screw fi xings etc., may exhibit minor deformations which may allow some water entry. These areas should be checked regularly to ensure that maximum strength and protection is maintained.
  • Page 22 2.26mW x 0.78mD x 1.80mH, 1.95mH Australia Product Warranty Against Defects • Absco Sheds, including garden sheds, garden beds, aviaries, storage units, garages, awnings and carports are made using high quality Australian made steel. • We are pleased to advise we warrant that the steel coating will not rust, crack, fl ake peel or blister for 20 years from date of purchase, when installed within Australia.
