FRONT BASE
LENGTH: 3.0m
SIDE BASE
LENGTH: 0.78m
FRONT WALL
HEIGHT: 1.8m
REAR WALL
HEIGHT: 1.95m
We thank you for choosing an Australian Made Shed. For further assistance please
visit our detailed instructional video library at
Http://www.abscosheds.com.au/watch-videos
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES

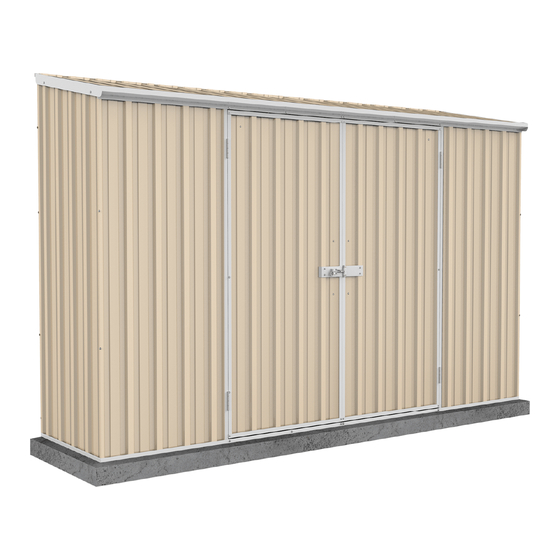

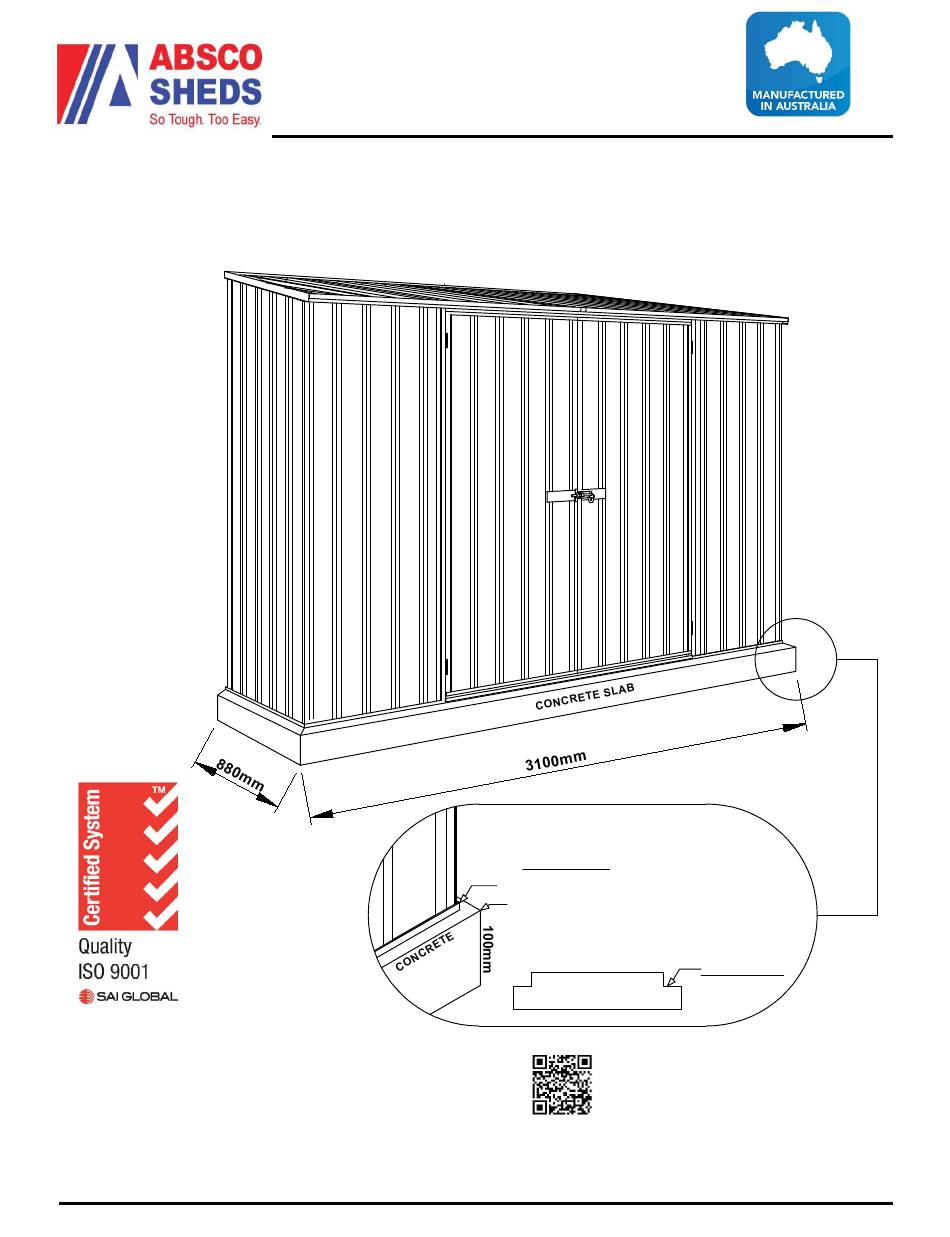

Absco ECO Garden Shed
Assembly Instructions
Model: J30082SECO
ASSEMBLY INSTRUCTION - MODEL: J30082SECO 30/07/14
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 25mm DEEP AROUND THE PERIMETER
CHANNEL
THIS WILL HELP
REBATED EDGE
WATER EGRESS FROM
THE BASE OF THE SHED
CONCRETE SLAB
75mm WIDE
REBATE
PAGE 1
