We thank you for choosing an Australian Made Shed. For further assistance please
visit our detailed instructional video library at
At ABSCO Industries we are always looking to be number ONE, so please let us
know what you think of our instructions. Feedback makes us better.
feedback@absco.com.au
ABSCO INDUSTRIES
ABSCO INDUSTRIES

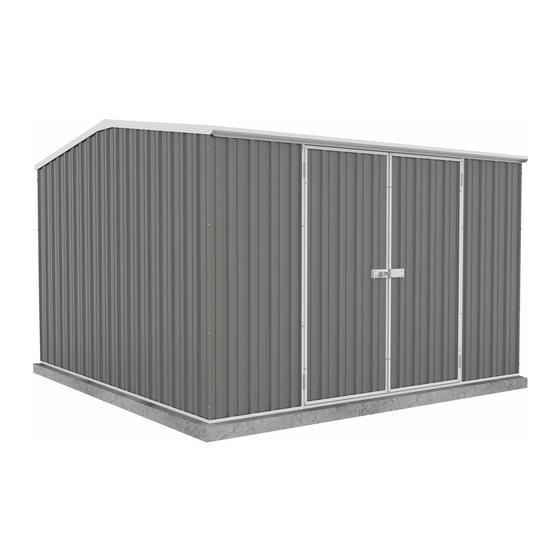

Absco Premier Garden Shed
ABSCO PREMIER SHED

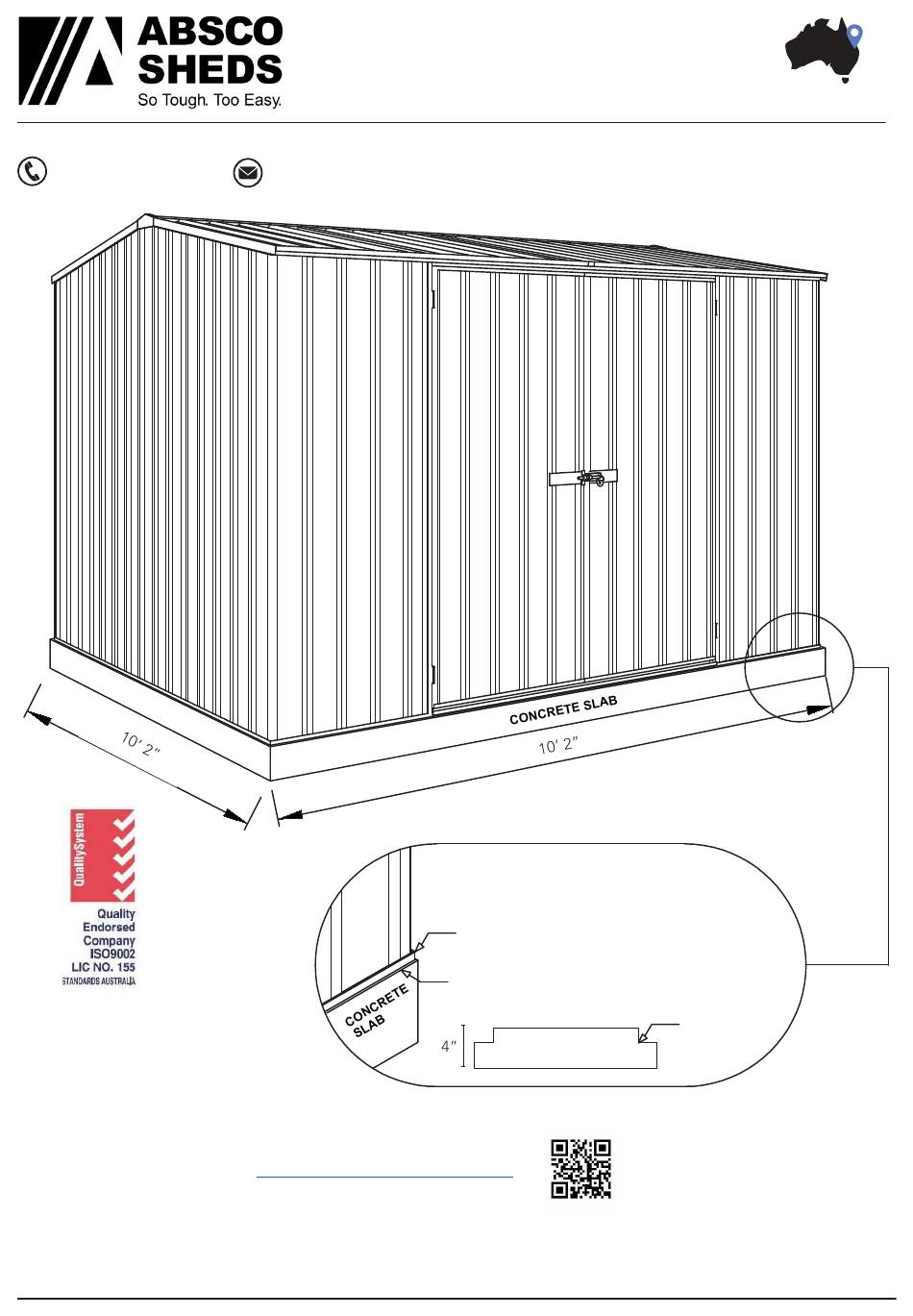

Assembly Instructions
MODEL: 30302GK-PTX
Model: J30302G
10' W x 10' D x 7' H
admin@absco.com.au
www.abscosheds.com.au
www.abscosheds.com.au/USA
ASSEMBLY INSTRUCTION - MODEL: 30302GK-PTX
ASSEMBLY INSTRUCTION - MODEL: J30302G 26/02/14
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 1" DEEP AROUND THE PERIMETER
CHANNEL
THIS WILL HELP
WATER EGRESS FROM
REBATED EDGE
THE BASE OF THE SHED
CONCRETE SLAB
Australian Made
FRONT: 9' 10 7⁄64"
SIDE: 9' 10 7⁄64"
HEIGHT: 6' 10 43⁄64"
3" WIDE
REBATE
23/09/19
PAGE
1
PAGE 1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ABSCO PREMIER SHED and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for ABSCO SHEDS ABSCO PREMIER SHED

Summary of Contents for ABSCO SHEDS ABSCO PREMIER SHED

  • Page 1 Absco Premier Garden Shed ABSCO PREMIER SHED Assembly Instructions MODEL: 30302GK-PTX Model: J30302G 10’ W x 10’ D x 7’ H Australian Made FRONT: 9' 10 7⁄64" AU: 1800 029 701 admin@absco.com.au +1 (866) 788 3046 N Z: 0800 466 444 www.abscosheds.com.au...

  • Page 2: General Instructions

    ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 10’ D x 7’ H Australian Made GENERAL INSTRUCTIONS Before commencing any assembly, read through these instructions in detail to gain a thorough understanding of assembly methods and associated details.
  • Page 3 ABSCO PREMIER SHED MODEL: 30302GK-PTX 10’ W x 10’ D x 7’ H Australian Made COMPONENTS PACKING LIST - CHECK OFF ALL COMPONENTS COMPONENT PART PART COMPONENT CHECK CHECK DESCRIPTION DESCRIPTION STEEL SHEET Part No. Here 5' 10 9⁄32" Long 2' 6 7⁄16"...
  • Page 4 ABSCO PREMIER SHED MODEL: 30302GK-PTX 10’ W x 10’ D x 7’ H Australian Made COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION CHANNEL CHANNEL L = 14' 11 49⁄64" L = 2' 6 7⁄16"...
  • Page 5 ABSCO PREMIER SHED MODEL: 30302GK-PTX 10’ W x 10’ D x 7’ H Australian Made COMPONENTS PACKING LIST - (CONT.) CHECK OFF ALL COMPONENTS COMPONENT PART COMPONENT PART CHECK CHECK DESCRIPTION DESCRIPTION ZARSP CHANNEL JOINER RIDGE BEAM JOINER L= 7 7/8"...
  • Page 6 ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 10’ D x 7’ H Australian Made INSTRUCTIONS FOR JOINING SPLICED CHANNELS NOTE: THE TEXT MARKED ON ALL PARTS MUST BE SHOWN ON THE SAME SIDE AS EACH OTHER.
  • Page 7 ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed - Model: J30302G 10’ W x 10’ D x 7’ H Australian Made STEP 1. PRE-ASSEMBLY OF SPLICED CHANNELS NOTE: JOIN TOGETHER 20 X CHANNEL SECTIONS USING 10 X CHANNEL JOINERS (PART CSJ)
  • Page 8 ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed - Model: J30302G 10’ W x 10’ D x 7’ H Australian Made STEP 2. PRE-ASSEMBLY OF SPLICED RIDGE BEAM QTY. = 1 TEK SCREW DRIVER BIT QTY. = 8 SELF DRILLING TEK SCREW RIDGE BEAM 4' 11 7⁄8"...
  • Page 9 ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 10’ D x 7’ H Australian Made INSTRUCTIONS FOR JOINING SPLICED RIDGE BEAM STAGE 1: PUSH RIDGE BEAMS TOGETHER, MAKE SURE THERE IS A 2" OVERLAP...
  • Page 10 ABSCO PREMIER SHED MODEL: 30302GK-PTX 10’ W x 10’ D x 7’ H Australian Made ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30302GK-PTX 23/09/19 PAGE...
  • Page 11 ABSCO PREMIER SHED MODEL: 30302GK-PTX 10’ W x 10’ D x 7’ H Australian Made ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: 30302GK-PTX 23/09/19 PAGE...
  • Page 12 ABSCO PREMIER SHED Premier Garden Shed MODEL: 30302GK-PTX INSTRUCTIONS AND VIDEOS Model: 30152GK 10’ W x 10’ D x 7’ H Australian Made ABSCO ASSEMBLY INTRODUCTION The snaptite assembly system locks most perimeter channels to all roof and wall sheets without the need for tools and fasteners.

  • Page 13: Door Panel Assembly

    ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 10’ D x 7’ H Australian Made DOOR PANEL ASSEMBLY ATTACH 58C CHANNELS AS DESCRIBED ON PAGE 12 ATTACH 89C WITH COLORED SIDE FACING OUT. ATTACH 58A AND 58B TO SHEET B SO THAT THE 25/32"...

  • Page 14: Rear Panel Assembly

    ABSCO PREMIER SHED Premier Garden Shed - MODEL: 30302GK-PTX Model: J30302G 10’ W x 10’ D x 7’ H Australian Made REAR PANEL ASSEMBLY LAY SHEETS OUT AS SHOWN INSTALL PEAK BRACE WITH OVERHANG FITTING INSIDE SHED SIDE PANEL ASSEMBLY...
  • Page 15 ABSCO PREMIER SHED Premier Garden Shed - MODEL: 30302GK-PTX Model: J30302G 10’ W x 10’ D x 7’ H Australian Made ROOF PANEL ASSEMBLY (2 Required) LAY SHEETS OUT AS SHOWN 2 x PRE-PUNCHED HOLES TO THIS END OF EACH SHEET WITH PART NO.

  • Page 16: Front Panel Assembly

    ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed - Model: J30232G 10’ W x 10’ D x 7’ H Australian Made FRONT PANEL ASSEMBLY LAY SHEETS OUT AS SHOWN NOTCH ON JAMB 90A FITS OVER JAMB 89A AND 89B AND NOTCH ON 89B AND 89A FITS OVER 55A...
  • Page 17 ABSCO PREMIER SHED MODEL: 30302GK-PTX Premier Garden Shed INSTRUCTIONS 10’ W x 10’ D x 7’ H AND VIDEOS Australian Made Model: 30152GK DOOR PANEL ASSEMBLY NOTE: Nuts and bolts (supplied) may be used instead of pop rivets (supplied) by simply enlarging the hinge hole sets in the jamb using a 5/32"...
  • Page 18 ABSCO PREMIER SHED Premier Garden Shed - MODEL: 30302GK-PTX Model: J30302G 10’ W x 10’ D x 7’ H Australian Made PANEL CONSTRUCTION NOTE: Take care to ensure that both front and rear wall panels are not positioned upside down. The top channel of each...
  • Page 19 ABSCO PREMIER SHED Premier Garden Shed - MODEL: 30302GK-PTX Model: J30302G 10’ W x 10’ D x 7’ H Australian Made INSIDE VIEW OF FIXING ROOF CONSTRUCTION SECURE PEAK MOVE THE OTHER ROOF PANEL INTO BRACE TO RIDGE SLIDE THE ROOF PANEL INTO...
  • Page 20 ABSCO PREMIER SHED Premier Garden Shed - MODEL: 30302GK-PTX Model: J30302G 10’ W x 10’ D x 7’ H Australian Made FINAL CONSTRUCTION BEND THE TOP AND BOTTOM FLANGES AS SHOWN, THEN HOOK THE BOTTOM FLANGES UNDER THE TOP CHANNEL AND...

  • Page 21: Against Defects

    THE CUSTOMER SERVICE MANAGER, ABSCO SHEDS, PO BOX 119 ACACIA RIDGE QLD AUSTRALIA 4110 PHONE: +61 1800 029701 EMAIL: warranty@absco.com.au...
