INSTRUCTIONAL
VIDEOS
We thank you for choosing an Australian made shed. For further assistance please visit our detailed
instructional video library at www.abscosheds.com.au/USA or contact Customer Support: 800-305-4436.
At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our
instructions. Feedback makes us better. feedback@absco.com.au
ABSCO INDUSTRIES

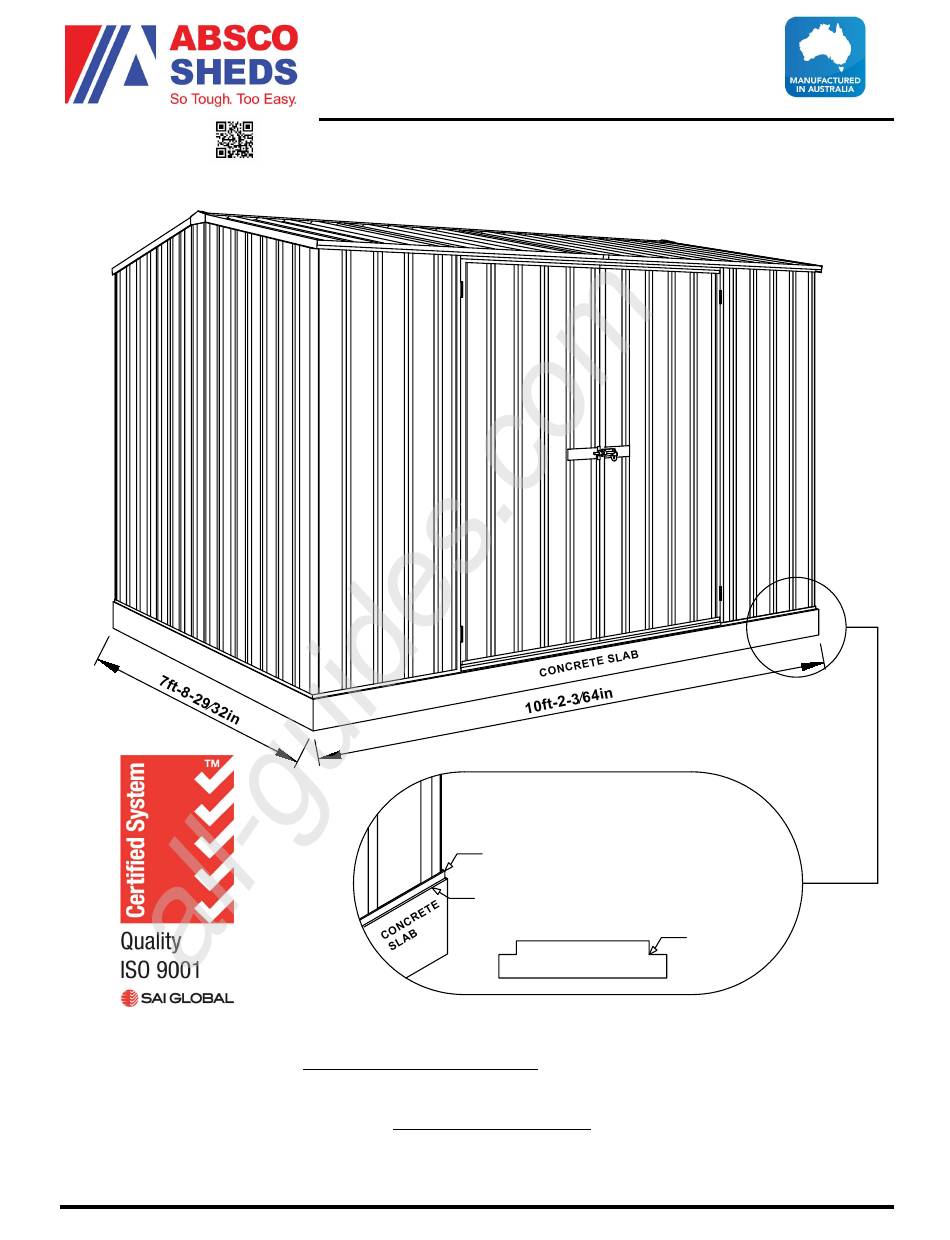

ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14

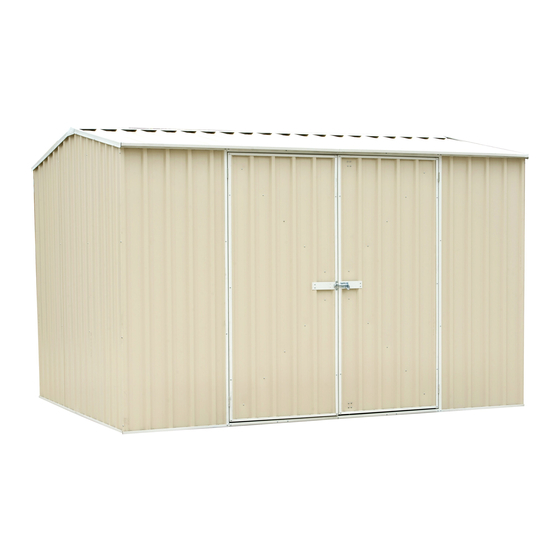

Premier Garden Shed
All manuals and user guides at all-guides.com
Assembly Instructions
Model: J30232G
WHEN LAYING YOUR CONCRETE
SLAB, ENSURE THERE IS A REBATED
EDGE 1in DEEP AROUND THE PERIMETER
CHANNEL
REBATED EDGE
FRONT BASE LENGTH: 9ft-10-7⁄64in
SIDE BASE LENGTH:
HEIGHT: 6ft-10-43⁄64in
THIS WILL HELP
WATER EGRESS FROM
THE BASE OF THE SHED
CONCRETE SLAB
CUSTOMER SUPPORT - 800-305-4436
7ft-4-31⁄32in
3in WIDE
REBATE
PAGE 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for ABSCO SHEDS J30232G
Summary of Contents for ABSCO SHEDS J30232G
- Page 1 At ABSCO Industries we are always looking to be number ONE, so please let us know what you think of our instructions. Feedback makes us better. feedback@absco.com.au ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 1...
- Page 2 Do not erect your shed in windy conditions, ensure that the shed is securely anchored to a solid foundation immediately after construction is completed. · It is highly recommended to erect the shed with two or more people. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 2...
- Page 3 STEEL SHEET PLASTIC SCREW CAPS ALL SHEETS HAVE PART NO.S LOCATED ON Part No. Here LOWER RIGHT OR UPPER LEFT CORNER OF COLORED SIDE AS SHOWN ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 3...
- Page 4 55BL 55BR CHANNEL CHANNEL 81BL 81BR CHANNEL CHANNEL 81AL 81AR CHANNEL CHANNEL 81CL 81CR CHANNEL CHANNEL 60AL 60AR CHANNEL CHANNEL RIDGE RIDGE 97AL 97AR BEAM BEAM ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 4...
-
Page 5: Component Description
DOOR SHEET 8/32in CSK SCREW & PHILLIPS HEAD NUT SECURE HINGES DRIVER BIT TO DOOR No.30 & 11/64in DRILL BIT HEX TEK SCREW DRIVER BIT CAP GABLE ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 5... - Page 6 CSJ joined channels. (on an angle). Push the CSJ into the channel until you here a 'click'. CHANNEL HIGH-SIDE 25/32in 19/32in LOW-SIDE CHANNEL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 6...
- Page 7 2 x 81C 1 X 55CR 1 X 55CL 1 X 55BR 1 X 55BL 1 X 81BR 1 X 81BL 2 X 81CR 2 X 81CL ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 7...
- Page 8 MAKE SURE JOINER HAS 8-55/64in IN EACH RIDGE CAP. PLACE TEK SCREWS IN 2in INCREMENTS FROM SAID END. REPEAT THIS PROCESS FOR THE OPPOSING HALF OF RIDGE BEAM 2" ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 8...
- Page 9 SELF DRILLING TEK SCREW QTY. = 2 PARTS 97AL & 97AR QTY. = 1 ZARSP THE TOP SECTIONS OF CAPPING WILL OVERLAP EACH OTHER AT THE JOIN BY 2in. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 9...
- Page 10 All manuals and user guides at all-guides.com...
- Page 11 All manuals and user guides at all-guides.com...
- Page 12 Once constructed place shed screw caps over fasteners Do not join components together at this location yet, as the screw may obstruct further assembly of other components ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 12...
-
Page 13: Rear Panel Assembly
INSTALL PEAK BRACE WITH OVERHANG FITTING INSIDE SHED 2. SIDE PANEL ASSEMBLY (2 Required) LAY SHEETS OUT AS SHOWN ATTACH 81C, 83L AND 83R CHANNEL AS SHOWN ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 13... - Page 14 LAY SHEETS OUT AS SHOWN HOLES TO THIS END OF EACH SHEET WITH PART NO. 81A FITTED ATTACH LIPS 86A AS SHOWN. LIPS SHOULD OVERLAP ROOF CHANNEL 81A AND 60A. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 14...
-
Page 15: Door Panel Assembly
THE 25/32in SIDE OF THE CHANNELS ARE ON THE OUTSIDE OF SHEET B 25/32in FLANGE 19/32in FLANGE ENSURE CHANNEL 58C OUTER FLANGE SITS OVER UPRIGHT CHANNEL FLANGE FOUR HOLE SET FOR PADBOLT CONNECTION ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 15... -
Page 16: Front Panel Assembly
UNTIL CHANNELS 55A AND 55C ARE INSTALLED NOTCH ON JAMB 89A AND 89B FITS OVER CHANNEL 55C AND CHANNEL 79A INSERTS INTO 55C WITH SHORTEST SIDE FACING OUT. ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 16... - Page 17 NOTE: The two holes required to connect the padbolt hasp for each door have not been pre-punched, to allow for proper alignment. position each hasp centrally over the padbolt shaft, and drill holes with No. 30 drill and secure with screws ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 17...
- Page 18 ON INSIDE OF DOOR Side wall panel channels fit into the notched front and rear Channel type 60a this end wall panel channels Channel type 81a this end ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 18...
- Page 19 ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 19...
- Page 20 - EACH ANCHOR CONSISTS OF ONE NUT, BOLT, DYNABOLT AND STEEL ANGLE STEEL ANGLE - DRILL A 25/64in HOLE INTO THE WALL SHEET SLAB - DRILL A 25/64in HOLE INTO THE CONCRETE DYNABOLT ABSCO INDUSTRIES ASSEMBLY INSTRUCTION - MODEL: J30232G 14/08/14 CUSTOMER SUPPORT - 800-305-4436 PAGE 20...
