- Page 1 P718O 18.5” FHD TFT Railway Monitor User’s Manual...
-
Page 2: Disclaimers
Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd. -
Page 3: Safety Precautions
Most electronic components are sensitive to static electrical charge. Disconnect the power cords from the P718O Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the P718O Series is properly grounded. -
Page 4: Table Of Contents
Table of Contents Disclaimers ...................... i Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Features ....................2 Specifications ..................2 Dimensions and Outlines ..............3 I/O Outlets .................... 8 Packing List ..................9 Chapter 2 System Setup ........ -
Page 5: Chapter 1 Introduction

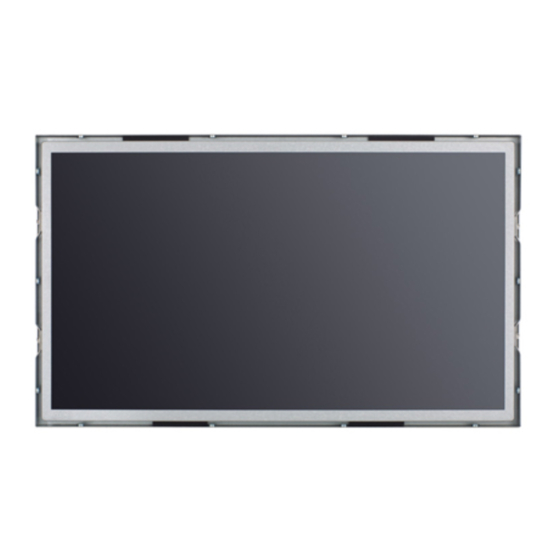

Package List General Description The P718O is an industrial and rail grade 18.5” LCD monitor with slim, lightweight, and reliable design to replace traditional bulky CRT in the transportation market. Its unique and flat design fit for panel mounting and VESA mounting. The display interface offers DVI-D, HDMI and VGA for different image input sources from computer or multimedia system. -
Page 6: Features
P718O User’s Manual Features ⚫ High contrast 18.5” FHD TFT LCD display supports resolution up to 1920x1080 ⚫ High brightness and ultra-wide viewing angle. ⚫ VESA standard power management conformity ⚫ Advanced OSD control for picture quality adjustment ⚫ Remote OSD function control and management (refer to Appendix C) Specifications ⚫... -
Page 7: Dimensions And Outlines
P718O User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of P718O TOP Side Bottom Side Introduction... - Page 8 P718O User’s Manual The following diagram shows the VESA mounting and cut-out dimension of P718O Introduction...
- Page 9 P718O User’s Manual VESA Mount only (default) Introduction...
- Page 10 P718O User’s Manual With Junction Box (option) Introduction...
- Page 11 P718O User’s Manual With Wall Mount (option) Introduction...
-
Page 12: I/O Outlets
P718O User’s Manual I/O Outlets The following pictures show the I/O outlets on the P718O. Function Function M12 A-coded Male 5 pin DC power input Menu (Enter function) Remote control SEL- VGA- SEL+ HDMI Power LED DVI-D Power Switch Exit... -
Page 13: Packing List
When you receive the P718O, the bundled package should contain the following items: ⚫ P718O unit x 1 ⚫ HDMI bracket x1 ⚫ Cable tie x1 ⚫ Screw M3*5L x1 If you cannot find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction... - Page 14 P718O User’s Manual This page is intentionally left blank. Introduction...
-
Page 15: Chapter 2 System Setup
P718O User’s Manual Chapter 2 System Setup This chapter details the system parts and components with figures. Sections include: ⚫ System Configuration ⚫ Panel Mounting ⚫ VESA Mounting ⚫ I/O Pin Assignment ◼ M12 A-coded Male 5 pin DC power input ◼... -
Page 16: System Configuration
P718O User’s Manual System Configuration The figure shows the OSD on the side of the monitor. OSD Key Function 1. Exit When the menu is displayed on the screen, short press to exit When the menu is not displayed on the screen, press for Auto Adjust (VGA only) 2. -
Page 17: Vesa Mounting
P718O User’s Manual VESA Mounting The P718O is VESA compliant. Tighten the four screws firmly to fix the kit on the back chassis. System Setup... -
Page 18: Wall Mounting
P718O User’s Manual 2.3 Wall Mounting (Option) The P718O supports Wall Mounting. To mount the P718O, the standard holes are on the front side of the P718O. System Setup... -
Page 19: I/O Pin Assignment
P718O User’s Manual I/O Pin Assignment The P718O supports M12 A-coded Male 5 pin DC power input connector, remote control, VGA, HDMI, DVI-D. The diagrams below show the detailed pin assignment. 2.4.1 DC power connector M12 A-coded Male 5 pin power input：24~110Vdc... -
Page 20: Hdmi Bracket Installation
P718O User’s Manual HDMI bracket installation Step 1 Align the hole on the bracket with the hole on the chassis, insert the M3 screw and fasten the screw tightly to the bracket, as the pictures shown below. Step 2 Connect the HDMI cable to the port, insert the cable tie through the loop of the cable fixing plate to bind the HDMI connector with the bracket, as the picture shown below. -
Page 21: Remote Control Cable
P718O User’s Manual Remote control cable Can be available for self-made by referring to the following correspondence: Wiring Table Connector Type DB9-male DB9-female System P718O PC-Remote 3 (Remote RXD) N.C. N.C. N.C. 5 (Ground) N.C. N.C. 2 (Remote TXD) N.C. - Page 22 P718O User’s Manual This page is intentionally left blank. System Setup...
-
Page 23: Appendix A Supported Input Timing Modes
P718O User’s Manual Appendix A Supported Input Timing Modes HDMI DVI-D Resolution Refresh Resolution Refresh Resolution Refresh rate rate rate 640 x 480 60 Hz 640 x 480 60 Hz 640 x 480 60 Hz 640 x 480 72 Hz... - Page 24 P718O User’s Manual This page is intentionally left blank. Supported Input Timing Modes...
-
Page 25: Appendix Bosd Operation
P718O User’s Manual Appendix B OSD Operation Function Description of OSD Menu ※The layout and format of OSD are constructed as below: Level 0 Level 1 Level 2 Value Brightness Picture 0-100 Contrast 0-100 Sharpness Auto Adjust Display H Position... - Page 26 P718O User’s Manual Position Language English English (default) Spanish France German Italy Portugal Russia Chinese Transparency 0-255 OSD Rotate 0°/90°/180°/270° 0° (default) Power On On/Off/User On (default) Status Information Input Source Resolution Timing Clock FW Version OSD Operation...
- Page 27 P718O User’s Manual This page is intentionally left blank. OSD Operation...
-
Page 28: Appendix C Remote Control Utility
P718O User’s Manual Appendix C Remote Control Utility File: ADS_Client.exe: main application ADS_RS-232_x32.dll / ADS_RS-232_x64.dll: library for application reference, have to copy to System Disk(C:):\Windows\System32 or with ADS_Client.exe ◼ ◼ The remote-control utility is for adjusting the system setting remote control port. - Page 29 P718O User’s Manual ⚫ Functions and UI on application ◼ When you start the system, it will auto scan all the serial port to find out correct port you connect to. ◼ Control Items Brightness ⚫ Control: scroll bar ⚫...
- Page 30 P718O User’s Manual Color Temp.: ⚫ Control: drop-down list ⚫ Range: 6500, 7500 and 9300 Remark: if the getting or setting fails, it will show “Color Temp. - Failed” ⚫ Power: ⚫ Control: button ⚫ Way: set only, ON and OFF Remark: if the setting fails, it will show “Power - Failed”...
- Page 31 P718O User’s Manual Rescanning all Status ⚫ Control: button ⚫ Remark: getting all status Input Source ⚫ Control: Text box ⚫ Remark: showing which one is input source (DVI/VGA/HDMI) AD Board Management System...
- Page 32 P718O User’s Manual This page is intentionally left blank. AD Board Management System...
