P6151

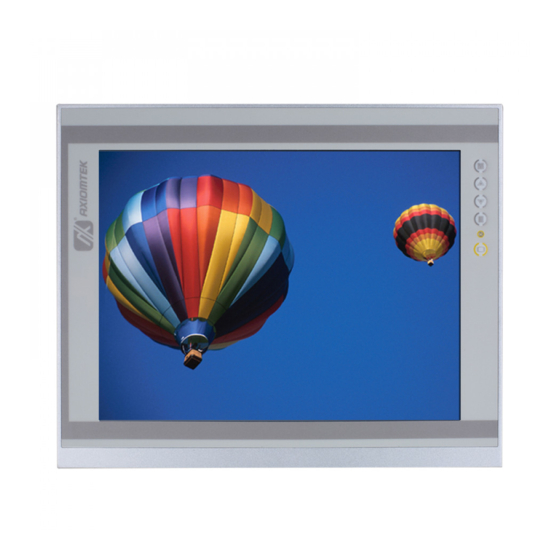

15" XGA TFT Monitor
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6151 and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK P6151

Summary of Contents for AXIOMTEK P6151

  • Page 1 P6151 15” XGA TFT Monitor User’s Manual...

  • Page 2: Disclaimers

    Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Most electronic components are sensitive to static electrical charge. Disconnect the power cords from the P6151 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the P6151 Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Features ....................2 Specifications ..................2 Dimensions and Outlines ..............3 I/O Outlets .................... 4 Packing List ..................5 Chapter 2 System Setup ..........

  • Page 5: Chapter 1 Introduction

    Package List General Description The P6151, an industrial 15 inches view area LCD Monitor comes with slim, light and reliable features to replace traditional bulky CRT for Industrial application. Its unique flat design is fit for panel mounting, VESA mounting, Wall mounting and Rack mounting. The display interface offers DVI-D, HDMI and VGA for different input source from PC system or multimedia system that let you upgrade the display don’t change anything from your system.

  • Page 6: Features

    P6151 User’s Manual Features  High contrast color 15” XGA TFT LCD display support resolution up to 1024x768  Flat design with NEMA4/IP65-compliant  Suits with resistive touch or glass  High Brightness and Ultra-wide viewing angle with anti-glare features.

  • Page 7: Dimensions And Outlines

    P6151 User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of P6151 P6151P: P6151O: Introduction...

  • Page 8: I/O Outlets

    P6151 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the P6151. Function Function Screw type or Menu (Enter function) Phoenix type power input SEL+ DisplayPort SEL- HDMI Exit/Auto Adjust DVI-D Power LED RS-232 or USB for Touch...

  • Page 9: Packing List

    USB cable or RS-232 cable x1 (for resisitve touch version only )  Adaptor x1 (for AC version only)  Panel mount kit x 10 If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...
  • Page 10 P6151 User’s Manual This page is intentionally left blank. Introduction...

  • Page 11: Chapter 2 System Setup

     VESA Mounting  Rack Mounting System Configuration The figure below shows the side views of P6151 series. Menu: Press this button to turn on/off the OSD (On Screen Display) main menu. Press this button to activate selected items. SEL+: To scroll up the menu.

  • Page 12: Panel Mounting

    The P6151 is designed for panel mount application. To mount the P6151, the standard set of mounting kit (included in the system packaging) is needed. ▲P6151 Panel Mount kits Wall Mounting The P6151 provides VESA mount and wall mount. Screw four screws to fix the kit in the back chassis. System Setup...

  • Page 13: Vesa Mounting

    P6151 User’s Manual VESA Mounting The P6151 provides VESA mount at the back of system. Screw four screws to fix the kit in the back chassis. 100mm 100mm System Setup...

  • Page 14: Rack Mounting

    P6151 User’s Manual Rack Mounting The P6151 provides rack mount at the back of system. Screw eight screws to fix the kit in the back chassis. System Setup...

  • Page 15: Appendix A Supported Input Timing Modes

    P6151 User’s Manual Appendix A Supported Input Timing Modes Supported Input Timing Modes Horizontal Timing Vertical Timing Pixel SPEC Freq. Freq. Total Active Freq. Total Active Sync Sync MODE Polar Pixel Pixel Polar Line Line 640×350 24.144 31.430 70.000 @70Hz VESA 640×480...
  • Page 16 P6151 User’s Manual Horizontal Timing Vertical Timing Pixel SPEC Freq. Freq. Total Active Freq. Total Active Sync Sync MODE Polar Polar Pixel Pixel Line Line 1024×768 65.000 48.363 1344 1024 60.005 @60Hz VESA 1024×768 64.000 48.780 1312 1024 60.001 @60Hz VESA 1024×768...

  • Page 17: Appendix Bosd Operation

    P6151 User’s Manual Appendix B OSD Operation Function Description of OSD Menu ※The layout and format of OSD depends on customer’s request. OSD MENU Description Luminance：  Brightness  Contrast  Sharpness Luminance Picture  Phase  Clock  H position ...
