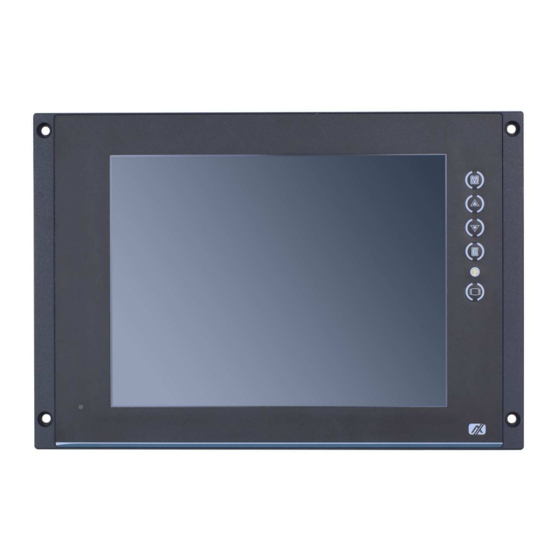

- Page 1 P6105 10.4” XGA TFT Railway Monitor User’s Manual...
-
Page 2: Disclaimers
Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd. -
Page 3: Safety Precautions
Most electronic components are sensitive to static electrical charge. Disconnect the power cords from the P6105 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the P6105 Series is properly grounded. -
Page 4: Table Of Contents
Table of Contents Disclaimers ...................... i Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Features ....................2 Specifications ..................2 Dimensions and Outlines ..............3 I/O Outlets .................... 4 Packing List ..................5 Chapter 2 System Setup .......... -
Page 5: Chapter 1 Introduction
Package List General Description The P6105, a industrial 10.4 inches view area LCD Monitor comes with slim, light and reliable features to replace traditional bulky CRT for Industrial application. Its unique flat design is fit for panel mounting and VESA mounting. The display interface offers DVI-D, HDMI digital interfaces and VGA for different input source from PC system or multimedia system that let you upgrade the display don’t change anything from your system. -
Page 6: Features
P6105 User’s Manual Features High contrast color 10.4” XGA TFT LCD display support resolution up to 1024x768 Auto-dimming for different environment Flat design with NEMA4/IP65-compliant Suits with resistive touch High Brightness and Ultra-wide viewing angle with anti-glare features. Power management system conforms to VESA standard... -
Page 7: Dimensions And Outlines
P6105 User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of P6105 Introduction... -
Page 8: I/O Outlets
P6105 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the P6105. I/O outlets with VGA input and speaker Function Function Menu (Enter function) Touch & remote control via RS-232 SEL+ SEL- HDMI Exit DVI-D... -
Page 9: Packing List
P6105 User’s Manual Packing List When you receive the P6105 VGA input version, the bundled package should contain the following items: P6105 unit x 1 VGA cable x 1 RS-232 cable x1 (for resisitve touch) If you request for a cable assembly for resistive touch and remote control, please refer to section 2.4: Pin assignment. - Page 10 P6105 User’s Manual This page is intentionally left blank. Introduction...
-
Page 11: Chapter 2 System Setup
P6105 User’s Manual Chapter 2 System Setup This chapter details the system parts and components with figures. Sections include: System Configuration Panel Mounting VESA Mounting I/O Pin Assignment DC Power Waterproof Power Cable VGA PORT RS-232 PORT, support multi-function of T/S and remote... -
Page 12: System Configuration
P6105 User’s Manual System Configuration The figure below shows the side views of P6105 series. Menu: Press this button to turn on/off the OSD (On Screen Display) main menu. Press this button to activate selected items. SEL+: To scroll up the menu. -
Page 13: Panel Mounting
The P6105 is designed for panel mount application. To mount the P6105, the standard holes are on the front of P6105. VESA Mounting The P6105 provides rack mount at the back of system. Screw four screws to fix the kit in the back chassis. System Setup... -
Page 14: I/O Pin Assignment
P6105 User’s Manual I/O PIN ASSIGNMENT The P6105 supports DC-in connector, T/S port, HDMI port, DVI-D port, and Line-In port. Detail pin assignment, please refer to following information. 2.4.1 DC power Jack w/ M12 connector, 24VDC or 110VDC power input... -
Page 15: Vga Port
P6105 User’s Manual 2.4.3 VGA PORT Define Define Define Red GND N.C. Green Green GND DDC Data Blue Blue GND H-Sync N.C. +5V (In) V-Sync Ground Ground DDC Clock 2.4.4 RS 232 PORT, support multi-function of T/S and remote. Define... -
Page 16: Y Cable For Rs-232 To Resistive Touch And Remote
P6105 User’s Manual 2.4.5 Y cable for RS-232 to resistive touch and remote DB9 – Connect to P6105 DB9 male, connect to P6105 Define Define Remote RXD Touch DTR Touch TXD Touch RTS Touch RXD Remote TXD Touch DSR N.C. -
Page 17: Hdmi Port
P6105 User’s Manual 2.4.6 HDMI PORT Define Define Define TMDS2+ DDC clock Cable Detect (GND) TMDS0- DDC Date TMDS2- TMDS clock+ TMDS1+ Vin (+5V) TMDS clock- Hot plug detect TMDS1- N.C. TMDS0+ N.C. 2.4.7 DVI-D PORT Define Define Define Define TMDS2−... - Page 18 P6105 User’s Manual This page is intentionally left blank. System Setup...
-
Page 19: Appendix A Supported Input Timing Modes
P6105 User’s Manual Appendix A Supported Input Timing Modes Horizontal Timing Vertical Timing Pixel SPEC Freq. Freq. Total Active Freq. Total Active Sync Sync MODE Polar Polar Pixel Pixel Line Line 640×480 25.175 31.469 59.940 @60Hz VESA 640×480 25.175 31.469 59.940... - Page 20 P6105 User’s Manual This page is intentionally left blank. Supported Input Timing Modes...
-
Page 21: Appendix Bosd Operation
P6105 User’s Manual Appendix B OSD Operation Function Description of OSD Menu The layout and format of OSD depends on customer’s request. Description ¢ Luminance Brightness Contrast Sharpness Ambient Sense Luminance Color: Color Temperature (9300,7500,6500,user) Green Blue Color ¢ OSD Settings... - Page 22 P6105 User’s Manual This page is intentionally left blank. OSD Operation...
-
Page 23: Appendix C Ad Board Management System
P6105 User’s Manual Appendix C AD Board Management System Digital Signage System Control Tool File: ADS_Client.exe: main application ADS_RS-232_x32.dll / ADS_RS-232_x64.dll: library for application reference, have to copy to System_Disk(C:):\Windows\System32 or with ADS_Client.exe Digital Signage System Control Tool is for controlling 10 items of AD Board through serial port (RS-232). - Page 24 P6105 User’s Manual Functions and UI on application When application is executed, it will auto scan all serial port to find out correctly port you connect AD Board on. If application couldn’t find out serial port to connect to AD Board, you need select port number and Baud Rate to setup connection.
- Page 25 P6105 User’s Manual Control Items Brightness Control: scroll bar Range: 0 ~ 100 Remark: if getting or setting is failed, it will show “Brightness - Failed” Contrast Control: scroll bar Range: 0 ~ 100 Remark: if getting or setting is failed, it will show “Contrast - Failed”...
- Page 26 P6105 User’s Manual Backlight MIN: Control: drop-down list Range: 0 ~ 100 Remark: this value can’t bigger than value of Backlight MAX Remark: if getting or setting is failed, it will show “Backlight MIN - Failed” Color Temp.: Control: drop-down list Range: 6500, 7500 and 9300 Remark: if getting or setting is failed, it will show “Color Temp.
- Page 27 P6105 User’s Manual Dim: (Option) Control: button Way: ON and OFF Remark: if setting is failed, it will show “Auto-Dimming - Failed” Remark: if there is no Auto-Dimming, it will show “Auto-Dimming - Disable” 10. Adjust: Control: button Way: set only, Adjust Remark: if setting is failed, it will show “Adjust - Failed”...
- Page 28 P6105 User’s Manual This page is intentionally left blank. AD Board Management System...
