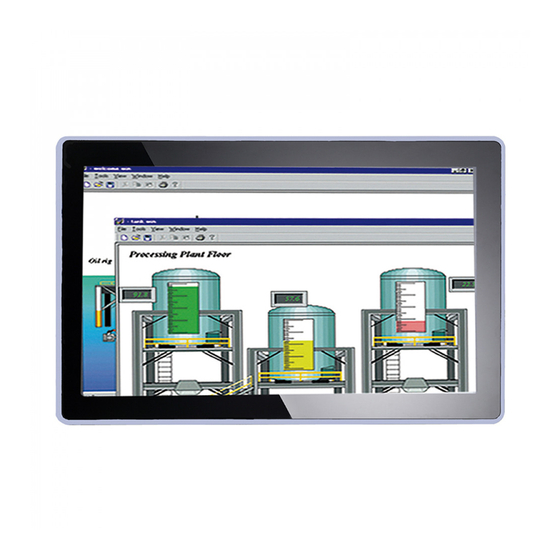

AXIOMTEK P6157W-V2 User Manual

15.6” wxga tft monitor
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
P6157W-V2
15.6" WXGA TFT Monitor
User's Manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the P6157W-V2 and is the answer not in the manual?

Questions and answers

Related Manuals for AXIOMTEK P6157W-V2

Summary of Contents for AXIOMTEK P6157W-V2

  • Page 1 P6157W-V2 15.6” WXGA TFT Monitor User’s Manual...
  • Page 2 Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd.

  • Page 3: Safety Precautions

    Most electronic components are sensitive to static electrical charge. Disconnect the power cords from the P6157W-V2 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the P6157W-V2 Series is properly grounded.

  • Page 4: Table Of Contents

    Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Features ....................2 Specifications ..................2 Dimensions and Outlines ..............3 I/O Outlets .................... 4 Packing List ..................5 Chapter 2 System Setup ..........7 System Configuration .................

  • Page 5: Chapter 1 Introduction

    Package List General Description The P6157W-V2, an industrial 15.6 inches view area LCD Monitor comes with slim, light and reliable features to replace traditional bulky CRT for Industrial application. Its unique flat design is fit for panel mounting, VESA mounting, Wall mounting and Rack mounting. The display interface offers DVI-D, HDMI and VGA digital interfaces for different input source from PC system or multimedia system that let you upgrade the display don’t change anything from your...

  • Page 6: Features

    Mounting: Support Panel mount, VESA arm mount, Wall mount and Rack mount (optional)  Net Weight  P6157W-V2: 4.5KGS  Dimension (Main Body Size)  P6157W-V2: 397mm x 247mm x 54 mm  Operation Temperature  0℃ to 55℃  Relative Humidity  20% to 90% @ 40℃, Non-Condensing ...

  • Page 7: Dimensions And Outlines

    P6157W-V2 User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of P6157W-V2: Introduction...

  • Page 8: I/O Outlets

    P6157W-V2 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the P6157W-V2. Function Function Screw type/ Menu (Enter function) Phoenix type power input SEL+ HDMI SEL- DVI-D Exit/Auto Adjust Power LED Line-In (Max: 1V rms)

  • Page 9: Packing List

     P6157W-V2 unit x 1  VGA cable x1  USB cable or RS-232 cable x1 (for resisitve touch version only ) If you can not find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction...
  • Page 10 P6157W-V2 User’s Manual This page is intentionally left blank. Introduction...

  • Page 11: Chapter 2 System Setup

    VESA Mounting  Rack Mounting System Configuration The figure below shows the side views of P6157W-V2 series. Exit: Jump out the selection icon / Auto adjust. Menu: Press this button to turn on/off the OSD (On Screen Display) main menu.

  • Page 12: Panel Mounting

    P6157W-V2 User’s Manual Panel Mounting The P6157W-V2 is designed for panel mount application. To mount the P6157W-V2, the standard set of mounting kit (included in the system packaging) is needed. ▲P6157W-V2 Panel Mount kits Wall Mounting The P6171 provides VESA mount and wall mount. Screw four screws to fix the kit in the back chassis.

  • Page 13: Vesa Mounting

    P6157W-V2 User’s Manual VESA Mounting The P6171 provides VESA mount at the back of system. Screw four screws to fix the kit in the back chassis. System Jumper Setting ★ Default Setting Jumper Jumper Setting LVDS Panel Power : 3.3V (Default)
  • Page 14 P6157W-V2 User’s Manual This page is intentionally left blank. System Setup...

  • Page 15: Appendix A Supported Input Timing Modes

    P6157W-V2 User’s Manual Appendix A Supported Input Timing Modes Supported Input Timing Modes Refresh Horizontal Vertical Pixel Standard Pixel Format Note Rate Frequency Frequency Frequency Type 640 * 480 60 Hz 31.5 kHz 59.94 Hz 25.175 MHz Industry Standard 72 Hz 37.9 kHz...
  • Page 16 P6157W-V2 User’s Manual This page is intentionally left blank. Supported Input Timing Modes...

  • Page 17: Appendix Bosd Operation

    P6157W-V2 User’s Manual Appendix B OSD Operation Function Description of OSD Menu ※The layout and format of OSD depends on customer’s request. OSD MENU Description Luminance：  Brightness  Contrast  Sharpness Luminance Color:  Color Temperature (9300,7500,6500,user)  ...
  • Page 18 P6157W-V2 User’s Manual This page is intentionally left blank. OSD Operation...
