Summary of Contents for AXIOMTEK P6103W-V3

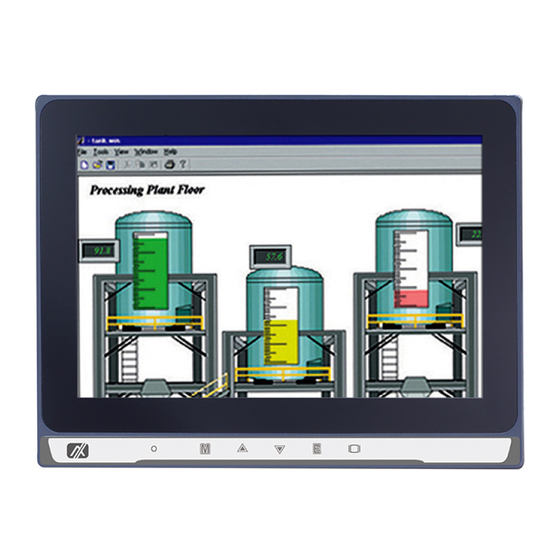

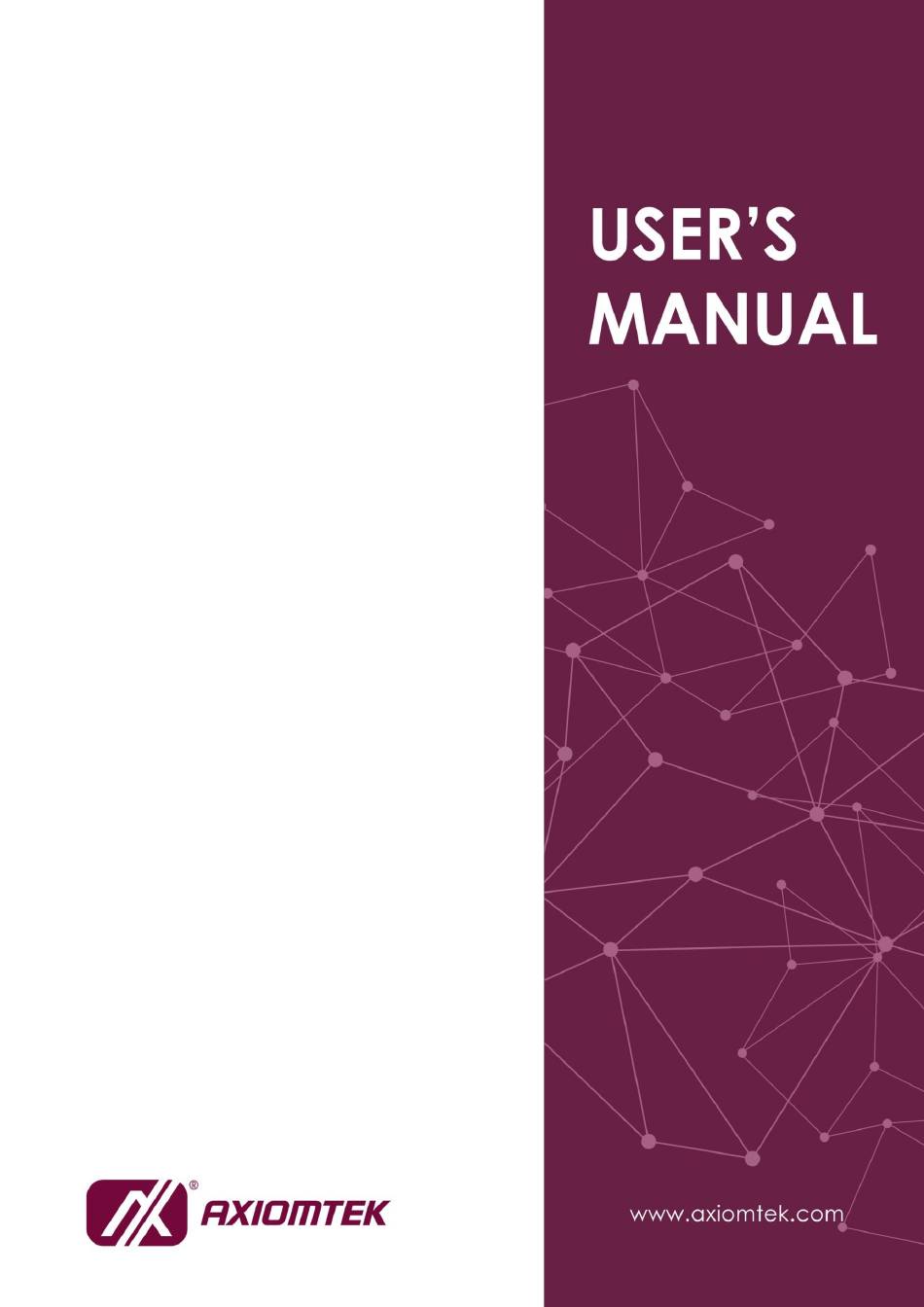

- Page 1 P6103W-V3 10.1” WXGA TFT Monitor User’s Manual...
-
Page 2: Disclaimers
Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd. -
Page 3: Safety Precautions
Most electronic components are sensitive to static electrical charge. Disconnect the power cords from the P6103W-V3 Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the P6103W-V3 Series is properly grounded. -
Page 4: Table Of Contents
Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Section 1 Introduction ..........1 General Description ................1 Features ....................2 Specifications ..................2 Dimensions and Outlines ..............3 I/O Outlets .................... 4 Packing List ..................5 Section 2 System Setup .......... -
Page 5: Introduction
P6103W-V3 User’s Manual Section 1 Introduction This chapter contains general information and detailed specifications of the P6103W-V3. Chapter 1 includes the following sections: ⚫ General Description ⚫ Features ⚫ Specifications ⚫ Dimensions and Outlines ⚫ I/O Outlets ⚫ Package List General Description The P6103W, an industrial 10.1 inches view area LCD Monitor comes with slim, light and... -
Page 6: Features
⚫ Net/Gross Weight ◼ P6103W-V3: 1.036KG / 1.6KG ⚫ Dimension (Main Body Size) ◼ P6103W-V3: 260.8 mm (10.27") (W) x 194.1 mm (7.64") (H) x 38 mm (1.5") (D) ⚫ Operation Temperature ◼ 0℃ to 50℃ ⚫ Relative Humidity ◼... -
Page 7: Dimensions And Outlines
P6103W-V3 User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of P6103W-V3 P6103W-V3: Introduction... -
Page 8: I/O Outlets
P6103W-V3 User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the P6103W-V3. Function Function Exit/Auto Adjust Audio Menu (Enter function) SEL- DVI-D SEL+ HDMI Power LED USB for Touch Power Switch Screw type or Phoenix... -
Page 9: Packing List
⚫ Panel mount kit set x 1 (optional) ⚫ HDMI cable x1(optional) ⚫ DP cable x1 (optional) ⚫ Wall mount bracket x1 (optional) If you cannot find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction... - Page 10 P6103W-V3 User’s Manual This page is intentionally left blank. Introduction...
-
Page 11: System Setup
Wall Mounting ⚫ VESA Mounting System Configuration The figure below shows the side views of P6103W-V3 series. Exit: Jump out the selection icon / Auto adjust. Menu: Press this button to turn on/off the OSD (On Screen Display) main menu. -
Page 12: Panel Mounting
P6103W-V3 User’s Manual Panel Mounting The P6103W-V3 is designed for panel mount application. To mount the P6103W-V3, the standard set of mounting kit (included in the system packaging) is needed. Step1 Sticks 4 sealing pads on the edges of chassis. -
Page 13: Wall Mounting
P6103W-V3 User’s Manual Wall Mounting The P6103W-V3 provides VESA mount and wall mount. Screw four screws to fix the kit in the back chassis. VESA Mounting The P6103W-V3 provides VESA mount at the back of system. Screw four screws to fix the kit in the back chassis. -
Page 14: Appendix A Supported Input Timing Modes
P6103W-V3 User’s Manual Appendix A Supported Input Timing Modes Supported Input Timing Modes Pixel Format Refresh Rate Standard Type NOTE 640*480 60 Hz Industry Standard 75 Hz VESA Standard 800*600 60 Hz VESA Guidelines 75 Hz VESA Standard 1024*768 60 Hz... - Page 15 P6103W-V3 User’s Manual This page is intentionally left blank. Supported Input Timing Modes...
-
Page 16: Appendix Bosd Operation
P6103W-V3 User’s Manual Appendix B OSD Operation Function Description of OSD Menu ※The layout and format of OSD depends on customer’s request. OSD MENU Description Press "+" to increase or "‐" to decrease The Backlight, Brightness or Contrast. or Sharpness. - Page 17 P6103W-V3 User’s Manual Gamma Set the Gamma to 2.0, 2.2, 2.4 and off. Color Temp You can select the screen’s color level of the white color field from the default color temperature settings. Also, you can fine tune the color temperature by USER option if necessary.
- Page 18 P6103W-V3 User’s Manual Select the Video input Source ⚫ Auto Select ⚫ ⚫ ⚫ HDMI Input Volume Adjust the Volume. Mute Set the Mute on/off. Audio OSD Operation...
- Page 19 P6103W-V3 User’s Manual Reset Menu Time Adjust the Menu Time. OSD H. Position. Adjust the horizontal position of the OSD Menu screen’s image OSD V. Position. Adjust the vertical position of the OSD Menu screen’s image Language Set the Language English/繁體中文...
- Page 20 P6103W-V3 User’s Manual This page is intentionally left blank. OSD Operation...
