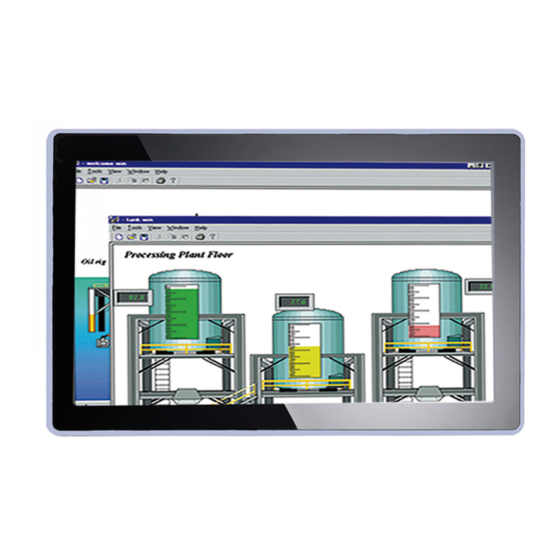

- Page 1 P6217W 21.5” FHD TFT Monitor User’s Manual...
-
Page 2: Disclaimers
Axiomtek does not make any commitment to update the information in this manual. Axiomtek reserves the right to change or revise this document and/or product at any time without notice. No part of this document may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or otherwise, without the prior written permission of Axiomtek Co., Ltd. -
Page 3: Safety Precautions
Most electronic components are sensitive to static electrical charge. Disconnect the power cords from the P6217W Series before making any installation. Be sure both the system and the external devices are turned OFF. Sudden surge of power could ruin sensitive components. Make sure the P6217W Series is properly grounded. -
Page 4: Table Of Contents
Table of Contents Disclaimers ..................... ii Safety Precautions ..................iii Chapter 1 Introduction ..........1 General Description ................1 Features ....................2 Specifications ..................2 Dimensions and Outlines ..............3 I/O Outlets .................... 4 Packing List ..................5 Chapter 2 System Setup .......... -
Page 5: Chapter 1 Introduction
Package List General Description The P6217W, an industrial 21.5 inches view area LCD Monitor comes with slim, light and reliable features to replace traditional bulky CRT for Industrial application. Its unique flat design is fit for panel mounting, VESA mounting, Wall mounting and Rack mounting. The display interface offers DVI-D, HDMI and VGA for different input source from PC system or multimedia system that let you upgrade the display don’t change anything from your system. -
Page 6: Features
P6217W User’s Manual Features High contrast color 21.5” FHD TFT LCD display support resolution up to 1920x1080 Flat design with NEMA4/IP65-compliant Suits with resistive touch or glass High Brightness and Ultra-wide viewing angle with anti-glare features. -
Page 7: Dimensions And Outlines
P6217W User’s Manual Dimensions and Outlines The following diagrams show the dimensions and outlines of P6217W P6217WPC: Introduction... -
Page 8: I/O Outlets
P6217W User’s Manual I/O Outlets Please refer to the following illustration for I/O locations of the P6217W. 10 11 12 Function Function Screw type or Exit/Auto Adjust Phoenix type power input Menu (Enter function) HDMI SEL- DVI-D SEL+ Power LED... -
Page 9: Packing List
Adaptor x1 (for AC version only) Panel mount kit x 16 (optional) HDMI cable x1(optional) DVI cable x1 (optional) Wall mount bracket x1 (optional) If you cannot find the package or any items are missing, please contact Axiomtek distributors immediately. Introduction... - Page 10 P6217W User’s Manual This page is intentionally left blank. Introduction...
-
Page 11: Chapter 2 System Setup
Wall Mounting VESA Mounting System Configuration The figure below shows the side views of P6217W series. Exit: Jump out the selection icon . Auto adjust. Menu: Press this button to turn on/off the OSD (On Screen Display) main menu. -
Page 12: Panel Mounting
The P6217W is designed for panel mount application. To mount the P6217W, the standard set of mounting kit (included in the system packaging) is needed. ▲P6217W Panel Mount kits Wall Mounting The P6217W provides VESA mount and wall mount. Screw four screws to fix the kit in the back chassis. System Setup... -
Page 13: Vesa Mounting
P6217W User’s Manual VESA Mounting The P6217W provides VESA mount at the back of system. Screw four screws to fix the kit in the back chassis. System Setup... -
Page 14: System Jumper Setting
P6217W User’s Manual System Jumper Setting 12V DC IN 12V in only: JP3(1-3)(2-4), JP4(1-3)(2-4) 24V DC IN 24V in only: JP3(3-5)(4-6), JP4(3-5)(4-6) ★ Default Setting Jumper Jumper Setting 12V DC in (VINO-12V) (Default) Short 1-3, Short 2-4 24V DC in (VINO-12V) -
Page 15: Appendix A Supported Input Timing Modes
P6217W User’s Manual Appendix A Supported Input Timing Modes Supported Input Timing Modes Refresh Horizontal vertical Pixel Standard Pixel Format NOTE Rate Frequency Frequency Frequency Type 640*480 60 Hz 31.5 kHz 59.94 Hz 25.175 MHz Industry Standard 72 Hz 37.9 kHz 72.80 Hz... - Page 16 P6217W User’s Manual This page is intentionally left blank. Supported Input Timing Modes...
-
Page 17: Appendix Bosd Operation
P6217W User’s Manual Appendix B OSD Operation Function Description of OSD Menu ※The layout and format of OSD depends on customer’s request. OSD MENU Description Luminance： Brightness Contrast Sharpness Luminance Picture Phase Clock H position ... - Page 18 P6217W User’s Manual This page is intentionally left blank. OSD Operation...
