Summary of Contents for Tornado CK ULW 13/1

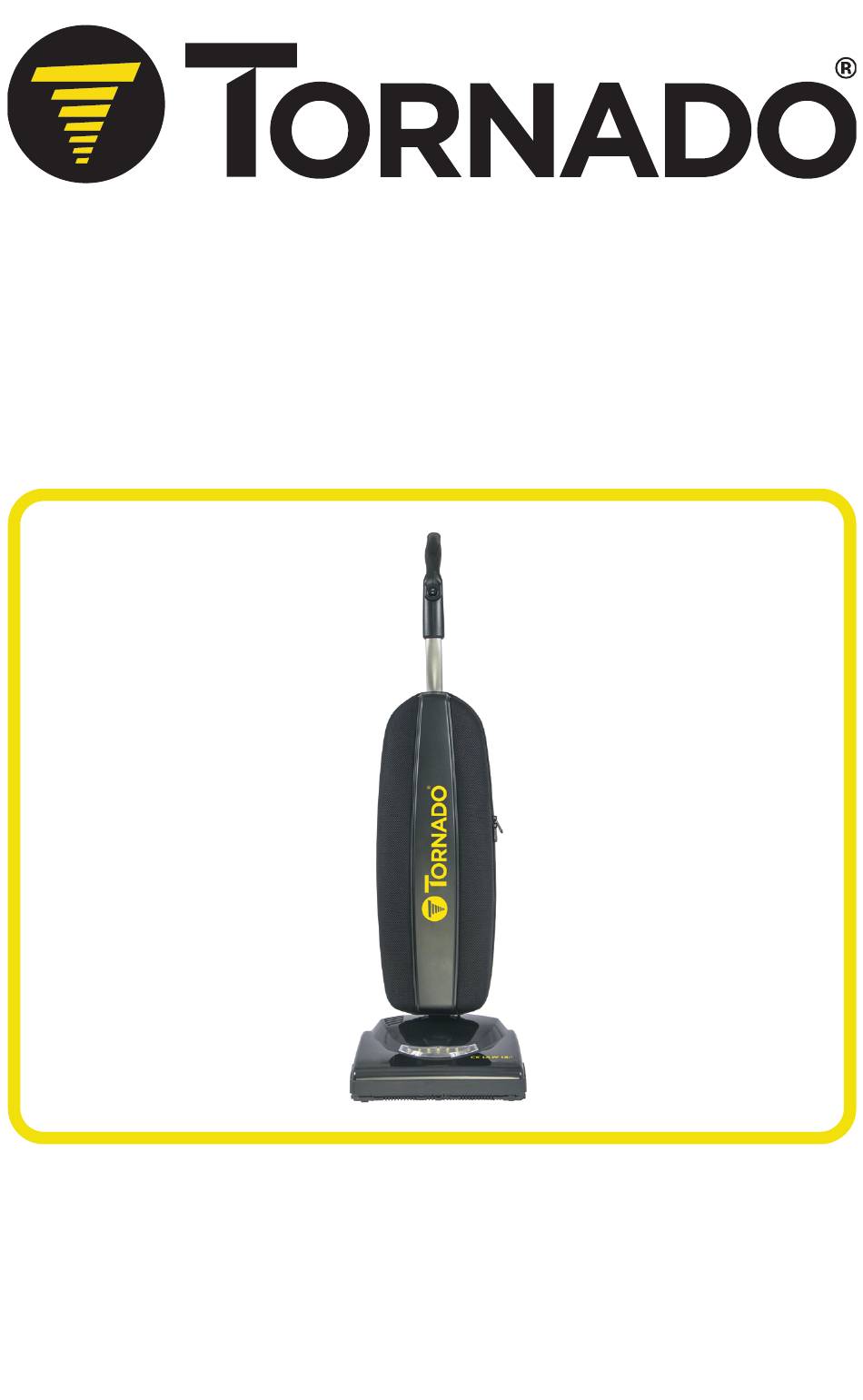

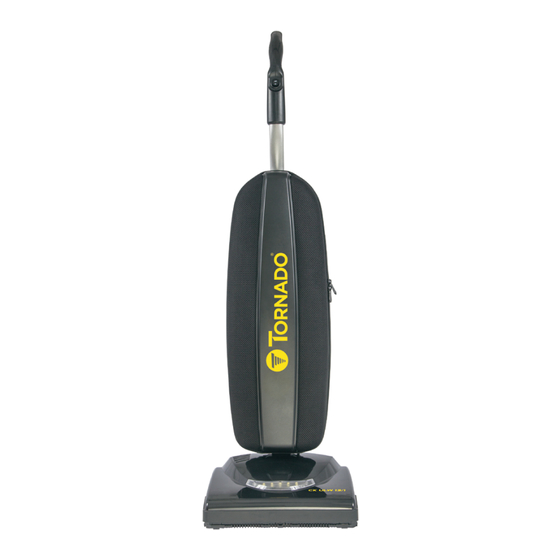

- Page 1 Tornado CK ULW 13/1 OPERATIONS AND MAINTENANCE MANUAL FOR COMMERCIAL USE ONLY Model No. TV280-W12-U...
-
Page 2: Table Of Contents
CONTENTS Getting Started Introduction Warranty Grounding Instructions Important Safety Instructions Technical Specifications Operating Instructions Operator Guidelines Key Features Assembly Operation Maintenance Common Replacement Parts For Best Performance... -
Page 3: Introduction
INTRODUCTION Your new Tornado unit is a high quality, precision-made product. All parts used in the manufacturing of this unit have passed rigid quality control standards prior to assembly. Please safeguard the original receipt/invoice given at the time of purchase. If you experience any problems with your unit during the warranty period, the original receipt/invoice will act as proof of purchase. -
Page 4: Warranty
WARRANTY Warranty Within 30 days of purchase, to activate product warranty, go to: https://tornadovac.com/services/warranty-registration-form.aspx For warranty information go to www.tornadovac.com. Warning Labels Prior to operating the unit, read and understand completely this owner’s manual paying special attention to warning labels. These labels indicate a potentially hazardous situation that could result in death or serious injury if not avoided. -
Page 5: Grounding Instructions
GROUNDING INSTRUCTIONS This vacuum cleaner must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This vacuum cleaner is equipped with a cord having an equip- ment-grounding conductor and grounding plug. -
Page 6: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS Read and understand this owner’s manual and all labels on the unit before operating. Safety is a combination of common sense, staying alert, and knowing how your unit works. To reduce the risk of personal injury or damage to your unit use only as indicated in this manual. FOR COMMERCIAL USE ONLY To reduce the risk of fire, electrical shock, or injury, the instructions below must be read and understood... - Page 7 (e.g., due to spills) follow the decontamina- tion procedures in force at the user site. If in any doubt about the condition of the machine, contact Tornado or the dealer/ agent who supplied the machine. SAVE THESE INSTRUCTIONS...
-
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS Specification Value Model TV280-W12-U 5.5 A Power 12” Pigtail w/30’ Cord Cord Length Front and Side Edge Cleaning Automatic Height Adjustment 8 lbs. Weight 79 db(A)/69.9 db(A) (Low Speed) Decibel Wood Brushroll HEPA Media Vacuum Bag UL Approved Certifications LEED Qualifying (Low Speed Only) OPERATOR GUIDELINES... -
Page 9: Key Features
KEY FEATURES 1 Ergonomic Handle 2 On/Off Power Switch, Two Speed 3 Bag Compartment 4 Vacuum Nozzle 5 Headlight 6 Furniture Guard 7 Circuit Breaker Reset Button 8 Handle Release Pedal 9 Quick Release Cord Hook 10 Upper Cord Hook 11 Cord Restraint... -
Page 10: Assembly
ASSEMBLY Attaching the Handle to the Vacuum NOTE: Do not plug in the vacuum until it is completely assembled. The vacuum cleaner and the handle are packed separately and require assembly. • Thread the cord through the lower and upper cord guides on the back of the vacuum bag (Fig. - Page 11 ASSEMBLY Attaching the Extension Power Cord to the Cord Lock • Connect the extension power cord to the pigtail cord on the vacuum. • Snap the extension power cord into the slot on the end of the cord lock. • Turn the knob on the bottom of the cord lock to tighten the lock and prevent the cords from pulling apart (Fig.
-
Page 12: Operation
OPERATION Reclining the Handle • Press the handle release pedal located on the back of the vacuum with your foot to recline the handle (Fig. 1). On/Off Switch, Two Speed • The power switch located on the vacuum Fig. 1 handle, is a three-way switch (Fig. - Page 13 OPERATION Vacuuming Under Furniture Your vacuum will lay flat on the floor for effective cleaning under beds and tables. • Press the handle release pedal once for normal vacuum cleaning (Fig. 1). • Continue to lower the handle to enable the vacuum to lay flat on the floor (Fig. 2). Fig.
-
Page 14: Maintenance
MAINTENANCE Replacing the Vacuum Bag NOTE: Unplug the vacuum cleaner from the electrical outlet before changing the bag. • Unzip the bag compartment. • Remove the used vacuum bag by pulling the green bag collar tab away from the vacuum (Fig. 1). Slide the used bag out of the bag holder which automatically seals the bag opening (Fig. - Page 15 MAINTENANCE Removing and Reinstalling the Bottom Plate WARNING! To reduce the risk of electrical shock or injury from moving parts, unplug before servicing or cleaning. To Remove the Bottom Plate: • Press the handle release pedal to place the vacuum cleaner in the flat position. •...
- Page 16 MAINTENANCE Replacing the Agitator Belt WARNING! To reduce the risk of electrical shock or injury from moving parts, unplug the unit before servicing or cleaning. NOTE: To ensure maximum cleaning efficiency, the belt should be checked regularly to be sure it is in good condition. Check to see if the belt is stretched, cracked, or if excessive slipping is occurring.
- Page 17 MAINTENANCE Resetting the Circuit Breaker WARNING! To reduce the risk of electrical shock or injury from moving parts, unplug the unit before servicing or cleaning. Your vacuum features a circuit breaker to protect the machine against damage due to a surge in the electrical current. Electrical surging can be a result of, though not limited to, a jammed motor fan.
-
Page 18: Common Replacement Parts
COMMON REPLACEMENT PARTS • Genuine HEPA Media Vacuum Bags CLH-6 • Genuine Paper Vacuum Bags B211-8800 • Genuine Vacuum Belts B014-0814B FOR BEST PERFORMANCE Keep your vacuum clean and in good operating condition. • Change the vacuum bag once a month or when the bag is 2/3 full to maximize cleaning performance. - Page 19 NOTES...
- Page 20 Tornado Industries, LLC 3101 Wichita Court Ft. Worth, TX 76140-1755 Phone: 800-VACUUMS Fax: 1-817-551-0719 WWW.TORNADOVAC.COM Record of Purchase Serial Number: Purchase Date: Dealer: Phone Number: T-OMTV280-W12-U 12/2022...
