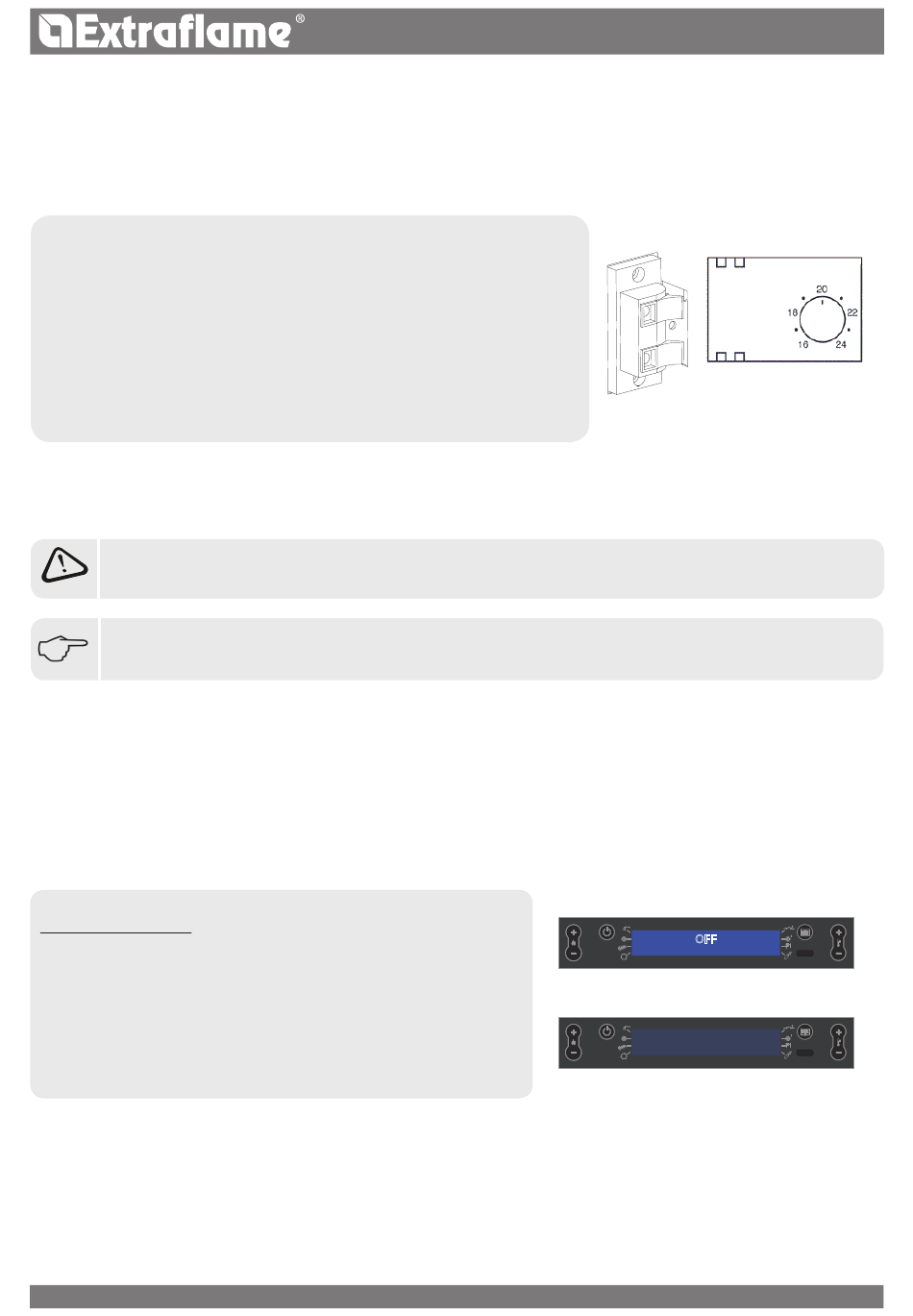

aDDitional therMostat (optional)

The appliance can control the room temperature using an additional external thermostat (optional).
after ignition (pressing key 1 or via chrono mode), the stove will work to reach the setting set on the thermostat, displaying
closed). The standard room probe is automatically ignored.
When the room temperature has been reached (open contact) the stove will go to minimum, displaying
TO iNsTall aND eNaBle iT:
a mechanical or digital thermostat is required.
Š
remove the plug from the socket.
Š
referring to the figure to the side, connect the two thermostat wires
Š
(dry contact - not 220 v!) on the relative terminals at the back of the
machine, one is red and the other one is black.
power the stove.
Š
press key 5, setting the temperature on low.
Š
The stove is now configured correctly.
it will work controlling the additional external thermostat.
installation Must Be perForMeD By qualiFieD staFF anD/or the ManuFaCturer's teChniCal
aFter-sales assistanCe
there are two stove operatinG MoDes, whiCh are DiFFerent aCCorDinG to the
stanD- By FunCtion. see "stanD - By" Chapter.

user Menu

Display

This menu allows to adjust the brightness of the display. The possible settings range from OFF - 10 to 31.
activating OFF, the back light of the display will go off after a preset delay.
By adjusting it between 10 and 31 the lighting intensity will be adjusted. (10 = minimum brightness 31 = maximum brightness).
The back light will go on as soon as a key is pressed or if an alarm should be triggered in the machine.
CONTrOls prOCeDUre
press key 6 and set CloCk will appear.
Š
press key 2 several times until user is displayed.
Š
press key 6.
Š
"Display" will appear.
Š
Use keys 4 -5 to select the brightness of the display.
Š
press key 6 to confirm and key 1 to return to the previous menus
Š
up to the initial status.

pellet FeeD aDjustMent

The following menu allows to adjust the percentage of pellet feed.
if the stove has functioning problems owing to the quantity of pellets, adjust pellet feeding directly from the control board.
The problems correlated to the amount of fuel can be divided into 2 categories:
2 1
3
2 1
3
ENGLISH
(contact
work
MoDulate.
