- Page 1 Installation Guide ® AM100-Pro Vehicle Cell Signal Booster Kit...
-
Page 2: Table Of Contents
Index Package Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 STEP 1 Mount the Outside Antenna . -
Page 3: Package Contents

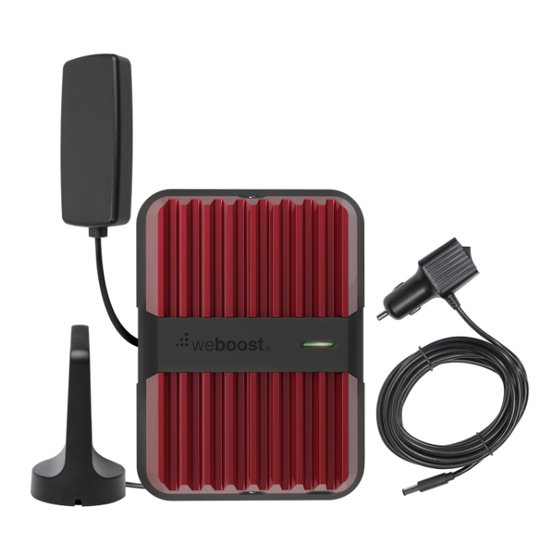

Package Contents Booster & Outside Power Inside Mounting Antenna Cable Antenna Bracket (301126) (850029) (314401) -
Page 4: Step 1 Mount The Outside Antenna
STEP 1 Mount the Outside Antenna 30cm away from Identify a location on the top of your vehicle windows (including sunroofs) that is: ■ Near the center of the roof . ■ At least 30cm away from any other antennas . ■... - Page 5 (STEP 1 cont .) See options on how cable can be routed with different vehicles. Note: When going though a car wash, remember to remove your antenna . Car/Sedan: Cable routed into rear side door . SUV/Van/Hatchback: Cable routed into top of hatchback door .
-
Page 6: Step 2 Mount The Inside Antenna
STEP 2 Mount the Inside Antenna Identify a place to mount the in-vehicle seat mounting antenna, either on the side of the seat or on option the dash and mount . The location should be at least 45cm but no more than 92cm from where the cellular device will be used . -
Page 7: Step 3 Connect Outside Antenna To Booster
Antenna to Booster Connect the cable from the outside antenna to the port labeled “Outside Antenna” on the AM100-Pro booster . Note: The Velcro® strip on the bottom of the booster can also be used to keep booster from sliding around . -
Page 8: Step 5 Connect Power Supply To Booster
"12V DC" then plug the power adapter into vehicle’s 12V DC power supply . Push switch to ON position . If your AM100-Pro is working correctly, the light on the booster will be green . Use only the power supply provided in this package. -
Page 9: Booster Light Patterns
. If you are not experiencing the desired boost in coverage then refer to the Troubleshooting section . LIGHT OFF If the AM100-Pro booster’s light is off, verify your power supply has power . - Page 10 (Booster Light Patterns cont .) NOTE: The AM100-Pro booster can be reset by disconnecting and reconnecting the power supply . After troubleshooting you must initiate a new power cycle by disconnecting and then reconnecting power to the booster .
-
Page 11: Troubleshooting
Troubleshooting FIXING BLINKING OR RED LIGHT ISSUES This section is only applicable if the Booster is red or blinking red and you are not experiencing the desired signal boost. ■ Unplug the booster’s power supply . ■ Relocate the inside and outside antenna further from each other . The objective is to increase the separation distance between them, so that they will not create this feedback condition discussed before . - Page 12 (Troubleshooting cont .) FREQUENTLY ASKED QUESTIONS How can I contact customer support? Customer Support can be reached at sales@boltontechnical.co.za Why do I need to create distance between the Outside Antenna and Inside Antenna? Antennas connected to a booster create spheres of signal . When these spheres overlap, a condition called oscillation occurs .
-
Page 13: Safety Guidelines
Safety Guidelines Use only the power supply provided in this package . Use of a non-weBoost product may damage your equipment . Connecting this signal booster directly to the cell phone with use of an adapter will damage the cell phone . -
Page 14: Specifications
Specifications AM100-Pro Cell Signal Booster Model 520005 Connectors 50 Ohms Antenna Impedance Frequency 1920-1980 MHz, 1710-1785 MHz, 2500-2570 MHz, 880-915 MHz, 2110-2170 MHz, 1805-1880 MHz, 2620-2690 MHz, 925-960 MHz Uplink Power 2100 MHz B1 900 MHz B8 1800 MHz B3... -
Page 15: Warranty
DISCLAIMER: The information provided by weBoost is believed to be complete and accurate . However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use . - Page 16 JT Business Park, 5 Rydal Lane, Unit 4, Longlake, 1609 www .boltontechnical.co.za sales@boltontechnical.co.za Copyright © 2021 weBoost . All rights reserved . Wilson Electronics products covered by U .S . patent(s) and pending application(s) For patents go to: weboost .com/us/patents NOT AFFILIATED WITH WILSON ANTENNA...
