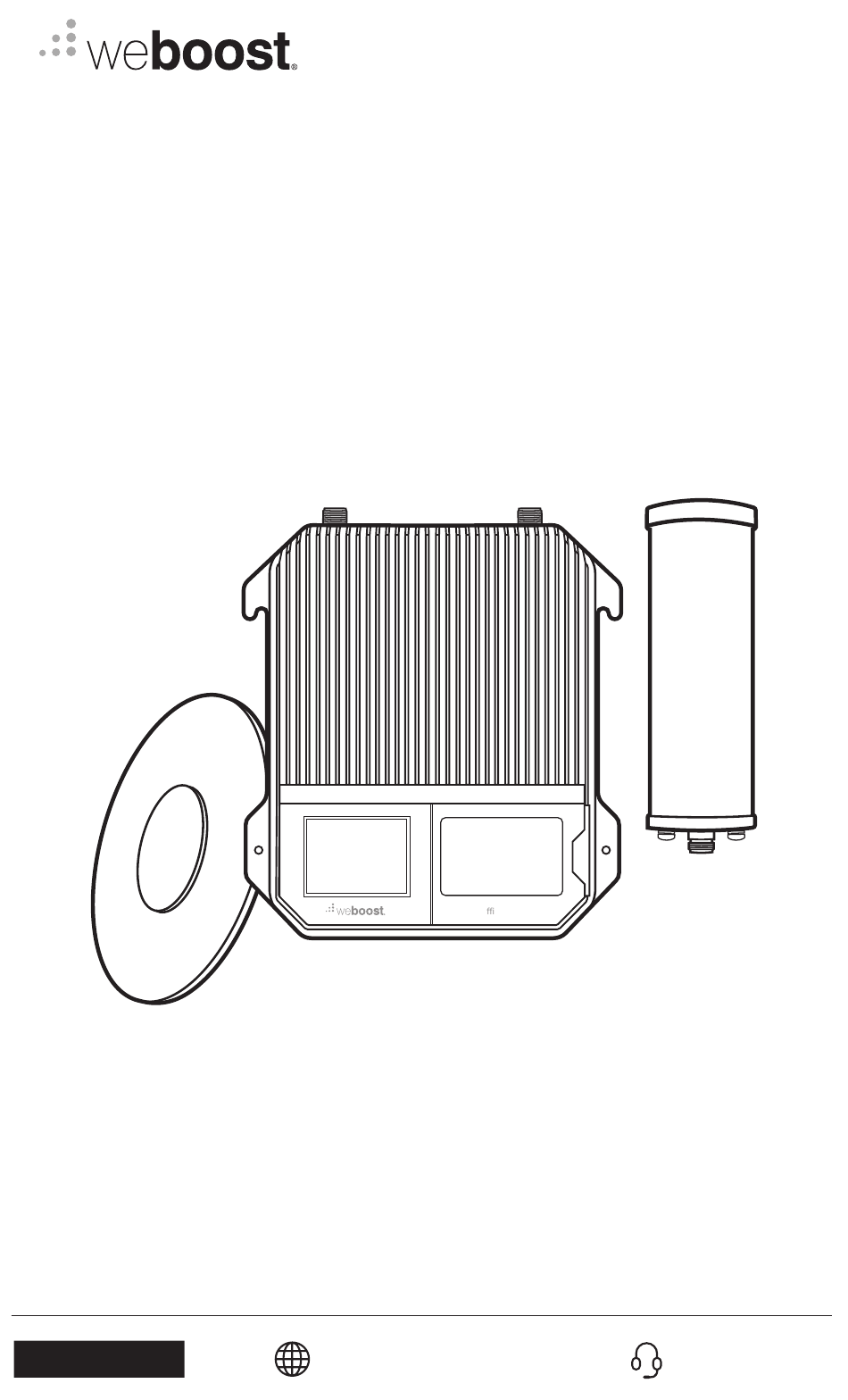

- Page 1 A WILSON ELECTRONICS BRAND Office 200 Cell Signal Booster O ce 200 Installation Guide support.weboost.com 866.294.1660 NEED HELP?
- Page 2 ______ Index Package Contents Preparation Inside Antenna & Booster Placement STEP 1: Mount Outside Antenna STEP 2: Route & Connect Outside Antenna To Booster STEP 3: Route & Connect Inside Antenna To Booster STEP 4: Power Up The Booster STEP 5: Measuring Booster Performance Menu System Troubleshooting...
- Page 3 ______ Package Contents Office 200 50 Ohm Kit Office 200 Inside Outside 75’ & 60’ 2’ Wilson 400 Booster Antenna Antenna Wilson 400 Cables Cable (314407) (314422) (952360 & 952375) (952302) Power Lightning Surge Cable Mounting Supply Protector Clips (850026)
-
Page 4: Key Features
The amplifier will adjust its gain level up or down as required by the conditions of the immediate signal environment. Color LCD Touch Screen: The Office 200 utilizes a color LCD touch screen for assessing amplifier performance, making adjustments to the outside antenna, and turning bands on and off. - Page 5 Make sure the following materials are prepared and ready for your installation. 1 to 2 hours Ladder Drill 1” - 2” diameter existing pole for mounting Outside Antenna (#901117 Pole Mount can be purchased separately if needed) Recommended: Power Strip with surge protection OFFICE 200 CELL PHONE SIGNAL BOOSTER...
-
Page 6: Installation Diagram
Installation Diagram 60 FEET HORIZONTAL OR 25 FEET VERTICAL DISTANCE Troubleshooting section recommends increasing distance further if needed. Outside Antenna 75’ Coax Cable Lightning Surge Protector 60’ Coax Cable Inside Antenna Booster to power CELL PHONE SIGNAL BOOSTER OFFICE 200... - Page 7 24” away from inside antenna. NOTE: Do not connect booster to power until the system is fully installed. drywall ceiling mount Plastic Nut Tab Ring O ce 200 OFFICE 200 CELL PHONE SIGNAL BOOSTER...
-
Page 8: Step 2: Mount Outside Antenna
Outside Antenna L-Bracket U-Bolt Pole Bracket existing pole NOTE: Mounting on existing roof exhaust pipe would be a good time-saver option. Watch out for power lines. CELL PHONE SIGNAL BOOSTER OFFICE 200... - Page 9 Cable Mounting Clips Lightning Surge Antenna provided Protector 75’ Coax Cable 2’ Coax Cable Booster Route cable to the Office 200 booster and connect to the port labeled ‘OUTSIDE ANTENNA’. Outside Antenna Lightning Surge Protector Booster OFFICE 200 CELL PHONE SIGNAL BOOSTER...
- Page 10 Connect the black 60 ft. coax cable to inside antenna and route to the Office 200 booster and connect to the port labeled ‘INSIDE ANTENNA’. Cable Mounting Clips provided 60’ Coax Cable Inside Antenna Booster Outside Antenna Inside Antenna Booster CELL PHONE SIGNAL BOOSTER OFFICE 200...
-
Page 11: Step 5: Power Up The Booster
NOTE: We strongly recommend using a power strip with surge protection. O ce 200 O ce 200 to power 60 FEET HORIZONTAL OR 25 FEET VERTICAL DISTANCE Troubleshooting section recommends increasing distance further if needed. Outside Antenna Inside Antenna Booster to power OFFICE 200 CELL PHONE SIGNAL BOOSTER... -
Page 12: Measuring Booster Performance
Network Type and Strength (exact options/wording depends on phone model). iPhone is a registered trademark of Apple Inc. Android is a trademark of Google Inc. All Other Phones & Alternate Methods Go to www.weboost.com/signalstrength CELL PHONE SIGNAL BOOSTER OFFICE 200... - Page 13 POOR DEAD ZONE SIGNAL STRENGTH 3G/1x -100 -101 -109 -110 DID YOU KNOW a signal increase of just 3dB is 2 4G/LTE -105 -106 -110 -111 -119 -120 times the power and signal amplification! OFFICE 200 CELL PHONE SIGNAL BOOSTER...
-
Page 14: Menu System
______ Menu System The Office 200 takes about 5 seconds to boot up. Once boot up is complete, the home screen will appear, showing the amplification and status of each port and band. Home Screen Start Up Screen Band Menu Color Desrciption GREEN: A solid green light indicates that a band is operating correctly with maximum allowable gain. - Page 15 Settings Screen Tap icon to view the Settings Screen. Bands can be disabled/enabled by tapping the desired band. Note: disabling a cell band is not recommended. Bands should only be disabled by expert installers. OFFICE 200 CELL PHONE SIGNAL BOOSTER...
- Page 16 To go back to the home screen tap on the home icon. To view specific band information (such as the strength of the received uplink & downlink signal, status details and the amplifier gain) tap desired band on the home screen. CELL PHONE SIGNAL BOOSTER OFFICE 200...
- Page 17 By tapping on the desired Band, a more detailed screen will appear for better troubleshooting. Note: If the reduced gain due to oscillation is greater or equal to 60dB, this condition will be displayed as Green instead of Yellow and no action is necessary. OFFICE 200 CELL PHONE SIGNAL BOOSTER...
-
Page 18: Troubleshooting
BE RESOLVED. YOUR CARRIER’S BAND HAS NOT BEEN AFFECTED. If the bands are any color other than green, use the touchscreen LCD and tap any given band that’s not green to see troubleshooting options. support.weboost.com 866.294.1660 NEED HELP? CELL PHONE SIGNAL BOOSTER OFFICE 200... -
Page 19: Safety Guidelines
______ Safety Guidelines Use only the power supply provided in this package. Use of a non-weBoost power supply may damage your equipment. The signal booster unit is designed for use in an indoor, temperature-controlled environment (less than 100 degrees Fahrenheit). It is not intended for use in attics or similar locations subject to temperatures in excess of that range. -
Page 20: Antenna Kit Options
______ Antenna Kit Options The following accessories are certified by the FCC to be used with the Office 200 Booster. BAND 12/17 BAND 13 BAND 5 BAND 25/2 BAND 4 Outside antenna maximum permissible antenna gain (dBi) 50Ω Inside antenna maximum permissible -0.4... -
Page 21: Specifications
This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment. - Page 22 This warranty does not apply to any Signal Boosters determined by weBoost to have been subjected to misuse, abuse, neglect, or mishandling that alters or damages physical or electronic properties.
- Page 23 Notes support.weboost.com 866.294.1660 NEED HELP? OFFICE 200 CELL PHONE SIGNAL BOOSTER...
- Page 24 3301 East Deseret Drive, St. George, UT 866.294.1660 www.weboost.com support.weboost.com Copyright © 2021 weBoost. All rights reserved. weBoost products covered by U.S. patent(s) and pending application(s) For patents go to: weboost.com/us/patents NOT AFFILIATED WITH WILSON ANTENNA GDE000415_Rev01_05.20.21...
