Summary of Contents for weBoost Drive AM100-Pro

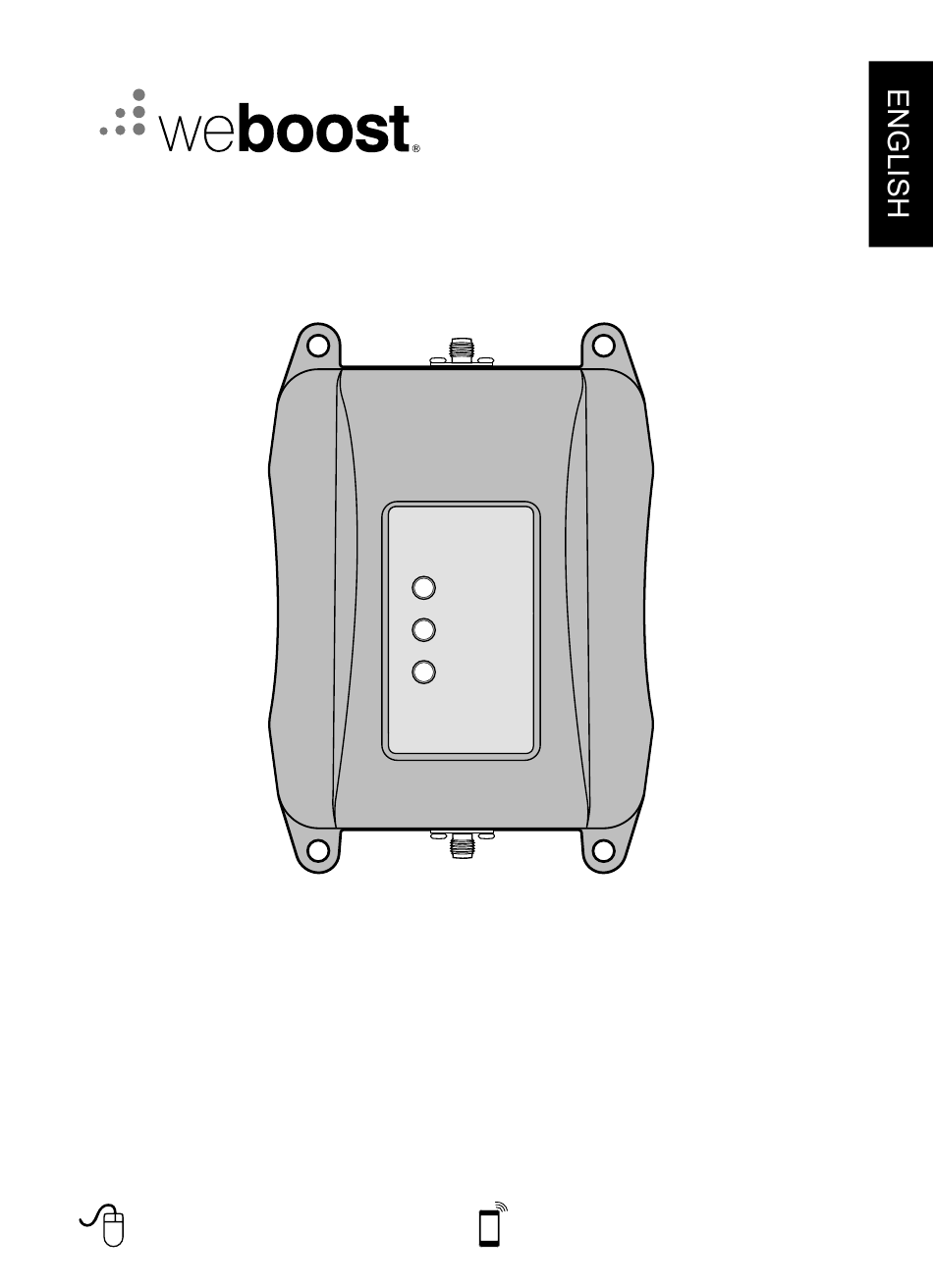

- Page 1 Drive AM100-Pro Cellular Signal Booster Multi-User Tri-Band www.techlineglobal.com Mon-Fri 8 am to 6 pm. Email: support@techlineglobal.com...
-
Page 2: Table Of Contents
THE Drive AM100-Pro SIGNAL BOOSTER MAY REMAIN ON, IN VEHICLES WHOSE 12V DC POWER SOURCES DO NOT AUTOMATICALLY SHUTDOWN WHEN THE VEHICLE IS TURNED OFF. THIS COULD RESULT IN DISCHARGING THE VEHICLES BATTERY IN ONE TO TWO DAYS. Installation Instructions for the Following weBoost Signal Boosters:... -
Page 3: Package Contents
Outside Antenna Appearance of device and accessories may vary. Before Getting Started Installation You can install your Drive AM100-Pro Before you install your Drive AM100-Pro Signal Booster in your vehicle using the Booster and start enjoying improved following steps. NOTE: Before completing cellular reception please do the following: your installation, create a “soft”... - Page 4 • When you have tested the The outside antenna must be installed functionality of your Drive AM100- vertically on a metallic surface. Pro Signal Booster, mount the inside antenna by peeling off the backing of the Velcro and attach it to your ®...
-
Page 5: Troubleshooting & Understanding Lights
Note: The Drive AM100-Pro Signal Booster properly inserted. Then check the 12 may remain on, in vehicles whose volt power from the car socket and the 12V DC power sources do not fuse. Replace the fuse if necessary. automatically shutdown when the Red light: A red light indicates oscillation vehicle is turned off. -
Page 6: Additional Faq
Connecting the Signal Booster directly to the cell phone with use of an adapter will damage the cell phone. WARNING: Use only the power supply provided in this package. Use of a non-weBoost product may damage your equipment. WARNING: The Signal Booster unit is designed for use in an indoor, temperature-controlled environment (less than 150 degrees Fahrenheit). -
Page 7: Signal Booster Specifications
Signal Booster Specifications Drive AM100-Pro Product AM100-Pro Model Number AM100-Pro Connectors Antenna Impedance OHm Frequency MHz 1920-1980 / 2110-2170 1710-1785 / 1805-1880 880-915 / 925-960 Bands Passband Gain UL/DL 53.9 / 53.7 49.8 / 51.8 49.3 / 50.1 20 dB Bandwidth (MHz) Typical 74.8... - Page 8 The information provided by weBoost is believed to be complete and accurate. However, no responsibility is assumed by weBoost for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
