weBoost 473105 User Manual

weBoost 473105 User Manual

Cellular signal booster

Advertisement

Quick Links

Home 3G
Cellular Signal Booster
Need help?
https://cellphonesignalbooster.us
Customer Support
800-501-3153
Mon.- Fri. Hours: 7 am to 6 pm MST

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 473105 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for weBoost 473105

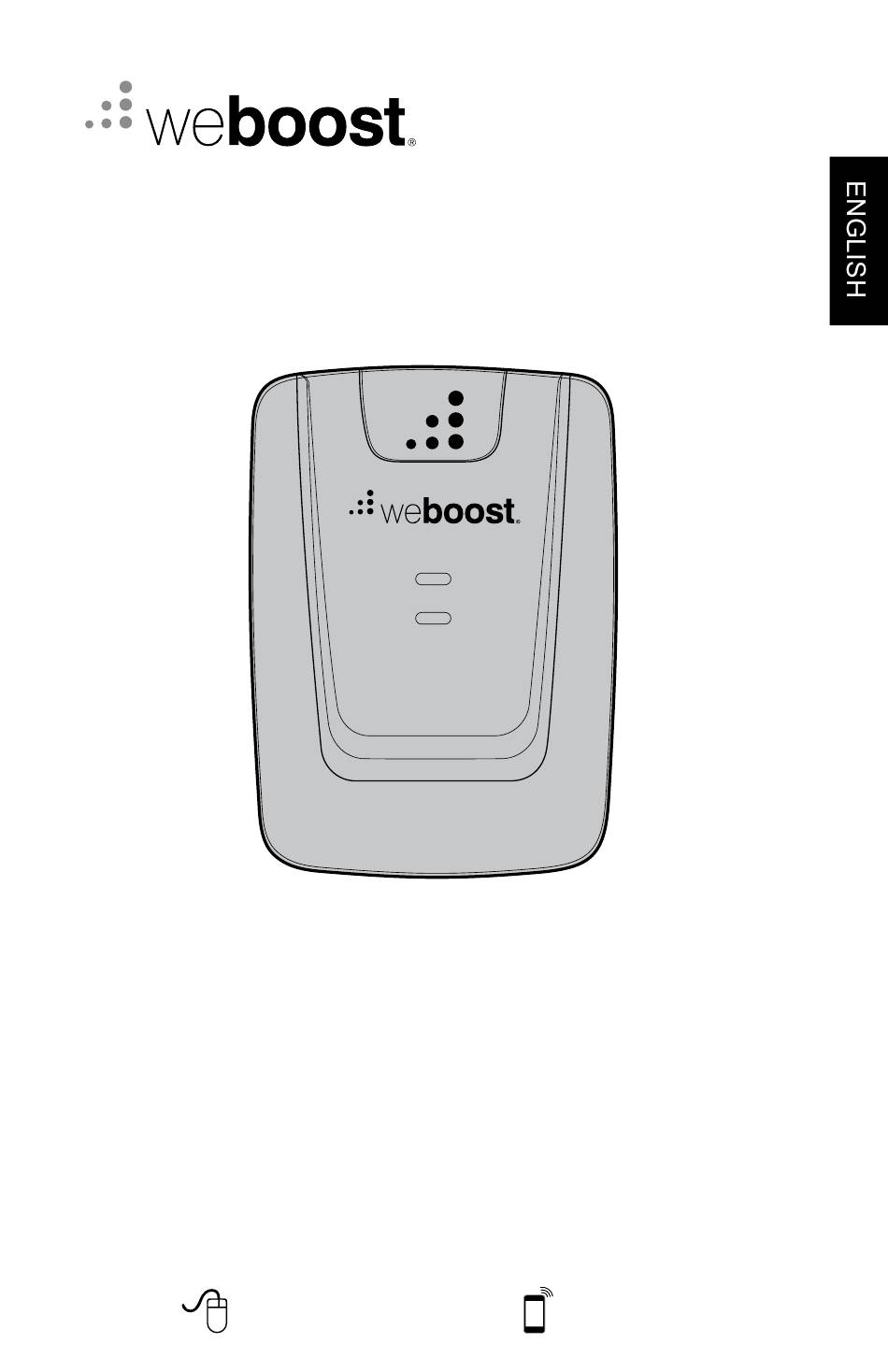

  • Page 1 Home 3G ™ Cellular Signal Booster Need help? https://cellphonesignalbooster.us Customer Support 800-501-3153 Mon.- Fri. Hours: 7 am to 6 pm MST...
  • Page 2: Table Of Contents

    FAILURE TO DO THIS WILL VOID YOUR WARRANTY IN THE EVENT OF A POWER SURGE OR LIGHTNING STRIKE. Installation Instructions for the Following weBoost Signal Booster: Home 3G™ Adjustable Gain In-Building Wireless 800/1900 MHz SmarTech ™ Signal Booster Model # 473005...
  • Page 3: Package Contents

    Package Contents Accessories packaged may not exactly match the below photos due to different kit options Coax Cable Home 3G Desktop Antenna Cradle Antenna Kit AC Power Supply Cable (30’ 950630) (301211) Cradle Antenna 6V / 2.5A Connector 20’ RG6 coax cable (971129) (Not included with some models) 311141-0620...
  • Page 4: Find The Strongest Signal

    Rotate in small Find the Strongest Cellular Signal increments Before you install your Home 3G signal booster, you must determine the location of the best available cellular signal. This will affect the location of your Outside Antenna and will help you get the best performance strongest signal outside your building, typically at the highest point available, using d.
  • Page 5: Quick Install - Inside Window Mount Option

    Quick Install - Inside Window Insert the Outside Antenna into the cradle. Mount Option Additional installation options on pg. 6-9 Find the Strongest Cellular Signal (See page 4 for suggested methods.) Ready to Install Inside Window Mount Select a location on the inside of a window as high as possible and at least 20 feet from where the Home 3G will be located.
  • Page 6: Installation Options

    #901117. Install the pole in the desired location. Using the hardware in Packet A, insert the U-bolt through the holes in the Outside Antenna.
  • Page 7: Additional Considerations

    (ties not provided). Always turn the Outside Antenna so the Rafter Mount weBoost logo is toward the strongest cellular signal. The strength of the Select a location in the building’s rafters signal at the Desktop Antenna (and...
  • Page 8: Home 3G And Desktop Antenna Placement

    Wire Keep the Home 3G and the Desktop Antenna at least 18 inches away Home 3G and Desktop Antenna from each other with the weBoost Placement logo on the Desktop Antenna facing away from the Home 3G. Important notice: Connect your Home...
  • Page 9: Troubleshooting & Understanding Lights

    MHz bands). Each indicator light will the coverage of the booster is too either be green, orange or red. small with a green/red blinking light indicating reduced gain, contact the weBoost Customer Support Team for assistance: 800-501-3153. Band 5 Band 25/2 Fixing Orange Light Issues...
  • Page 10: Additional Faq

    The best way to keep these spheres of weBoost Customer Support Team for signal from creating noise is to maintain assistance: 800-501-3153. separation between your inside and Outside Antennas.
  • Page 11 75 Ohm Outside Antenna Kits Kit 311135-5820 • 50 Ohm Wall mount Panel Antenna Kit 301111-0675 • 20’ RG58 Cable • Yagi Directional Antenna Kit 311155-40060 • 75’ RG6 Cable • 50 Ohm Wall Mount Panel Antenna • N-Male to F-Female adapter •...
  • Page 12: Safety Guidelines

    This device complies with Part 15 of FCC rules. Operation is subject to two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modifications not expressly approved by weBoost could void the authority to operate this equipment.
  • Page 13: Signal Booster Specifications

    Signal Booster Specifications Home 3G™ Model Number 473005 Connectors F-Female / SMA-Female Antenna Impedance (inside / outside) 50 Ohms / 75 Ohms Frequency 824-894 MHz / 1850-1990 MHz 800 MHz, Band 5 1900 MHz, Band 2 Passband Gain (nominal) 60.3 60.4 800 MHz, Band 5 1900 MHz, Band 2...
  • Page 14: Guarantee And Warranty

    The information provided by weBoost, is believed to be complete and accurate. However, no responsibility is assumed by weBoost, for any business or personal losses arising from its use, or for any infringements of patents or other rights of third parties that may result from its use.
