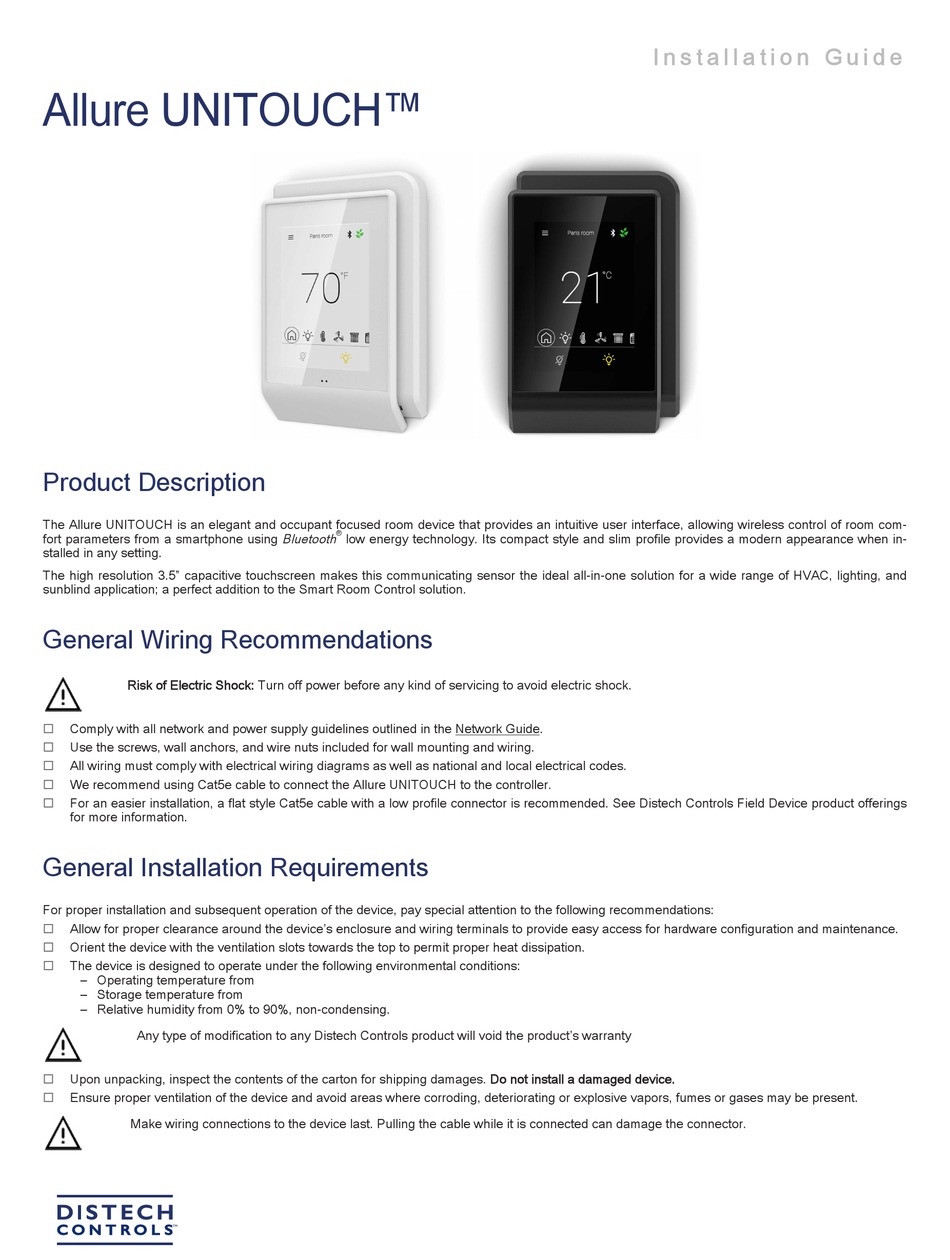

Allure UNITOUCH™

Product Description

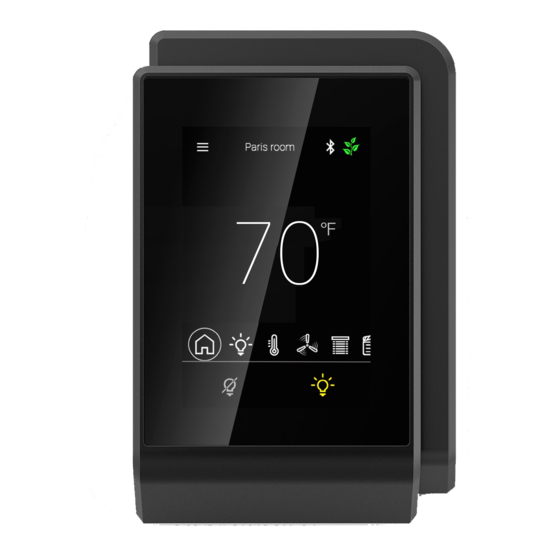

The Allure UNITOUCH is an elegant and occupant focused room device that provides an intuitive user interface, allowing wireless control of room com-
fort parameters from a smartphone using Bluetooth
stalled in any setting.
The high resolution 3.5" capacitive touchscreen makes this communicating sensor the ideal all-in-one solution for a wide range of HVAC, lighting, and
sunblind application; a perfect addition to the Smart Room Control solution.

General Wiring Recommendations

Risk of Electric Shock: Turn off power before any kind of servicing to avoid electric shock.
£ Comply with all network and power supply guidelines outlined in the Network Guide.
£ Use the screws, wall anchors, and wire nuts included for wall mounting and wiring.
£ All wiring must comply with electrical wiring diagrams as well as national and local electrical codes.
£ We recommend using Cat5e cable to connect the Allure UNITOUCH to the controller.
£ For an easier installation, a flat style Cat5e cable with a low profile connector is recommended. See Distech Controls Field Device product offerings
for more information.

General Installation Requirements

For proper installation and subsequent operation of the device, pay special attention to the following recommendations:
£ Allow for proper clearance around the device's enclosure and wiring terminals to provide easy access for hardware configuration and maintenance.
£ Orient the device with the ventilation slots towards the top to permit proper heat dissipation.
£ The device is designed to operate under the following environmental conditions:
– Operating temperature from
– Storage temperature from
– Relative humidity from 0% to 90%, non-condensing.
Any type of modification to any Distech Controls product will void the product's warranty
£
Upon unpacking, inspect the contents of the carton for shipping damages. Do not install a damaged device.
£
Ensure proper ventilation of the device and avoid areas where corroding, deteriorating or explosive vapors, fumes or gases may be present.
Make wiring connections to the device last. Pulling the cable while it is connected can damage the connector.
®
low energy technology. Its compact style and slim profile provides a modern appearance when in-
